Investigation into Damage of Stainless Steel Mesh/ALPlate Multi-Shock Shield under Hypervelocity AL-Spheres Impact

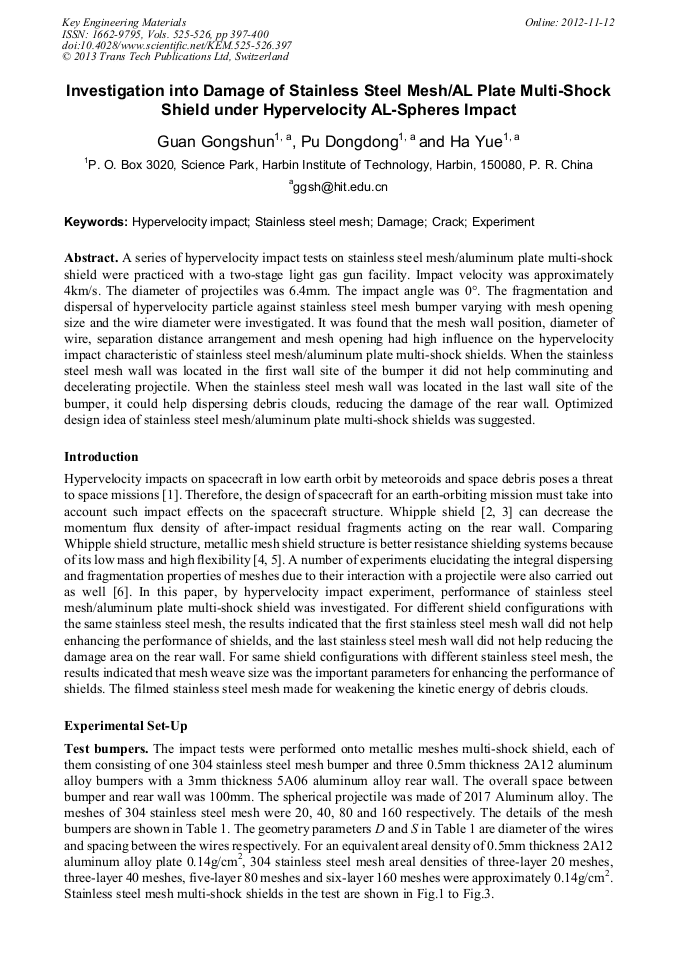

Article Preview

Abstract:

A series of hypervelocity impact tests on stainless steel mesh/aluminum plate multi-shock shield were practiced with a two-stage light gas gun facility. Impact velocity was approximately 4km/s. The diameter of projectiles was 6.4mm. The impact angle was 0°. The fragmentation and dispersal of hypervelocity particle against stainless steel mesh bumper varying with mesh opening size and the wire diameter were investigated. It was found that the mesh wall position, diameter of wire, separation distance arrangement and mesh opening had high influence on the hypervelocity impact characteristic of stainless steel mesh/aluminum plate multi-shock shields. When the stainless steel mesh wall was located in the first wall site of the bumper it did not help comminuting and decelerating projectile. When the stainless steel mesh wall was located in the last wall site of the bumper, it could help dispersing debris clouds, reducing the damage of the rear wall. Optimized design idea of stainless steel mesh/aluminum plate multi-shock shields was suggested.

You might also be interested in these eBooks
Advances in Fracture and Damage Mechanics XI View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 525-526)

Pages:

397-400

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.525-526.397

Citation:

Cite this paper

Online since:

November 2012

Authors:

Gong Shun Guan, Dong Dong Pu, Yue Ha

Keywords:

Crack, Damage, Experiment, Hypervelocity Impact, Stainless Steel Mesh

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] P. P. Bernhard, E. L. Christiansen and J. L. Crews: Int. J. Impact Eng. Vol. 17(1995), p.57.

Google Scholar

[2] W. Schonberg and J. E. Williamsen: Int. J. Impact Eng. Vol. 20(1997), p.711.

Google Scholar

[3] G. S. Guan, B. J. Pang, W. Zhang and Y. Ha: Int. J. Impact Eng. Vol. 35(2008), p.1541.

Google Scholar

[4] N. N. Myagkov, V. A. Goloveshkin, and A. V. Sulimov: Int. J. Impact Eng. Vol. 36(2009), p.468.

Google Scholar

[5] M. Higashide, M. Tanakab and Y. Akahoshi: Int. J. Impact Eng. Vol. 33(2006), p.335.

Google Scholar

[6] F. Horz, M. J. Cintala, R. P. Bernhard and T. H. See: Int J Impact Eng. Vol. 17(1995), p.431.

Google Scholar
