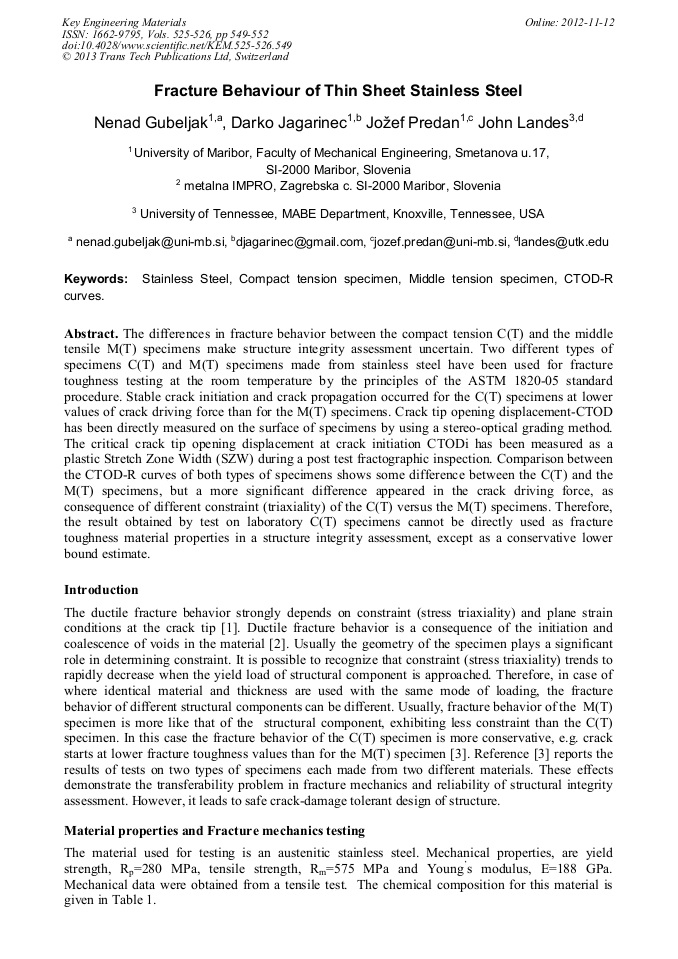

Fracture Behaviour of Thin Sheet Stainless Steel

Abstract:

The differences in fracture behavior between the compact tension C(T) and the middle tensile M(T) specimens make structure integrity assessment uncertain. Two different types of specimens C(T) and M(T) specimens made from stainless steel have been used for fracture toughness testing at the room temperature by the principles of the ASTM 1820-05 standard procedure. Stable crack initiation and crack propagation occurred for the C(T) specimens at lower values of crack driving force than for the M(T) specimens. Crack tip opening displacement-CTOD has been directly measured on the surface of specimens by using a stereo-optical grading method. The critical crack tip opening displacement at crack initiation CTODi has been measured as a plastic Stretch Zone Width (SZW) during a post test fractographic inspection. Comparison between the CTOD-R curves of both types of specimens shows some difference between the C(T) and the M(T) specimens, but a more significant difference appeared in the crack driving force, as consequence of different constraint (triaxiality) of the C(T) versus the M(T) specimens. Therefore, the result obtained by test on laboratory C(T) specimens cannot be directly used as fracture toughness material properties in a structure integrity assessment, except as a conservative lower bound estimate.

• Periodical: Key Engineering Materials (Volumes 525-526)
• Pages: 549-552
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.525-526.549
• Online since: November 2012
• Authors: Nenad Gubeljak, Darko Jagarinec, Jožef Predan, John Landes
• Keywords: Compact Tension Specimen, CTOD-R Curves, Middle Tension Specimen, Stainless Steel (SS)

References

[1] Zerbst U., Schwalbe K. -H., Ainsworth R.A., »An Overview of Failure Assessment Methods in Code Band Standards«, Volume 7, Practical Failure Assessment Methods, Elsevier Ltd., 2003, pp.1-48.

DOI: 10.1016/b0-08-043749-4/07053-1

[2] Anderson, T.L.: Fracture Mechanics Fundamentals and Applications, Second edition (1994).

[3] Zerbst U., Hamann R., Wohlschlegel A., »Application of the European Flaw Assessment Procedure SINTAP to pipes«, Int. J. of Pressure Vessels and Piping, Vol. 77 (2000) pp.697-702.

DOI: 10.1016/s0308-0161(00)00059-4

[4] ASTM E 1820-01. Standard Test Method for Measurement of Fracture Toughness. ASTM International: Metals-Mechanical Testing, Volume 03. 01. (2004).

[5] GKSS-Forschungszentrum Geesthacht (1991) GKSS-Displacement Gauge Systems for Application in Fracture Mechanics.

DOI: 10.1007/978-3-642-82818-8

[6] ARAMIS GOM GmbH, www. gom. com.

[7] N. Gubeljak, M.D. Chapetti, J. Predan, J. D. Landes. CTOD-R curve construction from surface displacement measurements, Engineering Fracture Mechanics, Vol. 78, Issue 11, pp.2286-2297.

DOI: 10.1016/j.engfracmech.2011.05.002

[8] ABAQUS solver 6. 11. www. abaqus. com.
