Tribological Peculiarity of Galling Position in Square Cup Drawing

Abstract:

The high tensile steel sheet attracts attention in recent years. Galling occurs easily in the press forming processes of the high tensile steel sheet because of the high contact pressure. However, the galling behavior can’t be predicted in the forming process yet. The object of this study is to clarify the galling mechanism and develop a prediction method of galling behavior in press forming. Experiments were carried out to investigate the galling behavior in the square cup drawing of a high tensile strength steel sheet. On the die surface, galling occurs at the bottom of the boundary between the straight and corner. On the drawn cup galling starts at the top of the same boundary. The variations of contact pressure, sliding distance and temperature were investigated by using FEM. It was found that galling occurs on the sheet surface position having the history of maximum temperature and at the moment just before sliding out from the die.

You might also be interested in these eBooks

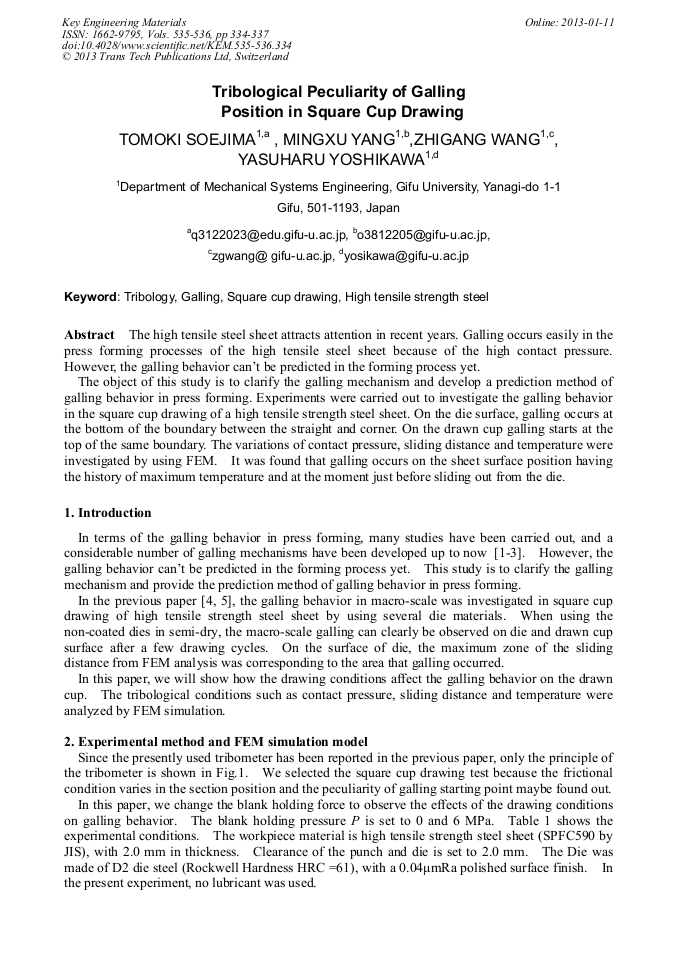

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 535-536)

Pages:

334-337

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.535-536.334

Citation:

Cite this paper

Online since:

January 2013

Authors:

Tomoki Soejima, Ming Xu Yang, Zhi Gang Wang, Yasuharu Yoshikawa

Keywords:

Galling, High Tensile Strength Steel, Square Cup Drawing, Tribology

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] N. Nakamura: Journal of the JSTP, Vol. 24-265 (1983), p.100

Google Scholar

[2] N. Nakamura, K. Kato and N. Matsui: Transactions of the JSME Ser. C, Vol.52-473 (1986), p.163

Google Scholar

[3] K. Kubota, S. Komatsubara, T. Ogihara, M. Narumi and M. Yamaoka: Hitachi Metals Technical Review. Vol. 21 (2005), p.45. Information on http//www.hitachi-metals.co.jp/rad/rad02.html

Google Scholar

[4] Z. Wang, H. Kubota, D. Xue, Q. Lin and M. Okamura: Journal of the JSTP, Vol.47-549(2006), p.988

Google Scholar

[5] Z. Wang, K.Tanabe, M.Yang, Y.Yoshikawa: The proceeding of the 61th Japanese joint conference for the technology of plasticity, p.189.

Google Scholar
