Aspheric Far-Infrared Lenses Based on Hot-Moldable Chalcogenide Glass

Abstract:

The far infrared lenses are widely used in vehicle and night vision instrument. A new far infrared lens is proposed to enhance their performance of danger recognition at night. It focuses on the infrared light of wavelength from 8µm ~12µm. The lens is based on the uncooled infrared detector with 320x240 pixels. Its main structure is made of one refractive-diffractive aspheric lens and two spherical lenses. To improve the luminous flux, the f-number is set to be less than 1. The field of view (FOV) of 23 degrees is wide enough to help monitor the dangerous signal around the car or community. In addition, in order to reduce the cost and improve the machinability of aspheric diffractive lens, the hot-moldable chalcogenide glass is chosen to be the material of lenses. As a result, the MTF (modulation transfer function) values of lens exceed 0.5 for all field angles at Nyquist frequency. It shows that the lens enjoys high imaging quality.

You might also be interested in these eBooks

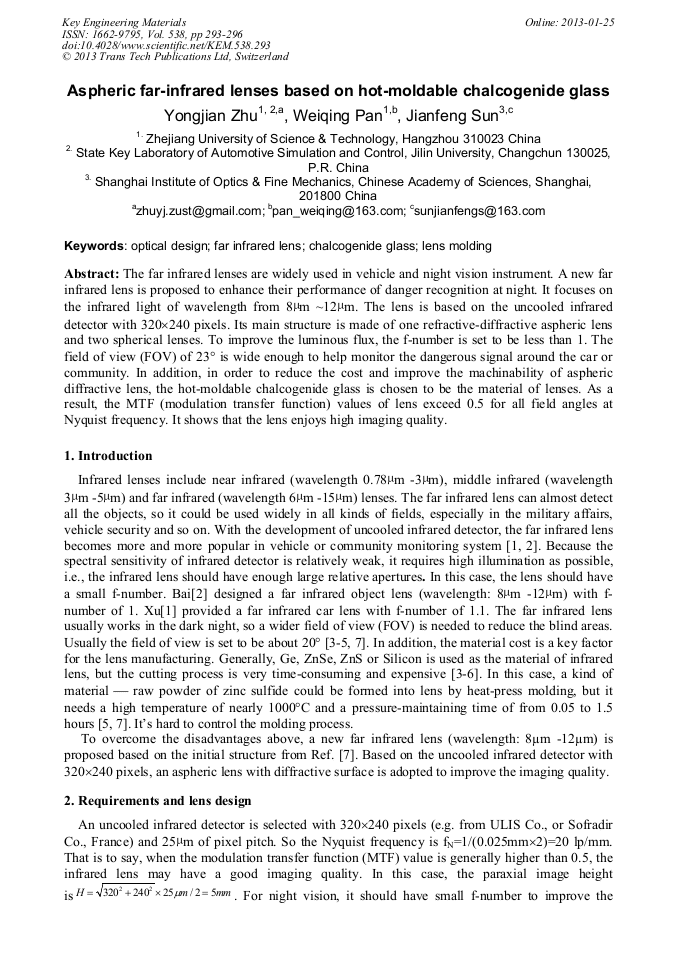

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 538)

Pages:

293-296

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.538.293

Citation:

Cite this paper

Online since:

January 2013

Authors:

Yong Jian Zhu, Wei Qing Pan, Jian Feng Sun

Keywords:

Chalcogenide Glass, Far Infrared Lens, Lens Molding, Optical Design

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D.W. Xu, X. Yang and J. Wang, Design on athermal refractive-diffractive hybrid vehicular infrared lens, Infra. Tech. 33(2011) 460-464.

Google Scholar

[2] B. Yu, J.F. Yang and X.J. Li, Refractive diffractive infrared lenses for un-cooled infrared detector, Electro-Optic Tech. Appl. 23(2008) 28-30.

Google Scholar

[3] F. Watanabe, U.S. Patent 6,507,432. (2000)

Google Scholar

[4] S.Y. Zhang, U.S. Patent 5,940,224. (1998)

Google Scholar

[5] T. Izumi, U.S. Patent 7,835,071B2. (2008)

Google Scholar

[6] L. Canzek, U.S. Patent 4,738,496. (1986)

Google Scholar

[7] T.Izumi, C. Hiraiwa, U.S. Patent 7,911,688B2. (2011)

Google Scholar

[8] D.H. Cha and H.J. Kim, Effect of temperature on the molding of chalcogenide glass lenses for infrared imaging applications, Appl. Opt. 49(2010) 1607-1613.

DOI: 10.1364/ao.49.001607

Google Scholar

[9] J. Rollin, U.S. Patent 5,202,792.(1993)

Google Scholar

[10] L.R. Gang, L. Liu and X.D. Zhang, Design and fabrication of mid-wave infrared lenses with athermalization, Laser & Infrared. 40(2010) 653-655.

Google Scholar

[11] Information on http://www.us.schott.com/advanced_optics

Google Scholar
