For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
The Preparation and Pozzolanic Activity of Metakaolin Admixtures
p.230
Influence of Steel Slag on the Workability of Concrete
p.235
Study on the Influence Factors of the Dispersion of Carbon Nanotubes in Aqueous Solution
p.239
Properties of Cement Mortars Mixed with SiO2 and CaCO3 Nanoparticles
p.244
Alkali Activity of Granite Aggregates and Control in the Concrete of the Three Gorges Project
p.249
Preparation of AgBr Nanowire Arrays in Porous Anodic Aluminium Oxide Template by Paired Cell Deposition
p.255
Influence and Mechanisms of In Situ Toughening Telechelic Polymer on the Microstructure of Concrete
p.259
Research on the Application of Liquid Permeating Method to Silica Sol Stability
p.266
Environmentally Friendly Cellular Concrete for Wall Insulation
p.271

Preparation of AgBr Nanowire Arrays in Porous Anodic Aluminium Oxide Template by Paired Cell Deposition

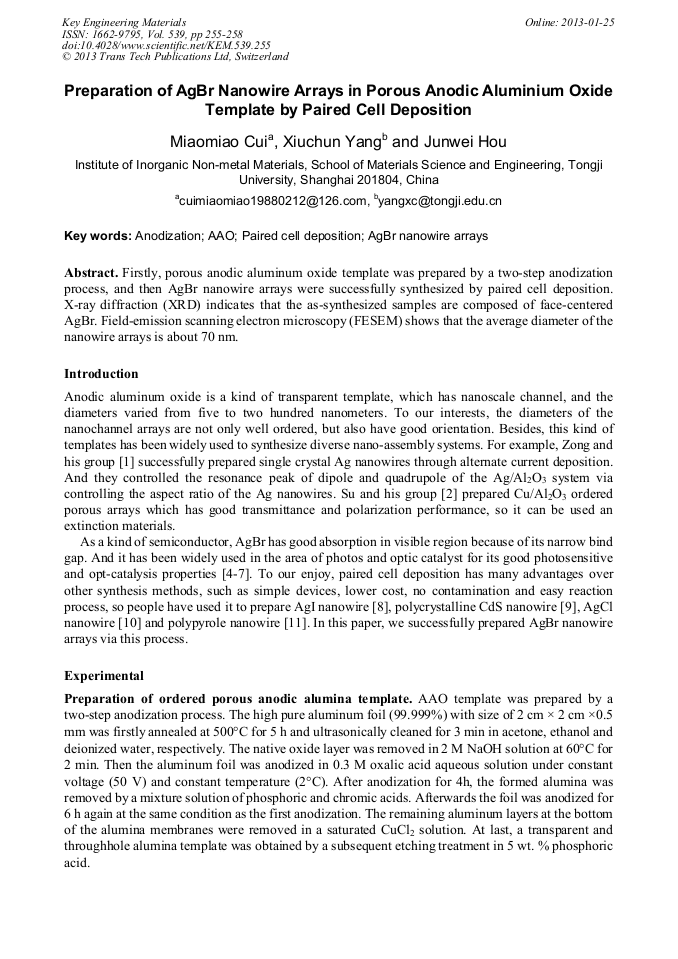

Article Preview

Abstract:

Firstly, porous anodic aluminum oxide template was prepared by a two-step anodization process, then AgBr nanowire arrays were successfully synthesized by paired cell deposition. X-ray diffraction (XRD) indicates that the as-synthesized samples are composed of face-centered AgBr. Field-emission scanning electron microscopy (FESEM) shows that the average diameter of the nanowire arrays is about 70nm.

You might also be interested in these eBooks
Testing and Evaluation of Advanced Building Materials View Preview

Info:

Periodical:

Key Engineering Materials (Volume 539)

Pages:

255-258

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.539.255

Citation:

Cite this paper

Online since:

January 2013

Authors:

Miao Miao Cui, Xiu Chun Yang, Jun Wei Hou

Keywords:

AAO, AgBr Nanowire Arrays, Anodization, Paired Cell Deposition

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] R. L. Zong, J. Zhou, Q. Li, et al. J. Phys. Chem. B, 2004, 108:16713-16716

Google Scholar

[2] X. J. Su, S. L. Li, L. C. Zhang. Ordnance Material Science and Engineering, 2009, 32(2):12-14

Google Scholar

[3] R. H. Victora. Phys Rev B, 1997, 56:4417–4421

Google Scholar

[4] H. F. Cheng, B. B. Huang, Y. Dai, et al. Langmuir, 2010, 26:6618–6624

Google Scholar

[5] X. F. Zhou, C. Hu, X. X. Hu, et al. J Phys Chem C, 2010, 114:2746–2750

Google Scholar

[6] M. A. Asi, C. He, M. H. Su, et al. Catal Today, 2011, 175: 256–263

Google Scholar

[7] J. Cao, B. D. Luo, H. L. Lin, et al. J Hazard Mater, 2011, 190:700–706

Google Scholar

[8] Y. Z. Piao, H. C. Lim, J. Y. Chang. Chem Commun, 2003, 2898–2899

Google Scholar

[9] Y. Zhao, X. C. Yang, Huang W H, et al. J Mater Sci, 2010, 45:1803–1808

Google Scholar

[10] C. H. Sun, P. Chen, S. Y. Zhou. Mater Lett, 2007, 61:1645–1648

Google Scholar

[11] F. L. Cheng, M. L. Zhang, H. Wang. Sensors, 2005, 5:245–249

Google Scholar

[12] X Wang, G. R. Han. Microelectron Eng, 2003, 66,166–170

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
