Opto-Mechanical Structure Design of the Image Stabilization Collimator

Abstract:

The collimator has an extensive application as an experiment equipment that can provide an infinity goal in the instrument alignment and testing.This paper provides a new type of collimator with image stabilization function in consideration of human disturbance factors, including environment micro-vibration and so on. Liquid surface which appears natural level under gravity imaging optical path of collimator can emerge through liquid refraction and reflex later. And we should make use of this phenomenon. Mathematical modeling and analysis on the principle of dynamic imaging of the liquid wedge have been made to design several optical principle charts of the collimator with image stabilization function.One of the image stabilization optical principle structure styles has been designed based on its mechanical structure.An experiment prototype is produced and is made more practical.

You might also be interested in these eBooks

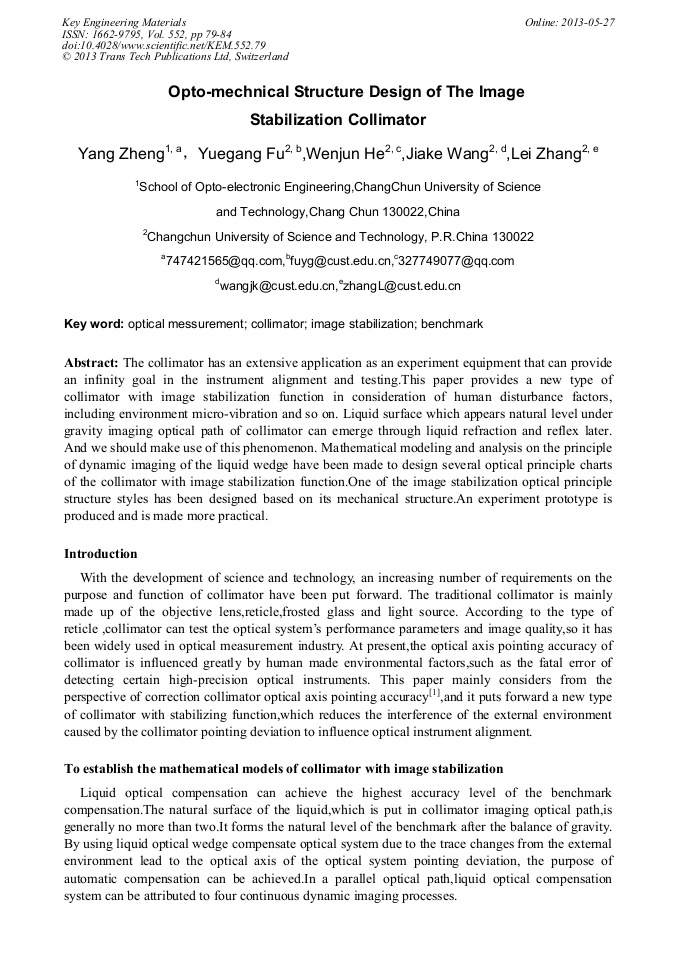

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 552)

Pages:

79-84

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.552.79

Citation:

Cite this paper

Online since:

May 2013

Authors:

Yang Zheng, Yue Gang Fu, Wen Jun He, Jia Ke Wang, Lei Zhang

Keywords:

Benchmark, Collimator, Image Stabilization, Optical Messurement

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Zhu Huazheng,FAN Da-peng,MA Dong-xi. Study on LOS stabilization accuracy of optoelectronic imaging system on moving carrier[J]. Journal of Applied Optics, 2009, 4: 26~30

Google Scholar

[2] Zheng Jianping,Wang peng. Broad Optical Stabilized Image[C].SPIE The International Society for Optical Engineering. 1994, 2321: 534~535.

Google Scholar

[3] Zheng Yang,Yu ling,He Wenjun, et al. Research on optical structure of liquid optics directional compensation[J]. Journal of Dalian University of Technolngy, 2011, 51(S1): S45~S4

Google Scholar

[4] Zhang Lei,Zheng Yang,He Wenjun,et al. Research on automatic directional benchmark based on liquid optical compensation[J]. Journal of Applied Optics,(2012)

Google Scholar

[5] Jia Minqiang,Liu Haibo, Fu Huiqing. On method for realizing plumb [J]. HYPERLINK "http://192.168.14.9/KNS50/Navi/Bridge.aspx?LinkType=BaseLink&DBCode=cjfd&TableName=cjfdbaseinfo&Field=BaseID&Value=DKXB&NaviLink=%e5%a4%a7%e5%9c%b0%e6%b5%8b%e9%87%8f%e4%b8%8e%e5%9c%b0%e7%90%83%e5%8a%a8%e5%8a%9b%e5%ad%a6" \t "_blank" Journal of Geodesy and Geodynamics, 2007, 27(S1):139~141

Google Scholar
