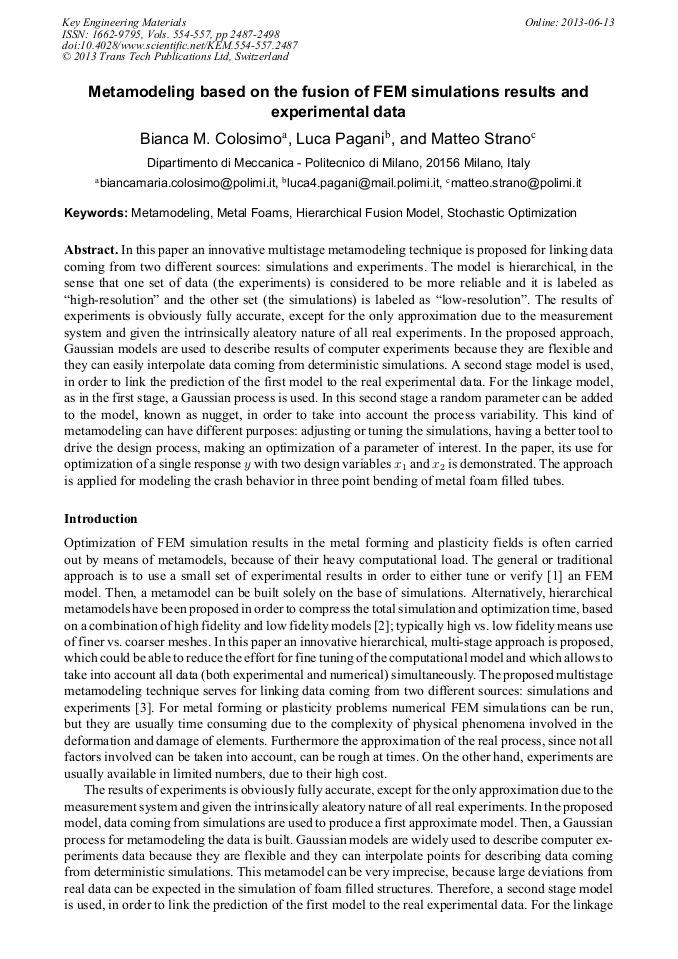

Metamodeling Based on the Fusion of FEM Simulations Results and Experimental Data

Abstract:

In this Paper an Innovative Multistage Metamodeling Technique is Proposed for Linking Datacoming from Two Different Sources: Simulations and Experiments. the Model is Hierarchical, in Thesense that One Set of Data (the Experiments) is Considered to be more Reliable and it is Labeled as“high-Resolution” and the other Set (the Simulations) is Labeled as “low-Resolution”. the Results Ofexperiments is Obviously Fully Accurate, Except for the only Approximation due to the Measurementsystem and Given the Intrinsically Aleatory Nature of all Real Experiments. in the Proposed Approach,Gaussian Models are Used to Describe Results of Computer Experiments because they are Flexible Andthey can Easily Interpolate Data Coming from Deterministic Simulations. A Second Stage Model is Used,in Order to Link the Prediction of the First Model to the Real Experimental Data. for the Linkage Model,as in the First Stage, a Gaussian Process is Used. in this Second Stage a Random Parameter can be Addedto the Model, Known as Nugget, in Order to take into Account the Process Variability. this Kind Ofmetamodeling can have Different Purposes: Adjusting or Tuning the Simulations, Having a Better Tool Todrive the Design Process, Making an Optimization of a Parameter of Interest. in the Paper, its use Foroptimization of a Single Responsey with Two Design Variables x1 and x2 is Demonstrated. the Approachis Applied for Modeling the Crash Behavior in Three Point Bending of Metal Foam Filled Tubes.

• Periodical: Key Engineering Materials (Volumes 554-557)
• Pages: 2487-2498
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.554-557.2487
• Online since: June 2013
• Authors: Bianca Maria Colosimo, Luca Pagani, Matteo Strano
• Keywords: Hierarchical Fusion Model, Metal Foams, Metamodeling, Stochastic Optimization

References

[1] J. H. Wiebenga, A. H. Boogaard and G. Klaseboer. "Sequential robust optimization of a V- bending process using numerical simulations''. In: Structural and Multidisciplinary Optimiza- tion 46 (2012), pp.137-156.

DOI: 10.1007/s00158-012-0761-0

[2] R. Hino, F. Yoshida and V.V. Toropov. "Optimum blank design for sheet metal forming based on the interaction of high- and low-fidelity FE models''. In: Archive of Applied Mechanics 75 (2006), pp.679-691.

DOI: 10.1007/s00419-006-0047-3

[3] Z. Qian, C.C. Seepersad, V.R. Joseph, J.K. Allen, C.F.J. Wu. "Building Surrogate Models Based on Detailed and Approximate Simulations''. In: ASME Journal of Mechanical Design 128 (2006), pp.668-677.

DOI: 10.1115/1.2179459

[4] T.J. Santner, B.J. Williams, W.I. Notz. The Design and Analysis of Computer Experiments. Springer-Verlang, 2003.

[5] B. M. Colosimo, M. Pacella. "On integrating multisensor data for quality''. In: 10th A.I.Te.M. Conference Enhancing the Science of Manufacturing. 2011.

[6] H. Xia, Y. Yu Din, B.K. Mallick. "Bayesian hierarchical model for combining misaligned tworesolution metrology data''. In: IIE Transactions 43 (2011), pp.242-258.

DOI: 10.1080/0740817x.2010.521804

[7] O. Shabenberger, C. A. Gotway. Statistical Methods for Spatial Data Analysis. Chapman and Hall/CRC, 2005.

[8] L. Pagani. "MultisensorData Fusion forQuality Inspection of Free-FormSurfaces''.MAthesis. Politecnico di Milano, (2011)

[9] D. A. Harville. "Maximum likelihood approches to variance component estimation and to related problems''. In: Journal of the American Statistical Association 72 (1977), pp.320-338.

DOI: 10.1080/01621459.1977.10480998

[10] D. Jones, D.R. Schonlau, Matthias Welch W.J. "Efficient global optimization of expensive blackbox functions''. In: Journal of Global optimization 13 (1998), pp.455-492.

DOI: 10.1023/a:1008306431147

[11] J. Mockus, V. Tiesis, A. Zilinskas. "The application of Bayesian methods for seeking the extremum''. In: Towards Global Optimization. 1978.

[12] U. Zsolt, L. Lasdon, J. Plummer, F. Glover, J. Kelly, and R. Martí. "Scatter Search and Local NLP Solvers: A Multistart Framework for Global Optimization''. In: Journal on Computing 19 (2007), pp.328-340.

DOI: 10.1287/ijoc.1060.0175

[13] M. Strano. "A New FEM Approach for Simulation of Metal Foam Filled Tubes''. In: Journal of Manufacturing Science and Engineering 133 (2011), pp.1-11.

DOI: 10.1115/1.4005354

[14] M. Strano, V. Mussi, and M. Monno. "Non-conventional technologies for the manufacturing of anti-intrusion bars''. In: International Journal of Material Forming 3 (2010), pp.1111-1114.

DOI: 10.1007/s12289-010-0966-y
