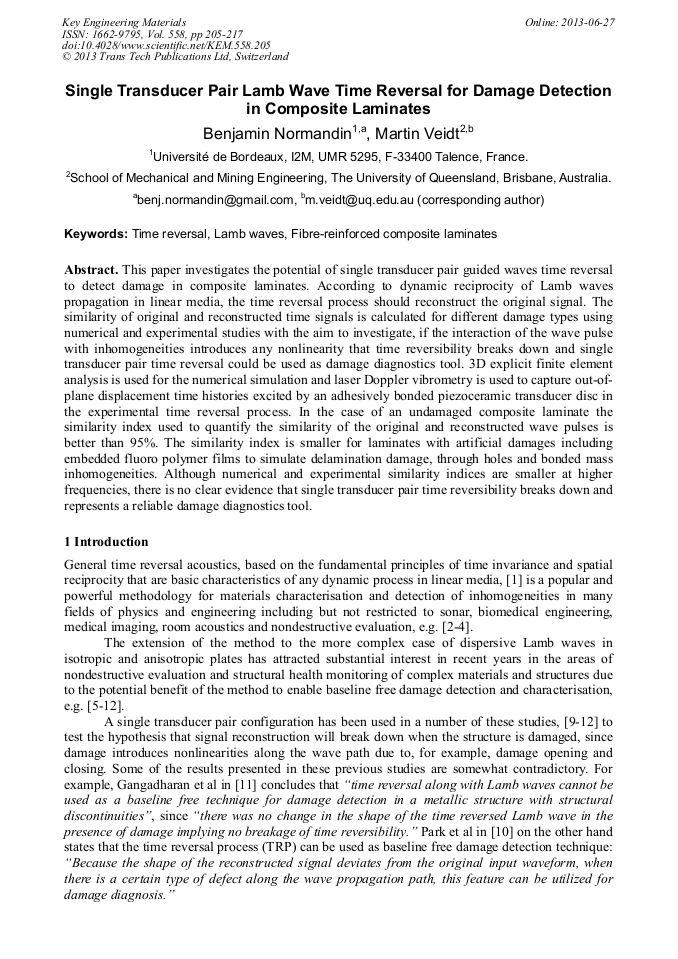

Single Transducer Pair Lamb Wave Time Reversal for Damage Detection in Composite Laminates

Abstract:

This paper investigates the potential of single transducer pair guided waves time reversal to detect damage in composite laminates. According to dynamic reciprocity of Lamb waves propagation in linear media, the time reversal process should reconstruct the original signal. The similarity of original and reconstructed time signals is calculated for different damage types using numerical and experimental studies with the aim to investigate, if the interaction of the wave pulse with inhomogeneities introduces any nonlinearity that time reversibility breaks down and single transducer pair time reversal could be used as damage diagnostics tool. 3D explicit finite element analysis is used for the numerical simulation and laser Doppler vibrometry is used to capture out-of-plane displacement time histories excited by an adhesively bonded piezoceramic transducer disc in the experimental time reversal process. In the case of an undamaged composite laminate the similarity index used to quantify the similarity of the original and reconstructed wave pulses is better than 95%. The similarity index is smaller for laminates with artificial damages including embedded fluoro polymer films to simulate delamination damage, through holes and bonded mass inhomogeneities. Although numerical and experimental similarity indices are smaller at higher frequencies, there is no clear evidence that single transducer pair time reversibility breaks down and represents a reliable damage diagnostics tool.

• Periodical: Key Engineering Materials (Volume 558)
• Pages: 205-217
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.558.205
• Online since: June 2013
• Authors: Benjamin Normandin, Martin Veidt
• Keywords: Fibre-Reinforced Composite Laminates, Lamb Wave, Time Reversal

References

[1] Achenbach J.D. 2003. Reciprocity in Elastodynamics (Cambridge Monographs on Mechanics), Cambridge University Press, Cambridge, UK.

DOI: 10.1007/s00024-009-0473-6

[2] Fink M. 1999. Time-reversed acoustics, Scientific American 281:91-113.

[3] Fink M. Montaldo G. Tanter M. 2003. Time-reversal acoustics in biomedical engineering, Annual Review of Biomedical Engineering 5:465–497.

DOI: 10.1146/annurev.bioeng.5.040202.121630

[4] Edelmann G. Song H.C. Kim S. Hodgkiss W.S. Kuperman W.A. Akal T. 2005. Underwater acoustic communication using time reversal, IEEE Journal of Oceanic Engineering 30:852-864.

DOI: 10.1109/joe.2005.862137

[5] Ing R.K. Fink M. 1996. Time recompression of dispersive Lamb waves using a time reversal mirror–application to flaw detection in thin plates, IEEE Ultrasonic Symposium 1:659-663.

DOI: 10.1109/ultsym.1996.584061

[6] Wang C.H. Rose J.T. Chang F.-K. 2004. A synthetic time-reversal imaging method for structural health monitoring, Smart Materials and Structures 13:415-23.

DOI: 10.1088/0964-1726/13/2/020

[7] Sohn H. Park H.W. Law K.H. Farrar C.R. 2007. Damage detection in composite plates by using an enhanced time reversal method, Journal of Aerospace Engineering 20:141-151.

DOI: 10.1061/(asce)0893-1321(2007)20:3(141)

[8] Xu B. Giurgiutiu V. 2007. Single mode tuning effects on Lamb wave time reversal with piezoelectric wafer active sensors for structural health monitoring, Journal of Nondestructive Evaluation 26:123-134.

DOI: 10.1007/s10921-007-0027-8

[9] Sohn H. Park H.W. Law K.H. Farrar C.R. 2007. Combination of a time reversal process and a consecutive outlier analysis for baseline-free damage diagnosis, Journal of Intelligent Material Systems and Structures 18:335-46.

DOI: 10.1177/1045389x06066291

[10] Park H.W. Kim S.B. Sohn H. 2009. Understanding a time reversal process in Lamb wave propagation, Wave Motion 46:451-467.

DOI: 10.1016/j.wavemoti.2009.04.004

[11] Gangadharan R. Murthy C.R.L. Gopalakrishnan S. Bhat M.R. 2009. Time reversal technique for health monitoring of metallic structure using Lamb waves, Ultrasonics 49:696-705.

DOI: 10.1016/j.ultras.2009.05.002

[12] Gangadharan R. Murthy C.R.L. Gopalakrishnan S. Bhat M.R. 2011. Time reversal health monitoring of composite plates using Lamb waves, International Journal of Aerospace Innovations 3:131-142.

DOI: 10.1260/1757-2258.3.3.131

[13] Davies G.A.O. Olsson R. 2004. Impact on composite structures, The Aeronautical Journal 108: 541-563.

[14] Chamis C.C. 1984. Mechanics of composite materials: Past, present, and future, Journal of Composites Technology and Research 11:3-14.

[15] Rose J.L. 1999. Ultrasonic Waves in Solid Media, Cambridge University Press, Cambridge, UK.

[16] Veidt M. Ng C.T. 2011. Influence of stacking sequence on scattering characteristics of the fundamental anti-symmetric Lamb wave at through holes in composite laminates, Journal of the Acoustical Society of America, 129:1280-1287.

DOI: 10.1121/1.3533742

[17] Ng C.T. Veidt M. 2011. Scattering of the fundamental anti-symmetric Lamb wave at delaminations in composite laminates, Journal of the Acoustical Society of America, 129:1288-1296.

DOI: 10.1121/1.3533741

[18] Ramadas C. Balasubramaniam K. Joshi M. Krishnamurthy C.V. 2009. Interaction of the primary anti-symmetric Lamb mode (Ao) with symmetric delaminations: Numerical and experimental studies, Smart Materials and Structures, 18:085011.

DOI: 10.1088/0964-1726/18/8/085011
