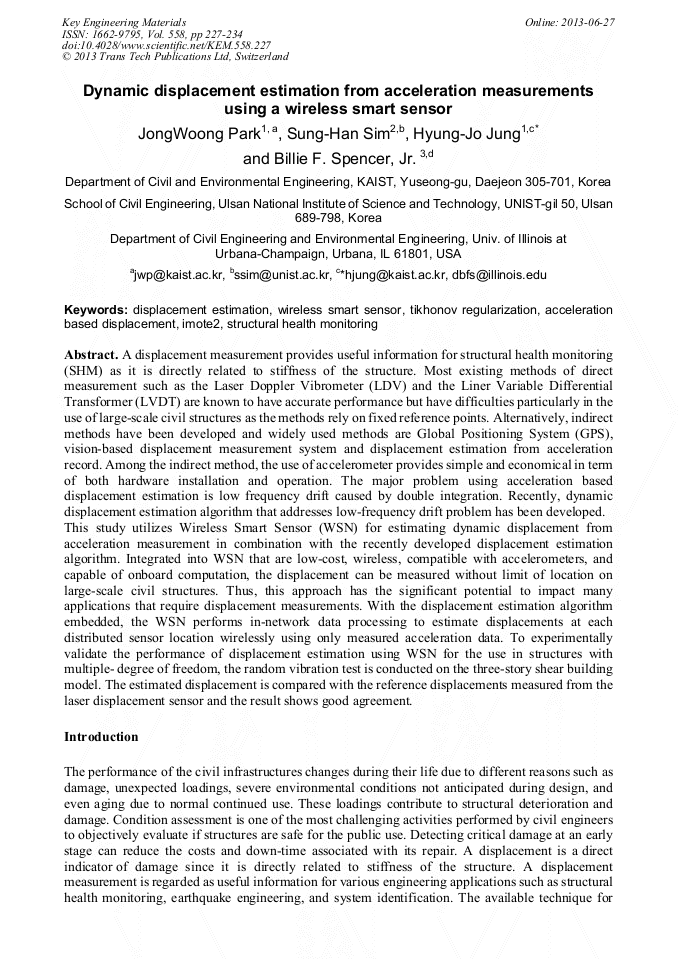

Dynamic Displacement Estimation from Acceleration Measurements Using a Wireless Smart Sensor

Abstract:

A displacement measurement provides useful information for structural health monitoring (SHM) as it is directly related to stiffness of the structure. Most existing methods of direct measurement such as the Laser Doppler Vibrometer (LDV) and the Liner Variable Differential Transformer (LVDT) are known to have accurate performance but have difficulties particularly in the use of large-scale civil structures as the methods rely on fixed reference points. Alternatively, indirect methods have been developed and widely used methods are Global Positioning System (GPS), vision-based displacement measurement system and displacement estimation from acceleration record. Among the indirect method, the use of accelerometer provides simple and economical in term of both hardware installation and operation. The major problem using acceleration based displacement estimation is low frequency drift caused by double integration. Recently, dynamic displacement estimation algorithm that addresses low-frequency drift problem has been developed. This study utilizes Wireless Smart Sensor (WSN) for estimating dynamic displacement from acceleration measurement in combination with the recently developed displacement estimation algorithm. Integrated into WSN that are low-cost, wireless, compatible with accelerometers, and capable of onboard computation, the displacement can be measured without limit of location on large-scale civil structures. Thus, this approach has the significant potential to impact many applications that require displacement measurements. With the displacement estimation algorithm embedded, the WSN performs in-network data processing to estimate displacements at each distributed sensor location wirelessly using only measured acceleration data. To experimentally validate the performance of displacement estimation using WSN for the use in structures with multiple-degree of freedom, the random vibration test is conducted on the three-story shear building model. The estimated displacement is compared with the reference displacements measured from the laser displacement sensor and the result shows good agreement.

• Periodical: Key Engineering Materials (Volume 558)
• Pages: 227-234
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.558.227
• Online since: June 2013
• Authors: Jong Woong Park, Sung Han Sim, Hyung Jo Jung, Billie F. Spencer
• Keywords: Acceleration Based Displacement, Displacement Estimation, Imote2, Structural Health Monitoring (SHM), Tikhonov Regularization, Wireless Smart Sensor

References

[1] K.T. Park, S.H. Kim, H.S. Park and K.W. Lee. The determination of bridge displacement using measured acceleration, Eng Struct. 27 (2005) 371-378.

DOI: 10.1016/j.engstruct.2004.10.013

[2] M. Celebi. GPS in dynamic monitoring of long-period structures, Soil Dyn. Earthq. Eng.20 (2000) 477-483.

[3] H.H. Nassif, M. Gindy and J. Davis. Comparison of laser Doppler vibrometer with contact sensors for monitoring bridge deflection and vibration, NDT&E Int. 38 (2005) 213-218.

DOI: 10.1016/j.ndteint.2004.06.012

[4] J.J. Lee and M. Shinozuka. A vision-based system for remote sensing of bridge displacement, NDT & E Intl. 39 (2006) 425-431.

DOI: 10.1016/j.ndteint.2005.12.003

[5] P. Olaszek. Investigation of the dynamic characteristic of bridge structures using a computer vision method, Measurement 25 (1999) 227-236.

DOI: 10.1016/s0263-2241(99)00006-8

[6] A.M. Wahbeh, J.P. Caffrey and S.F. Masri. A vision-based approach for the direct measurement of displacements in vibrating systems, Smart Mater. Struct. 12 (2003) 785.

DOI: 10.1088/0964-1726/12/5/016

[7] H.S. Lee, Y.H. Hong and H.W. Park. Design of an FIR filter for the displacement reconstruction using measured acceleration in low‐frequency dominant structures, Int. J. Numer. Meth. Eng. 82 (2010) 403-434.

DOI: 10.1002/nme.2769

[8] J.P. Lynch, K.H. Law, A.S. Kiremidjian, E. Carryer, C.R. Farrar, H. Sohn, D.W. Allen, B. Nadler and J.R. Wait. Design and performance validation of a wireless sensing unit for structural monitoring applications, Struct. Eng. Mech. 17 (2004) 393-408.

DOI: 10.12989/sem.2004.17.3_4.393

[9] B. Spencer Jr, T. Nagayama and J.A. Rice. Vol. 6932(2008), p.693202.

[10] E.G. Straser, A.S. Kiremidjian and J.A.B.E.E. Center. (1998) A modular, wireless damage monitoring system for structures. The John A. Blume Earthquake Engineering Center.

[11] S. Cho, J.P. Lynch, J.J. Lee and C.B. Yun. Development of an automated wireless tension force estimation system for cable-stayed bridges, J. Intell. Mater. Syst. Struct. 21 (2010) 361-376.

DOI: 10.1177/1045389x09350719

[12] M.V. Gangone, M.J. Whelan, M.P. Fuchs and K.D. Janoyan. Performance monitoring of a short-span integral-abutment bridge using wireless sensor technology, Sensor Systems and Networks: Phenomena, Technology, and Applications for NDE and Health Monitoring, Proc. of SPIE (2007).

DOI: 10.1117/12.715909

[13] J.P. Lynch, A. Sundararajan, K.H. Law, A.S. Kiremidjian and E. Carryer. Embedding damage detection algorithms in a wireless sensing unit for operational power efficiency, Smart Mater. Struct. 13 (2004) 800.

DOI: 10.1088/0964-1726/13/4/018

[14] J.P. Lynch, Y. Wang, K.J. Loh, J.H. Yi and C.B. Yun. Performance monitoring of the Geumdang Bridge using a dense network of high-resolution wireless sensors, Smart Mater. Struct. 15 (2006) 1561.

DOI: 10.1088/0964-1726/15/6/008

[15] S.N. Pakzad, G.L. Fenves, S. Kim and D.E. Culler. Design and implementation of scalable wireless sensor network for structural monitoring, J. Infrastruct. Syst. 14 (2008) 89.

DOI: 10.1061/(asce)1076-0342(2008)14:1(89)

[16] J.A. Rice, K. Mechitov, S.H. Sim, T. Nagayama, S. Jang, R. Kim, B.F. Spencer Jr, G. Agha and Y. Fujino. Flexible smart sensor framework for autonomous structural health monitoring, Smart Struct. Syst. 6 (2010) 423-438.

DOI: 10.12989/sss.2010.6.5_6.423

[17] Information on http://www.st.com/internet/analog/product/207281.jsp
