Platinum Resistance Microsensor for Cryogenic Temperature Measurement

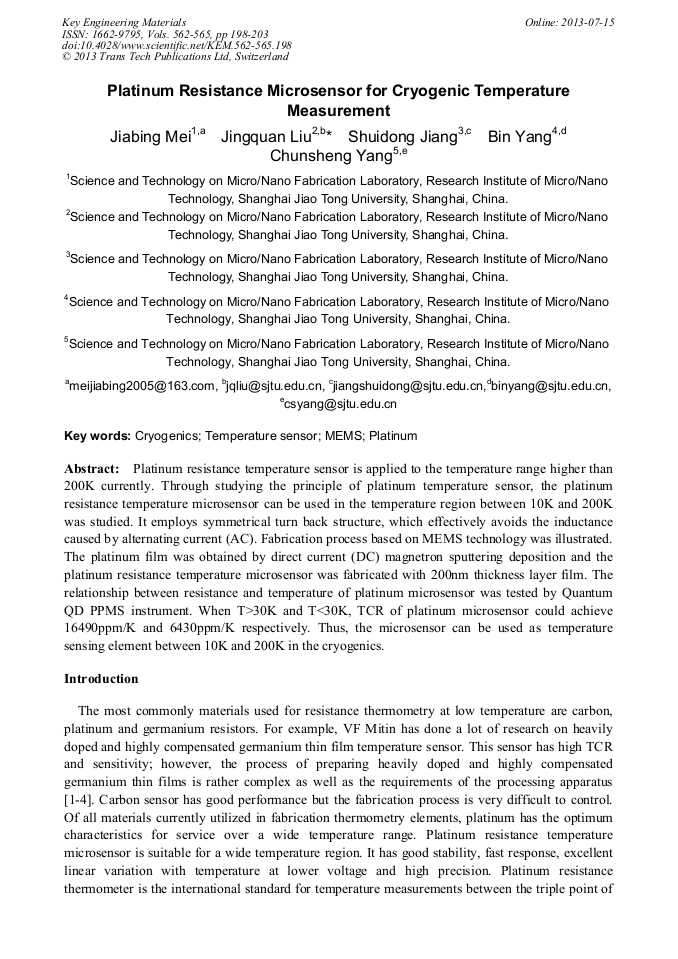

Abstract:

Platinum resistance temperature sensor is applied to the temperature range higher than 200K currently. Through studying the principle of platinum temperature sensor, the platinum resistance temperature microsensor can be used in the temperature region between 10K and 200K was studied. It employs symmetrical turn back structure, which effectively avoids the inductance caused by alternating current (AC). Fabrication process based on MEMS technology was illustrated. The platinum film was obtained by direct current (DC) magnetron sputtering deposition and the platinum resistance temperature microsensor was fabricated with 200nm thickness layer film. The relationship between resistance and temperature of platinum microsensor was tested by Quantum QD PPMS instrument. When T>30K and T<30K, TCR of platinum microsensor could achieve 16490ppm/K and 6430ppm/K respectively. Thus, the microsensor can be used as temperature sensing element between 10K and 200K in the cryogenics.

• Periodical: Key Engineering Materials (Volumes 562-565)
• Pages: 198-203
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.562-565.198
• Online since: July 2013
• Authors: Jia Bing Mei, Jing Quan Liu, Shui Dong Jiang, Bin Yang, Chun Sheng Yang
• Keywords: Cryogenics, MEMS, Platinum, Temperature Sensor

References

[1] V.F. Mitin, Yu.A. Tkhorik and E.F. Venger. All-purpose technology of physical sensors on the base of Ge/GaAs heterostructures Microelectronics Journal 1997,pp.617-625

DOI: 10.1016/s0026-2692(96)00103-6

[2] V.F. Mitin V.V. Kholevchuk, B.P. Kolodych, Ge-on-GaAs film resistance thermometers: Low-temperature conduction and magnetoresistance. Cryogenics 2011,p.68–73

DOI: 10.1016/j.cryogenics.2010.11.003

[3] V. F. Mitin, Heavily doped and fully compensated Ge single-crystalline films on GaAs, APPLIED PHYSICS LETTERS 2008,pp.1-3

DOI: 10.1063/1.2931704

[4] V. F. Mitin, Preparation and properties of heavily doped and strongly compensated Ge films on GaAs, JOURNAL OF APPLIED PHYSICS 2010,pp.1-10

DOI: 10.1063/1.3290967

[5] R. J. Berry, IOPscience, 1967, pp.53-57

[6] M. P. Orlova, D. I. Sharevskaya, D. N. Astrov, I. G. Krutikova, C. R. Barber. and J. G. Hayes, IOPscience, 1966, pp.6-10

[7] V. Hoang, G. Kaigala, C. Backhouse. "Optimization of Thin Film Heater/Sensor Design for Miniature Devices Using Finite Element Analysis," COMSOL Multiphysics User's conference 2005, Boston.

[8] Drago Resnik, D. Vrtačnik, U. Aljančič, M. Možek, B. Pečar, S. Penič, S. Amon. Industrial Electronics, 2009. IECON '09. 35th Annual Conference of IEEE, pp.4014-4019

[9] L. J. Neuringer, A. J. Perlman, L. G. Rubin, and Y. Shapira, Rev. Sci. Instrum. 42, 9,1971, pp.9-14

[10] Donald A,Toenshofff,Jackson Township,Ocean county,N.J,US Patent 1979，NO.4146957

[11] M. D. Henry, S. Walavalkar, A. Homyk, and A. Scherer, Nanotechnology,2009, pp.1-4
