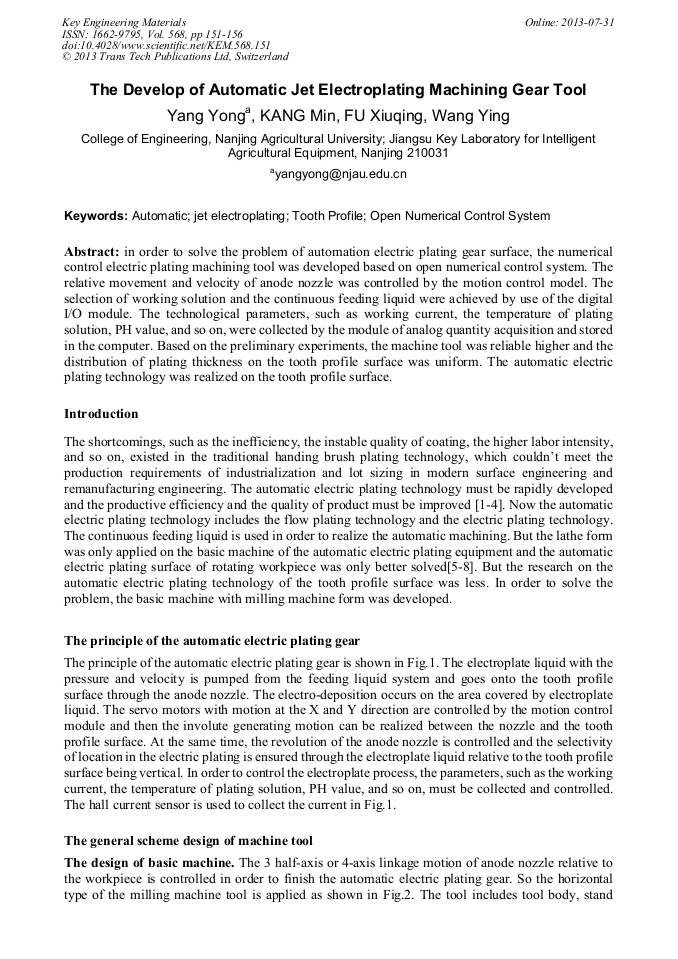

The Develop of Automatic Jet Electroplating Machining Gear Tool

Abstract:

In order to solve the problem of automation electric plating gear surface, the numerical control electric plating machining tool was developed based on open numerical control system. The relative movement and velocity of anode nozzle was controlled by the motion control model. The selection of working solution and the continuous feeding liquid were achieved by use of the digital I/O module. The technological parameters, such as working current, the temperature of plating solution, PH value, and so on, were collected by the module of analog quantity acquisition and stored in the computer. Based on the preliminary experiments, the machine tool was reliable higher and the distribution of plating thickness on the tooth profile surface was uniform. The automatic electric plating technology was realized on the tooth profile surface.

• Periodical: Key Engineering Materials (Volume 568)
• Pages: 151-156
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.568.151
• Online since: July 2013
• Authors: Yong Yang, Min Kang, Xiu Qing Fu, Ying Wang
• Keywords: Automatic, Jet Electroplating, Open Numerical Control System, Tooth Profile

References

[1] B.S. Xu, Remanufacturing Engineering and Automatic Surface Engineering Technology. Heat Treatment of Metals, 33(1)(2008)9-14.

[2] B.S. Xu, Theory and Technology of Surface Engineering, National Defense Industry Press, Beijing, (1999).

[3] Z.F. Hu, X.H. Wang, B. Lv, etc, Automatic Brush Electroplating Technology Applied to Remanufacturing Cylinder Body of Engine. China Surface Engineering, 25(4) (2012)1-9.

[4] B. Zhang, B.S. Xu, S.Y. Dong, etc, Design and Application of Process Control Expert System for Auto-brush Electroplating Technique, Chinese Journal of Mechanical Engineering, 44(4)(2008)128-132.

DOI: 10.3901/jme.2008.04.128

[5] X.D. Jing, B.S. Xu, Y. Lu, Development of An Automatic Brush-plating Machine, Manufacturing Technology & Machine Tool, (2)(2009)49-53.

[6] B.S. Xu, Z.F. Hu, S.Y. Dong. Automatic Brush Electroplating Machine Tool Applied to Connecting Rod, Chinese Patent: CN101748454A. (2010).

[7] J.B. Yu, M. Chen. Flow Plating Technology and Its Application to Product Remanufacturing, Machine Design and Research, 24(4) (2008)76-79.

[8] S.P. Deng, S.Y. Liu, J. X. Zhang, Development of Electric Brush-plating Machine Tool Based on Inverter, The Machine and Hydraulic, 37(5)(2009)59-61.

[9] B.S. Xu, etc. Theory and Technology of Equipment Remanufacturing Engineering, National defence industry press, Beijing, 2007. 抱歉，系统响应超时，请稍后再试 · 支持中英、中日在线互译 · 支持网页翻译，在输入框输入网页地址即可 · 提供一键清空、复制功能、支持双语对照查看，使您体验更加流畅.
