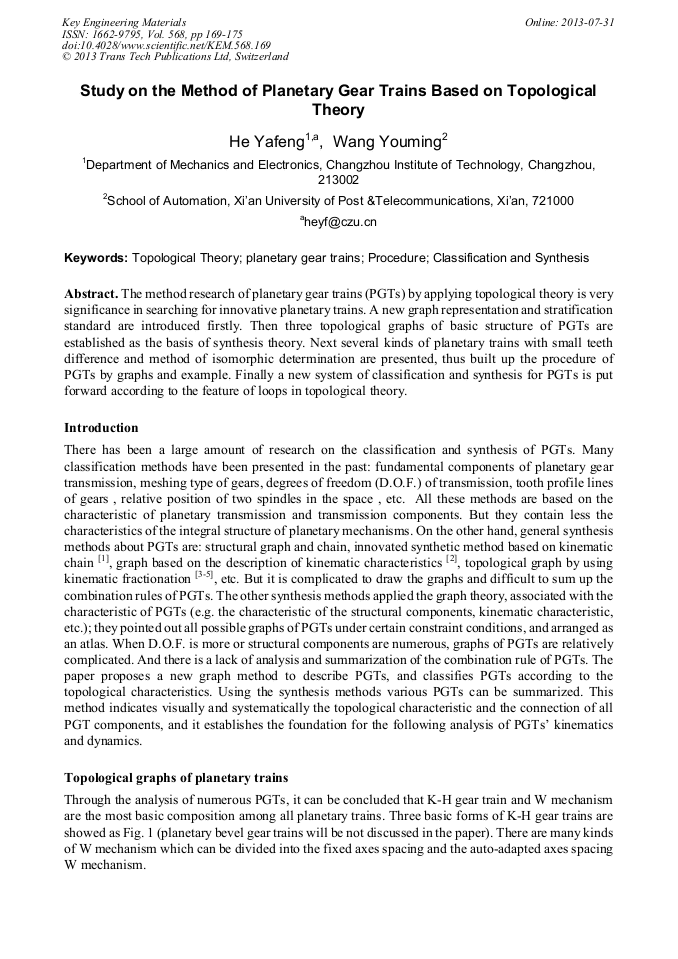

Study on the Method of Planetary Gear Trains Based on Topological Theory

Abstract:

The method research of planetary gear trains (PGTs) by applying topological theory is very significance in searching for innovative planetary trains. A new graph representation and stratification standard are introduced firstly. Then three topological graphs of basic structure of PGTs are established as the basis of synthesis theory. Next several kinds of planetary trains with small teeth difference and method of isomorphic determination are presented, thus built up the procedure of PGTs by graphs and example. Finally a new system of classification and synthesis for PGTs is put forward according to the feature of loops in topological theory.
