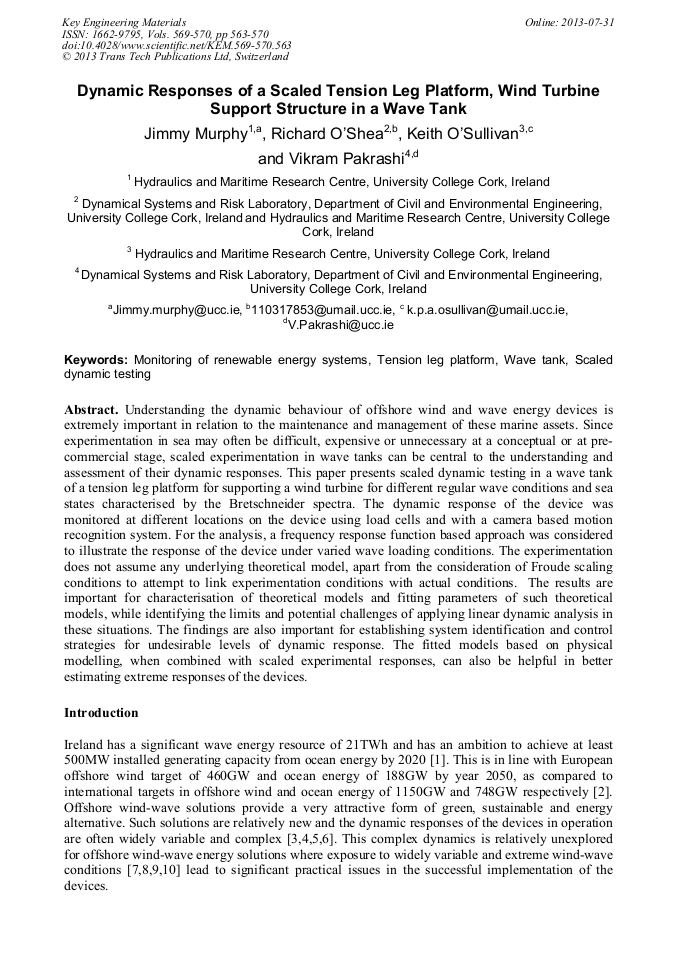

Dynamic Responses of a Scaled Tension Leg Platform, Wind Turbine Support Structure in a Wave Tank

Abstract:

Understanding the dynamic behaviour of offshore wind and wave energy devices is extremely important in relation to the maintenance and management of these marine assets. Since experimentation in sea may often be difficult, expensive or unnecessary at a conceptual or at pre-commercial stage, scaled experimentation in wave tanks can be central to the understanding and assessment of their dynamic responses. This paper presents scaled dynamic testing in a wave tank of a tension leg platform for supporting a wind turbine for different regular wave conditions and sea states characterised by the Bretschneider spectra. The dynamic response of the device was monitored at different locations on the device using load cells and with a camera based motion recognition system. For the analysis, a frequency response function based approach was considered to illustrate the response of the device under varied wave loading conditions. The experimentation does not assume any underlying theoretical model, apart from the consideration of Froude scaling conditions to attempt to link experimentation conditions with actual conditions. The results are important for characterisation of theoretical models and fitting parameters of such theoretical models, while identifying the limits and potential challenges of applying linear dynamic analysis in these situations. The findings are also important for establishing system identification and control strategies for undesirable levels of dynamic response. The fitted models based on physical modelling, when combined with scaled experimental responses, can also be helpful in better estimating extreme responses of the devices.

• Periodical: Key Engineering Materials (Volumes 569-570)
• Pages: 563-570
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.569-570.563
• Online since: July 2013
• Authors: Jimmy Murphy, Richard O’Shea, Keith O’Sullivan, Vikram Pakrashi
• Keywords: Monitoring of Renewable Energy Systems, Scaled Dynamic Testing, Tension Leg Platform, Wave Tank

References

[1] G. Dalton, and B.P. Ó Gallachóir. Building a wave energy policy focusing on innovation, manufacturing and deployment. Renewable and Sustainable Energy Reviews. 14(8) (2011), 2339-2358.

DOI: 10.1016/j.rser.2010.04.007

[2] H. Jeffrey and J. Sedgwick. (2011). ORECCA European Offshore Renewable Energy Roadmap.

[3] J.M. Jonkman. (2007). Dynamics Modelling and Loads Analysis of an Offshore Floating Wind Turbine. Report NREL/TP-500-41958, National Renewable Energy Laboratory, USA.

[4] S.P. Breton and G. Moe. Status, Plan and Technologies for Offshore Wind Turbines in Europe and North America. Renewable Energy. 34 (2009), 646-654.

DOI: 10.1016/j.renene.2008.05.040

[5] L. Manuel L, B. Sweetman and S.R. Winterstein. Analytical Predictions of the Air Gap Response of Floating Structures. ASME Journal of Offshore Mechanics and Arctic Engineering, 123 (2001), 112-117.

DOI: 10.1115/1.1372195

[6] S.R. Winterstein and B. Sweetman. Air Gap Response of Floating Structures: Statistical Predictions Versus Observed Behaviour. ASME Journal of Offshore Mechanics and Arctic Engineering, 123 (2001), 119-123.

DOI: 10.1115/1.1377867

[7] F.G. Nielsen, T.D. Hanson and B. Skaare. (2006). Integrated Dynamic Analysis of Floating Offshore Wind Turbines. Proceedings of the OMAE2006, Hamburg, Germany.

DOI: 10.1115/omae2006-92291

[8] P. Agarwal P and L. Manuel. Simulation of Offshore Wind Turbine Response for Long-Term Extreme Load Prediction. Engineering Structures, 31 (2009), 2236-2246.

DOI: 10.1016/j.engstruct.2009.04.002

[9] S.M. Han and H. Benaroya. Comparison of Linear and Nonlinear Responses of a Compliant Tower to Random Wave Forces. Chaos, Solitons and Fractals, 14 (2002), 269-291.

DOI: 10.1016/s0960-0779(01)00232-6

[10] N. Islam, M.M. Zaheer and S. Ahmed. Double Hinged Articulated Tower Interaction with Wind and Waves. Journal of Wind Engineering and Industrial Aerodynamics, 97 (2009), 287-297.

DOI: 10.1016/j.jweia.2009.07.002

[11] Standard: Design of Offshore Wind Turbines. (2007). Federal Maritime and Hydrographic Agency.

[12] R. A Swartz, J.P. Lynch, S. Zerbst , B. Sweetman and R. Rolfes. Structural Monitoring of Wind Turbines using Wireless Sensor Networks, Smart Structures and Systems, 6(3) (2010), 1-14.

DOI: 10.12989/sss.2010.6.3.183
