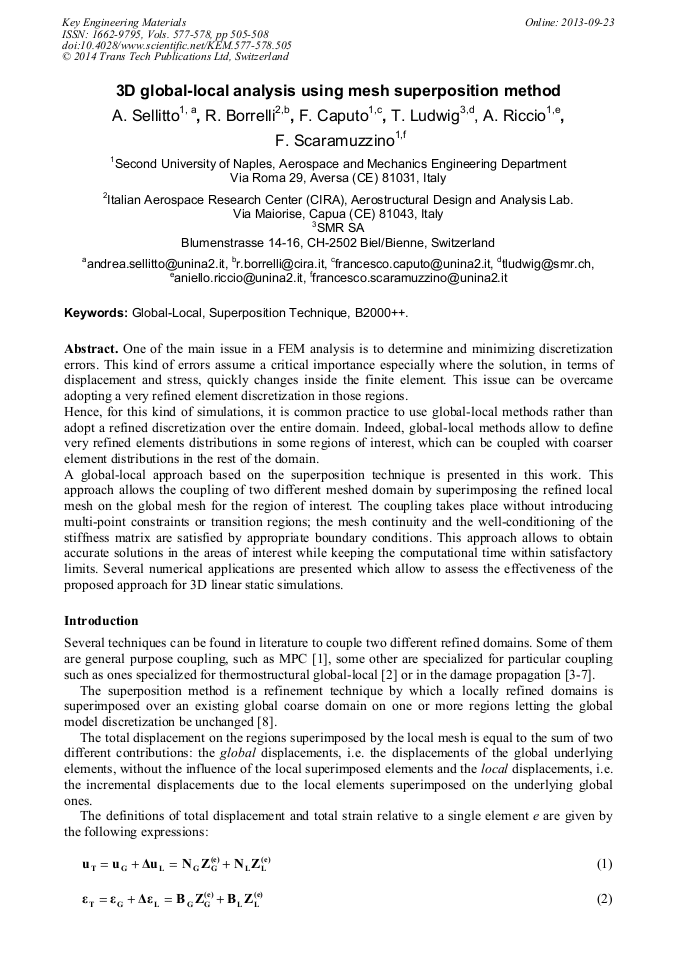

3D Global-Local Analysis Using Mesh Superposition Method

Abstract:

One of the main issue in a FEM analysis is to determine and minimizing discretization errors. This kind of errors assume a critical importance especially where the solution, in terms of displacement and stress, quickly changes inside the finite element. This issue can be overcame adopting a very refined element discretization in those regions.Hence, for this kind of simulations, it is common practice to use global-local methods rather than adopt a refined discretization over the entire domain. Indeed, global-local methods allow to define very refined elements distributions in some regions of interest, which can be coupled with coarser element distributions in the rest of the domain.A global-local approach based on the superposition technique is presented in this work. This approach allows the coupling of two different meshed domain by superimposing the refined local mesh on the global mesh for the region of interest. The coupling takes place without introducing multi-point constraints or transition regions; the mesh continuity and the well-conditioning of the stiffness matrix are satisfied by appropriate boundary conditions. This approach allows to obtain accurate solutions in the areas of interest while keeping the computational time within satisfactory limits. Several numerical applications are presented which allow to assess the effectiveness of the proposed approach for 3D linear static simulations.

• Periodical: Key Engineering Materials (Volumes 577-578)
• Pages: 505-508
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.577-578.505
• Online since: September 2013
• Authors: Andrea Sellitto, Rosario Borrelli, Francesco Caputo, T. Ludwig, Aniello Riccio, Francesco Scaramuzzino
• Keywords: B2000++, Global-Local, Superposition Technique

References

[1] H. Alesi, V. M. Nguyen, N. Mileshkin: Global/Local Postbuckling Failure Analysis of Composite Stringer/Skin Panels, AIAA Journal Vol. 36, No. 9 (1998).

DOI: 10.2514/3.14025

[2] M. Ferraiuolo, M. Gigliotti, A. Riccio, D. Tescione, R. Gardi, G. Marino: Thermostructural design of a flying winglet experimental structure for the EXPERT re-entry test, Journal of heat transfer, Vol. 131 (2009).

DOI: 10.1115/1.3109242

[3] E. Pietropaoli, A. Riccio: A Global/Local Finite Element Approach for Predicting Interlaminar and Intralaminar Damage Evolution in Composite Stiffened Panels Under Compressive Load, Applied Composite Materials, Vol. 18, N. 2 (2011) 113-125.

DOI: 10.1007/s10443-010-9135-1

[4] E. Pietropaoli, A. Riccio: Formulation and assessment of an enhanced finite element procedure for the analysis of delamination growth phenomena in composite structures, Composite Science and Technology Vol. 71 (6) (2011) 836-846.

DOI: 10.1016/j.compscitech.2011.01.026

[5] A. Riccio, A. Raimondo, F. Scaramuzzino: A study on skin delaminations growth in stiffened composite panels by a novel numerical approach, Applied composite materials (In press).

DOI: 10.1007/s10443-012-9282-7

[6] E. Pietropaoli, A. Riccio: On the robustness of finite element procedures based on Virtual Crack Closure Technique and fail release approach for delamination growth phenomena. Definition and assessment of a novel methodology", Composite Science and Technology Vol. 70 (8) (2010) 1288-1300.

DOI: 10.1016/j.compscitech.2010.04.006

[7] E. Armentani, F. Caputo, R. Esposito, G. Godono, "Evaluation of energy release rate for delamination defects at the skin/stringer interface of a stiffened composite panel", Engineering Fracture Mechanics, Vol. 71/4-6, pp.885-895, 2004. ISSN: 0013-7944.

DOI: 10.1016/s0013-7944(03)00045-6

[8] A. Sellitto, R. Borrelli, F. Caputo, A. Riccio, F. Scaramuzzino: Application of the Mesh Superposition Technique to the Study of Delaminations in Composites Thin Plates, Key Engineering Materials 525-526 (2012) 533-536.

DOI: 10.4028/www.scientific.net/kem.525-526.533

[9] SMR Engineering & Development SA, The B2000++® User Manual (2011), http://www.smr.ch/local/doc/B2000++/user_manual/index.html.
