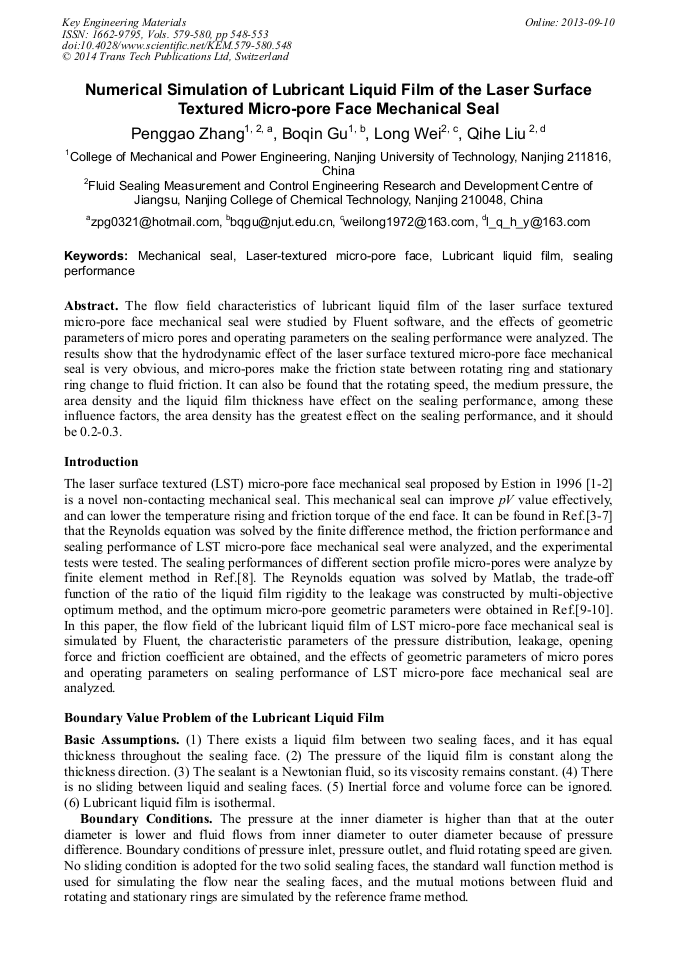

Numerical Simulation of Lubricant Liquid Film of the Laser Surface Textured Micro-Pore Face Mechanical Seal

Abstract:

The flow field characteristics of lubricant liquid film of the laser surface textured micro-pore face mechanical seal were studied by Fluent software, and the effects of geometric parameters of micro pores and operating parameters on the sealing performance were analyzed. The results show that the hydrodynamic effect of the laser surface textured micro-pore face mechanical seal is very obvious, and micro-pores make the friction state between rotating ring and stationary ring change to fluid friction. It can also be found that the rotating speed, the medium pressure, the area density and the liquid film thickness have effect on the sealing performance, among these influence factors, the area density has the greatest effect on the sealing performance, and it should be 0.2-0.3.

You might also be interested in these eBooks

Progress in Manufacturing Automation Technology and Application

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 579-580)

Pages:

548-553

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.579-580.548

Citation:

Cite this paper

Online since:

September 2013

Authors:

Peng Gao Zhang, Bo Qin Gu, Long Wei, Qi He Liu

Keywords:

Laser-Textured Micro-Pore Face, Lubricant Liquid Film, Mechanical Seal, Sealing Performance

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] I. Etsion and L. Burstein: Tribology Trans, Vol. 39 (1996) No. 3, pp.677-683.

Google Scholar

[2] I. Etsion, G. Halperin and Y. Greanberg: Proceeding of 15th Int'l Conf on Fluid Sealing (London, 1997). Vol. 1, pp.3-10.

Google Scholar

[3] X.Q. Yu, Z.H. Wang, H.Q. Gao and H.T. Cui: Lubrication Engineering, Vol. 32 (2007) No. 7, pp.90-93. (In Chinese).

Google Scholar

[4] X.Q. Yu and R.L. Cai: Modern Manufacturing Engineering, (2004) No. 7, pp.66-68. (In Chinese).

Google Scholar

[5] X.Q. Yu and R.L. Cai: Journal of East China University of Science and Technology, Vol. 30 (2004) No. 4, pp.481-484. (In Chinese).

Google Scholar

[6] X.Q. Yu, S. He, R.L. Cai, L.H. Yu and H.K. Yu: Fluid Machinery, Vol. 31 (2003) No. 1, pp.7-9. (In Chinese).

Google Scholar

[7] X.Q. Yu, P.Y. Peng, Z.H. Wand and R.L. Cai: Lubrication Engineering, (2006) No. 8, pp.34-37. (In Chinese).

Google Scholar

[8] X.D. Peng, D.B. Du and J.Y. Li: Tribology, Vol. 26 (2006) No. 4, pp.367-371. (In Chinese).

Google Scholar

[9] X.X. Ding, Z.G. She, Y. Wang, L. Zhu and H. Yang: Journal of Lanzhou University of Technology, Vol. 37 (2011) No. 6, pp.33-36. (In Chinese).

Google Scholar

[10] G.D. Li, X.X. Ding, J. Du, P.G. Zhang and J. Zhang: Chemical Machinery, Vol. 36 (2009) No. 6, pp.554-557. (In Chinese).

Google Scholar
