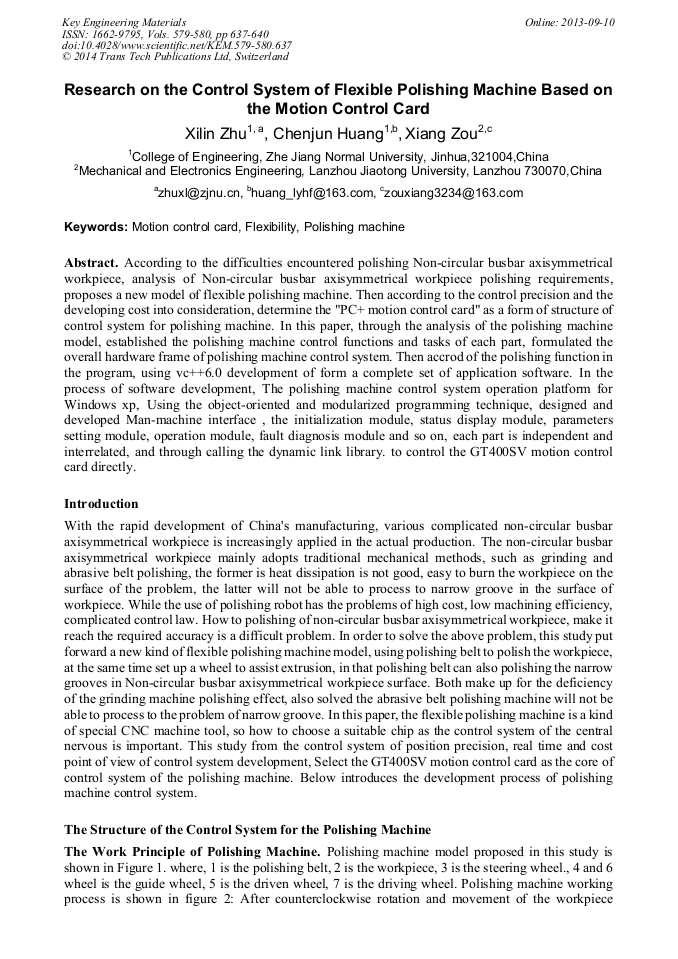

Research on the Control System of Flexible Polishing Machine Based on the Motion Control Card

Abstract:

According to the difficulties encountered polishing Non-circular busbar axisymmetrical workpiece, analysis of Non-circular busbar axisymmetrical workpiece polishing requirements, proposes a new model of flexible polishing machine. Then according to the control precision and the developing cost into consideration, determine the "PC+ motion control card" as a form of structure of control system for polishing machine. In this paper, through the analysis of the polishing machine model, established the polishing machine control functions and tasks of each part, formulated the overall hardware frame of polishing machine control system. Then accrod of the polishing function in the program, using vc++6.0 development of form a complete set of application software. In the process of software development, The polishing machine control system operation platform for Windows xp, Using the object-oriented and modularized programming technique, designed and developed Man-machine interface , the initialization module, status display module, parameters setting module, operation module, fault diagnosis module and so on, each part is independent and interrelated, and through calling the dynamic link library. to control the GT400SV motion control card directly.

• Periodical: Key Engineering Materials (Volumes 579-580)
• Pages: 637-640
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.579-580.637
• Online since: September 2013
• Authors: Xi Lin Zhu, Chen Jun Huang, Xiang Zou
• Keywords: Flexibility, Motion Control Card, Polishing Machine
