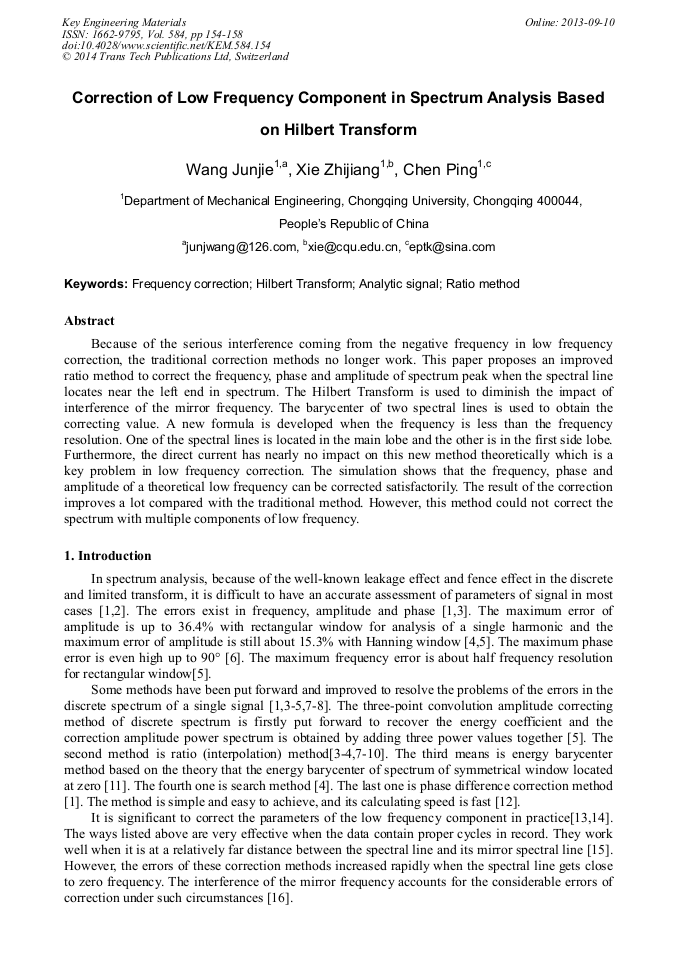

Correction of Low Frequency Component in Spectrum Analysis Based on Hilbert Transform

Abstract:

Because of the serious interference coming from the negative frequency in low frequency correction, the traditional correction methods no longer work. This paper proposes an improved ratio method to correct the frequency, phase and amplitude of spectrum peak when the spectral line locates near the left end in spectrum. The Hilbert Transform is used to diminish the impact of interference of the mirror frequency. The barycenter of two spectral lines is used to obtain the correcting value. A new formula is developed when the frequency is less than the frequency resolution. One of the spectral lines is located in the main lobe and the other is in the first side lobe. Furthermore, the direct current has nearly no impact on this new method theoretically which is a key problem in low frequency correction. The simulation shows that the frequency, phase and amplitude of a theoretical low frequency can be corrected satisfactorily. The result of the correction improves a lot compared with the traditional method. However, this method could not correct the spectrum with multiple components of low frequency.

• Periodical: Key Engineering Materials (Volume 584)
• Pages: 154-158
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.584.154
• Online since: September 2013
• Authors: Jun Jie Wang, Zhi Jiang Xie, Ping Chen
• Keywords: Analytic Signal, Frequency Correction, Hilbert Transform, Ratio Method

References

[1] K. Ding, M. XIE, X.F. ZHANG , Phase difference correction method for phase and frequency in spectral analysis, Mechanical Systems and Signal Processing. 14(5)(1999) 835-843.

DOI: 10.1006/mssp.1999.1284

[2] E. O. BROIGHAM, Fast Fourier Transform (FFT), Shanghai: Shanghai Science and Technology Publishing, 1983, pp.110-119.

[3] M. XIE, K. DING, Correction for the frequency, amplitude and phase in FFT of harmonic signal, Mechanical System and Signal Processing. 10(2)(1996) 211-221.

[4] K. DING, X.F. ZHANG, Advances in spectrum correction theory, Journal of Vibration Engineering. 13(2002) 14-22.

[5] K. DING, M. XIE, Error analysis for amplitude correction method using convolution of three points in discrete spectrum, Journal of Vibration Engineering. 9 (1996) 92-98.

[6] D.S. HUANG, Phase errors in fast Fourier transform analysis, Mechanical Systems and Signal Processing. 9 (1995)113-118.

[7] K. DING, M. XIE, A new correcting method and error analysis of the amplitude, phase and frequency of discrete spectrum, Journal of Dynamic Analysis and Technique of Measurement and Test. 14 (1996) 10-29.

[8] M. XIE, K. DING, A new correcting method of discrete spectrum analysis, Journal of Chongqing University 18(1995) 47-54.

[9] M. XIE, K. DING, Rectifying technique of spectrum analysis, Journal of Vibration Engineering. 7 (1994) 172-179.

[10] T. GRANDKE, Interpolation algorithms for discrete Fourier transforms of weighted signals, IEEE Transactions on Instrumentation and Measurement. IM-32(1993) 350-355.

DOI: 10.1109/tim.1983.4315077

[11] K. DING, L.Q. JIANG , Energy centrobaric correction method for discrete spectrum, Journal of Vibration Engineering. 14 (2001) 354-358.

[12] X.Y. DING , X.Y. ZHU, M. XIE, S.C. ZHONG, J.K. LUO, Synthesized correcting method of phase difference on discrete spectrum, Journal of Vibration Engineering. 15 (2002)114-118.

[13] P.Q. YAN, T.P. QIAO, Low Frequency Vibration in Engineering. Journal of Vibration, Measurement & Diagnosis. 22(4)(2002) 248-253.

[14] J.J. CHEN, N.L. TAI, Status and Perspective of Low Frequency Oscillation Research, Southern Power System Technology. 3 (6) (2009) 64-68.

[15] H.M. DUAN, S.R. QIN, N. LI, Review of correction methods for discrete spectrum, Journal of Vibration and Shock. 26(2007) 138-144.

[16] M. XIE, K. DING, K.B. MO, The effect spectral line interaction and the resolving method, Journal of Vibration Engineering. 11(1998) 52-57.

[17] K.F. CHEN, S.W. ZHANG, X.F. GUO, Journal of Mechanical Strength, Spectrum rectifying with negative frequency contribution eliminating. 26(2004) 25-28.

[18] K.F. CHEN, J.L. WANG, S.W. ZHANG, Spectrum Correction Based on the Complex Ratio of Discrete Spectrum around the main -lobe, Journal of Vibration Engineering. 21(2008) 314-318.

[19] K.F. CHEN, J.L. WANG, S.W. ZHANG, Correction of frequency spectrum for low frequency components, Journal of Vibration Engineering. 21(2008) 38-42.

[20] D.M. GAO, G.H. WANG, K.F. CHEN, D.C. WANG, Retrieving the low Frequency component from two FFT bins, Journal of Mechanical Strength. 34 (2012) 481-485.

[21] Y.W. MAO, Y.Q. TU, H.T. ZHANG, W. XIAO, Advances and Trends in spectrum analysis methodology with negative frequency contribution, Electrical Measurement & Instrumentation 48(2011) 27-32.

[22] Y.W. MAO, Y.Q. TU, H.T. ZHANG, W. XIAO, A discrete spectrum correction method for ultra low frequency signals, Journal of Vibration Engineering. 25(2012) 474-480.

[23] P.H. NIU, Y.Q. TU, H.T. ZHANG, New method of short-time frequency estimation for real sinusoid, Journal of electronic measurement and instrument. 21(2007) 40-44.

[24] G.S. HU, The theory, Algorithms and Implementation of Digital Signal Processing. Beijing: Tsinghua University Press, 2003, pp.156-160.
