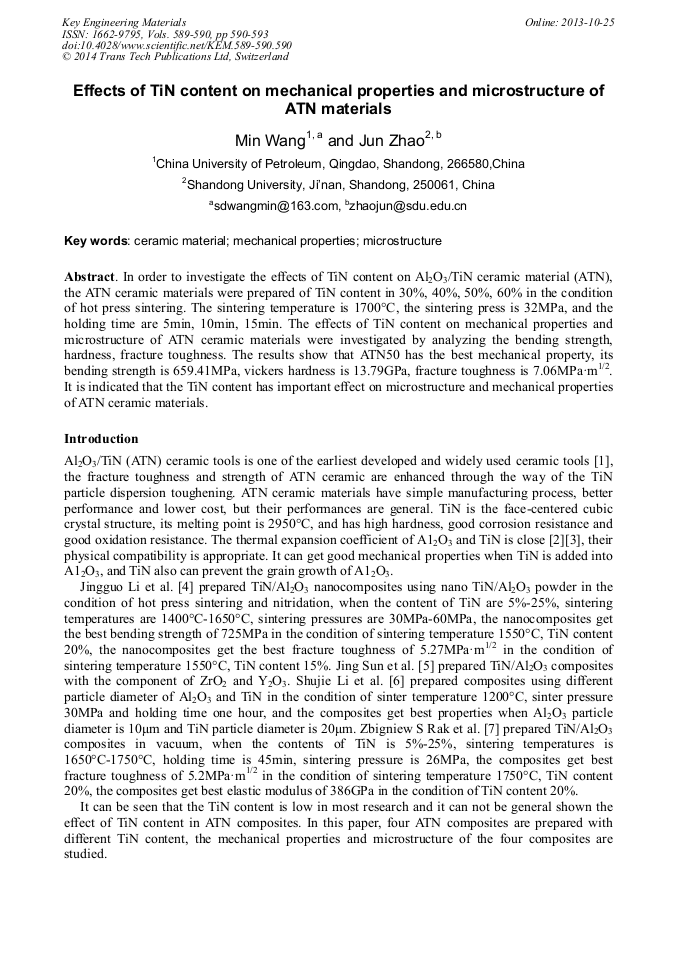

Effects of TiN Content on Mechanical Properties and Microstructure of ATN Materials

Abstract:

In order to investigate the effects of TiN content on Al₂O₃/TiN ceramic material (ATN), the ATN ceramic materials were prepared of TiN content in 30%, 40%, 50%, 60% in the condition of hot press sintering. The sintering temperature is 1700°C, the sintering press is 32MPa, and the holding time are 5min, 10min, 15min. The effects of TiN content on mechanical properties and microstructure of ATN ceramic materials were investigated by analyzing the bending strength, hardness, fracture toughness. The results show that ATN50 has the best mechanical property, its bending strength is 659.41MPa, vickers hardness is 13.79GPa, fracture toughness is 7.06MPa·m^1/2. It is indicated that the TiN content has important effect on microstructure and mechanical properties of ATN ceramic materials.

• Periodical: Key Engineering Materials (Volumes 589-590)
• Pages: 590-593
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.589-590.590
• Online since: October 2013
• Authors: Min Wang, Jun Zhao
• Keywords: Ceramic Material, Mechanical Property, Microstructure

References

[1] Deng jianxin, Zhao jun. CNC tool material selection handbook. (Machinery Industry Press, China 2007).

[2] Li shipu: Special ceramic technology. (Wuhan University of Technology Press, China 1990).

[3] Guo jingkun: Bulletin of the chinese ceramic society. 4(1995), p.18.

[4] Jingguo Li, Lian Gao and Jingkun Guo: Journal of the European Ceramic Society, 23(2003), p.69.

[5] Jing Sun, Chuanzhen Huang, Jun Wang and Hanlian Liu: Materials Science and Engineering A 416 (2006), p.104.

[6] Shujie Li, Yuping Li, Paul Babayan Khosrovabadi and B.H. Kolster: International Journal of Refractory Metals & Hard Materials 16 (1998), p.119.

DOI: 10.1016/s0263-4368(98)00025-0

[7] Zbigniew S. Rak, Jerzy Czechowski: Journal of the European Ceramic Society 18 (1998) , p.373.
