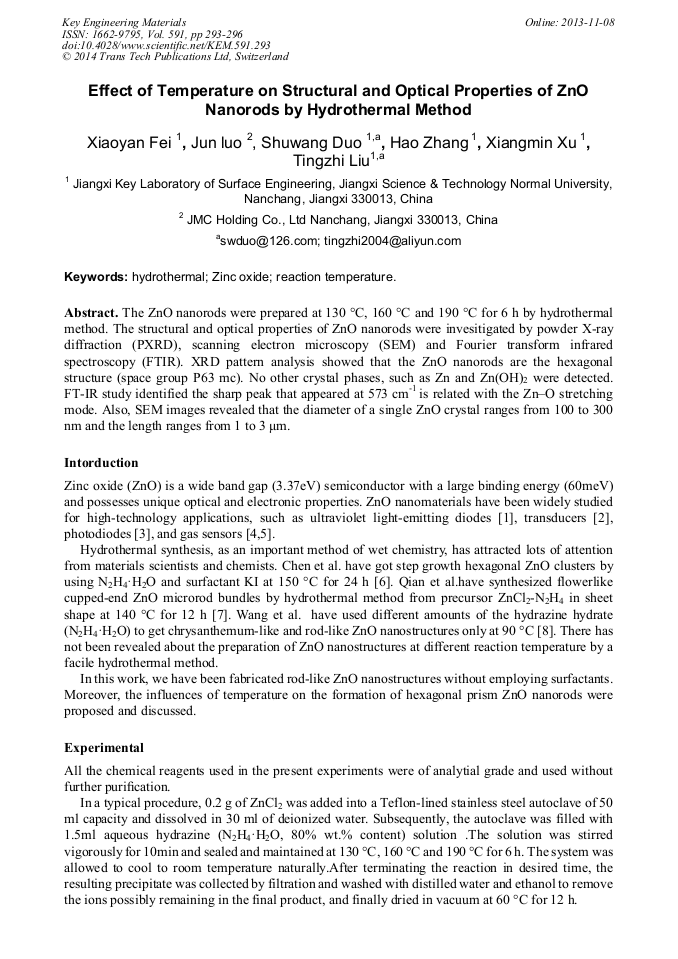

Effect of Temperature on Structural and Optical Properties of ZnO Nanorods by Hydrothermal Method

Abstract:

The ZnO nanorods were prepared at 130 °C, 160 °C and 190 °C for 6 h by hydrothermal method. The structural and optical properties of ZnO nanorods were invesitigated by powder X-ray diffraction (PXRD), scanning electron microscopy (SEM) and Fourier transform infrared spectroscopy (FTIR). XRD pattern analysis showed that the ZnO nanorods are the hexagonal structure (space group P63 mc). No other crystal phases, such as Zn and Zn (OH)₂ were detected. FT-IR study identified the sharp peak that appeared at 573 cm^-1 is related with the ZnO stretching mode. Also, SEM images revealed that the diameter of a single ZnO crystal ranges from 100 to 300 nm and the length ranges from 1 to 3 μm.

• Periodical: Key Engineering Materials (Volume 591)
• Pages: 293-296
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.591.293
• Online since: November 2013
• Authors: Xiao Yan Fei, Jun Luo, Shu Wang Duo, Hao Zhang, Xiang Min Xu, Ting Zhi Liu
• Keywords: Hydrothermal, Reaction Temperature, Zinc Oxide (ZnO)

References

[1] H. Ohta, K.I. Kawamura, M. Orita, Current injection emissionfrom a transparent p–n junction composed of p-SrCu2O2/n-ZnO, Appl. Phys. Lett. 77(2000) 475–477.

DOI: 10.1063/1.127015

[2] M.S. Arnold, P. Avouris, Z.W. Pan, Field-effect transistors based on single semiconducting oxide nanobelts, J. Phys. Chem. B. 107 (2003) 659–663.

DOI: 10.1021/jp0271054

[3] J.Y. Lee, Y.S. Choi, J.H. Kim, Optimizing n-ZnO/p-Si heterojunctions for photodiode applications, Thin Solid Films. 403 (2002) 553–557.

DOI: 10.1016/s0040-6090(01)01550-4

[4] Z. Pan, Z.L. Wang, E. Comini, Stable and highly sensitive gas sensors based on semiconducting oxide nanobelts, Appl. Phys. Lett. 81 (2002) 1869–1871.

DOI: 10.1063/1.1504867

[5] J. Xu, Y. Chen, D. Chen, Hydrothermal synthesis and gas sensing characters of ZnO nanorods, Sens. Actuators. B. 113 (2006) 526–531.

DOI: 10.1016/j.snb.2005.03.097

[6] Y. Chen, R. Yu, Q. Shi, Hydrothermal synthesis of hexagonal ZnO clusters, Mater. Lett. 61 (2007) 4438–4441.

DOI: 10.1016/j.matlet.2007.02.028

[7] C.L. Jiang, W.Q. Zhang, G.F. Zou, Hexagonal and prismatic nanowalled ZnO microboxes, J. Phys. Chem. B. 109 (2005) 1361–1363.

DOI: 10.1021/ic051833z.s001

[8] Y. Wang., X. Li, G. Lu, Synthesis and photo-catalytic degradation property of nanostructured-ZnO with different morphology, Mater. Lett. 62 (2008) 2359–2362.

DOI: 10.1016/j.matlet.2007.12.019

[9] L. Wu, Y. Wu, W. Lu, Preparation of ZnO Nanorods and optical characterizations, Physica. E. 28 (2005) 76–82.

[10] S. Anas, R.V. Mangalaraja, S. Ananthakumar, Studies on the evolution of ZnO morphologiesin a thermohydrolysis technique and evaluation of their functional properties, J. Hazard. Mater. 175(2010) 889–895.

DOI: 10.1016/j.jhazmat.2009.10.093
