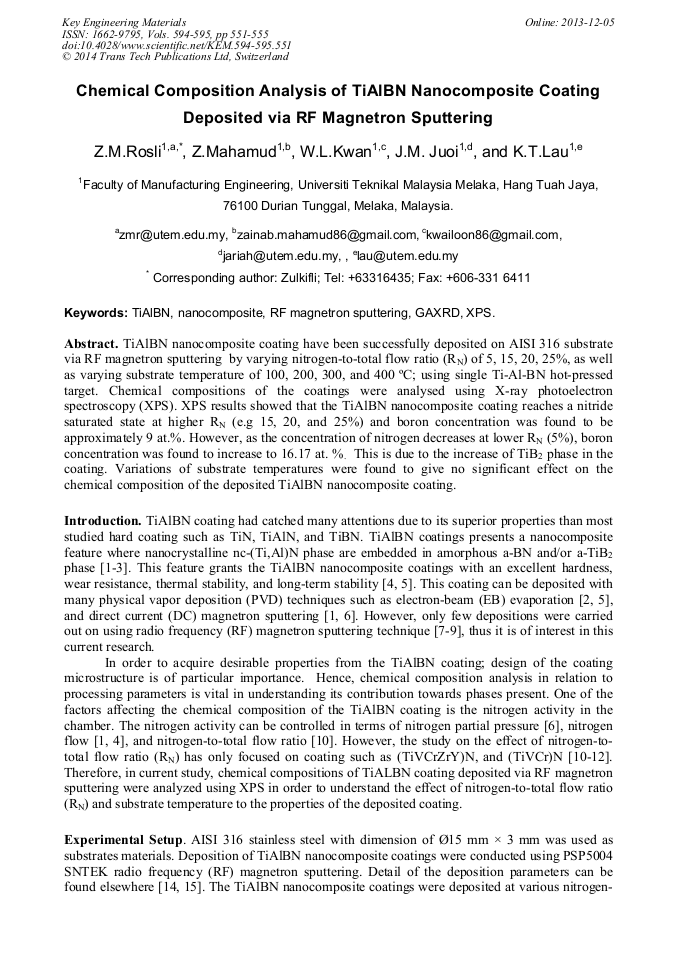

Chemical Composition Analysis of TiAlBN Nanocomposite Coating Deposited via RF Magnetron Sputtering

Abstract:

TiAlBN nanocomposite coating have been successfully deposited on AISI 316 substrate via RF magnetron sputtering by varying nitrogen-to-total flow ratio (R_N) of 5, 15, 20, 25%, as well as varying substrate temperature of 100, 200, 300, and 400 oC; using single Ti-Al-BN hot-pressed target. Chemical compositions of the coatings were analysed using X-ray photoelectron spectroscopy (XPS). XPS results showed that the TiAlBN nanocomposite coating reaches a nitride saturated state at higher R_N (e.g 15, 20, and 25%) and boron concentration was found to be approximately 9 at.%. However, as the concentration of nitrogen decreases at lower R_N (5%), boron concentration was found to increase to 16.17 at. %_. This is due to the increase of TiB₂ phase in the coating. Variations of substrate temperatures were found to give no significant effect on the chemical composition of the deposited TiAlBN nanocomposite coating.

• Periodical: Key Engineering Materials (Volumes 594-595)
• Pages: 551-555
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.594-595.551
• Online since: December 2013
• Authors: Zulkifli Mohd Rosli, Zainab Mahamud, Wai Loon Kwan, Jariah Mohd Juoi, K.T. Lau
• Keywords: GAXRD, Nanocomposite, RF Magnetron Sputtering, TiAlBN, XPS

References

[1] J. Morales-Hernández, L. García-Gonzáles, J. Muñoz-Saldaña, F.J. Espinoza-Beltrán, Vacuum 76 (2004) 161-164.

DOI: 10.1016/j.vacuum.2004.07.059

[2] C. Rebholz, M.A. Monclus, M.A. Baker, P.H. Mayrhofer, P.N. Gibson, A. Leyland, A. Matthews, Surf. Coat. Technol. 201 (2007) 6078-6083.

DOI: 10.1016/j.surfcoat.2006.08.121

[3] M.A. Baker, M.A. Monclus, C. Rebholz, P.N. Gibson, A. Leyland, A. Matthews, Thin Solid Films 518 (2010) 4273-4280.

DOI: 10.1016/j.tsf.2009.12.109

[4] C. Rebholz, J.M. Schneider, A.A. Voevodin, J. Steinebrunner, C. Charitidis, S. Logothetidis, A. Leyland, A. Matthews, Surf. Coat. Technol. 113 (1999) 126-133.

DOI: 10.1016/s0257-8972(98)00840-8

[5] M.A. Baker, S. Klose, C. Rebholz, A. Leyland, A. Matthews, Surf. Coat. Technol. 151–152 (2002) 338-343.

[6] D.V. Shtansky, K. Kaneko, Y. Ikuhara, and E.A. Levashov, Surf. Coat. Technol. 148 (2001) 206-215.

[7] I. Zukerman, A. Raveh, Y. Shneor, R. Shneck, J.E. Klemberg-Saphieha, L. Martinu, Surf. Coat. Technol. 201 (2007) 6161-6166.

DOI: 10.1016/j.surfcoat.2006.08.136

[8] R. Anvi, I. Fried, A. Raveh, I. Zukerman, Thin Solid Films 516 (2008) 5386-5392.

DOI: 10.1016/j.tsf.2007.07.093

[9] J. -K. Park, J. -Y. Cho, H. -T. Jeon, Y. -J. Baik, Vacuum 84 (2010) 483-487.

[10] D.C. Tsai, Y.L. Huang, S.R. Lin, D.R. Jung, F.S. Shieu, Nucl. Instrum. Methods Phys. Res. Sect. B 269 (2011) 685-691.

[11] D.C. Tsai, Y.L. Huang, S.R. Lin, S.C. Liang, F.S. Shieu, Appl. Surf. Sci. 257 (2010) 1361-1367.

[12] D.C. Tsai, Y.L. Huang, S.R. Lin, D.R. Jung, S.Y. Chang, F.S. Shieu, J. Alloy. Compd. 509 (2011) 3141–3147.

[13] M. Niederberger, N. Pinna, Metal Oxide Nanoparticles in Organic Solvents, first ed., Springer, London, (2009).

[14] Z.M. Rosli, W.L. Kwan, J.M. Juoi, N. Nayan, Z. Mahamud, Y. Yusuf, Adv. Mat. Res. V626 (2013) 298-301.

[15] Z.M. Rosli, Z. Mahamud, J.M. Juoi, N. Nayan, K.W. Loon, Y. Yusuf, Solid And Structures, Vol 1, No. 1, (2012) 10-15.
