Demonstration of Thermo-Optic Switch Consisting of Mach-Zehnder Polymer Waveguide Drawn Using Focused Proton Beam

Abstract:

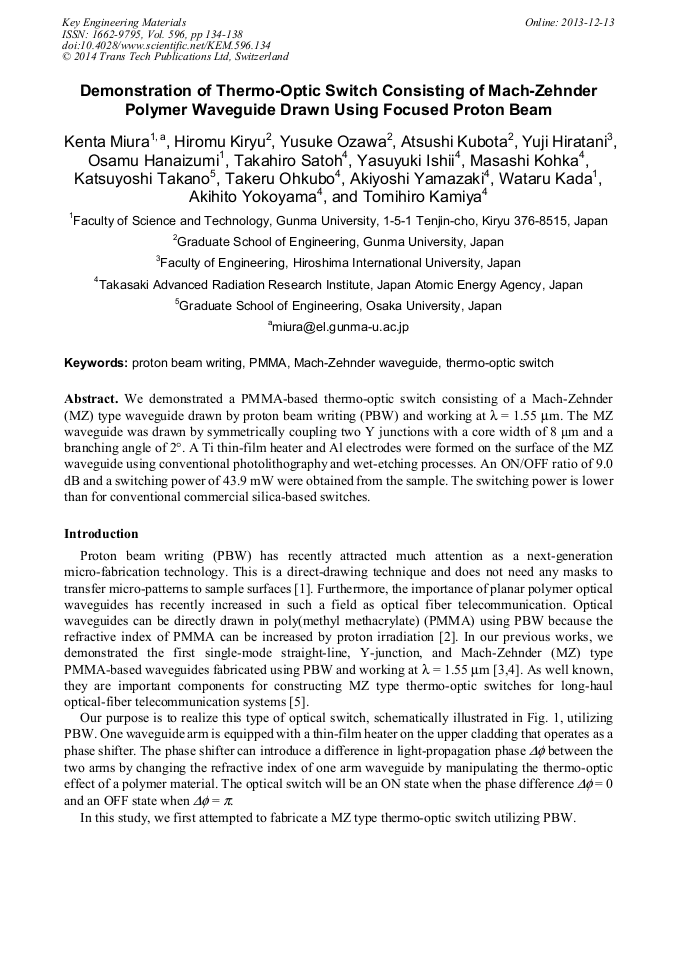

We demonstrated a PMMA-based thermo-optic switch consisting of a Mach-Zehnder (MZ) type waveguide drawn by proton beam writing (PBW) and working at λ = 1.55 μm. The MZ waveguide was drawn by symmetrically coupling two Y junctions with a core width of 8 μm and a branching angle of 2°. A Ti thin-film heater and Al electrodes were formed on the surface of the MZ waveguide using conventional photolithography and wet-etching processes. An ON/OFF ratio of 9.0 dB and a switching power of 43.9 mW were obtained from the sample. The switching power is lower than for conventional commercial silica-based switches.
