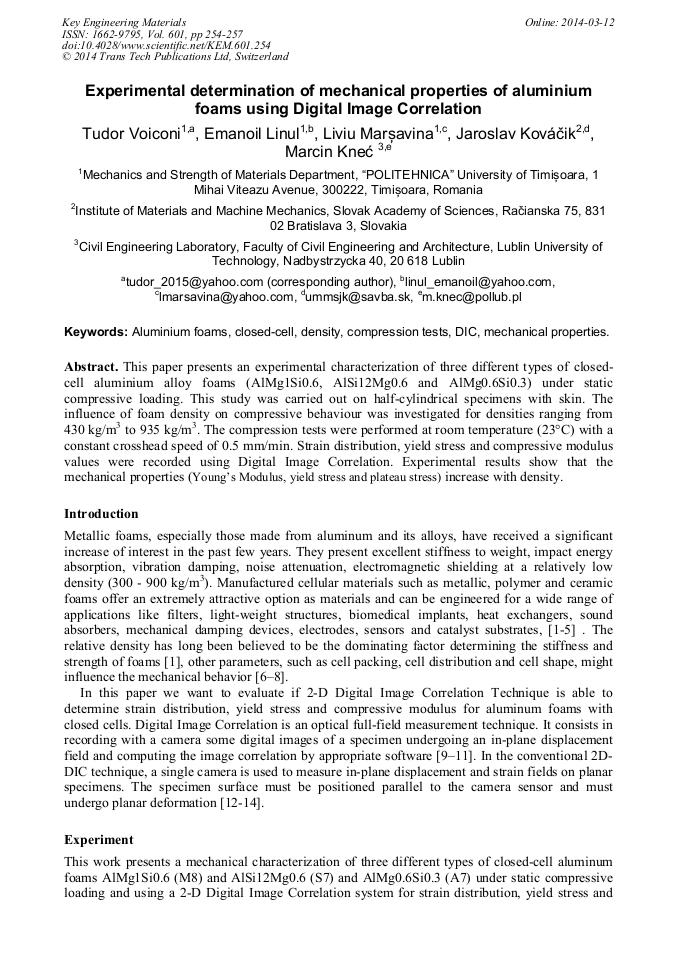

Experimental Determination of Mechanical Properties of Aluminium Foams Using Digital Image Correlation

Abstract:

This paper presents an experimental characterization of three different types of closed-cell aluminium alloy foams (AlMg1Si0.6, AlSi12Mg0.6 and AlMg0.6Si0.3) under static compressive loading. This study was carried out on half-cylindrical specimens with skin. The influence of foam density on compressive behaviour was investigated for densities ranging from 430 kg/m³ to 935 kg/m³. The compression tests were performed at room temperature (23°C) with a constant crosshead speed of 0.5 mm/min. Strain distribution, yield stress and compressive modulus values were recorded using Digital Image Correlation. Experimental results show that the mechanical properties (Youngs Modulus, yield stress and plateau stress) increase with density.

• Periodical: Key Engineering Materials (Volume 601)
• Pages: 254-257
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.601.254
• Online since: March 2014
• Authors: Tudor Voiconi, Emanoil Linul, Liviu Marsavina, Jaroslav Kováčik, Marcin Kneć
• Keywords: Aluminum Foam, Closed-Cell, Compression Test, Density, Digital Image Correlation (DIC), Mechanical Property

References

[1] L.J. Gibson, M.F. Ashby, Cellular solids, Structure and properties, Second edition. Published by the Press Syndicate of the University of Cambridge, (1997).

[2] H.W. Song, Q.J. He., Xie, J.J. and Tobota, A., Fracture mechanisms and size effects of brittle metallic foams: In situ compression tests inside SEM, Composites Science and Technology 68, (2008) 2441–2450.

DOI: 10.1016/j.compscitech.2008.04.023

[3] J. Banhart, J. Baumeister, Deformation characteristics of metal foams, J. Mater. Sci. 33, (1998) 1431–1440.

[4] L.J. Gibson, M.F. Ashby, Cellular Solids: Structure and Properties, Cambridge University Press, (1999).

[5] M.F. Ashby, T. Evans, N.A. Fleck, L.J. Gibson, J.W. Hutchinson, Metal Foams: A Design Guide, Elsevier Science & Technology Books, (2000).

[6] A. Fazekas, R. Dendievel, L. Salvo, Y. Brechet, Effect of microstructural topology upon the stiffness and strength of 2D cellular structures, Int. J. of Mech Sci. 44, (2002) 2047–(2066).

DOI: 10.1016/s0020-7403(02)00171-6

[7] Z.J. Zheng, J.L. Yu, J.R. Li, Dynamic crushing of 2D cellular structures: A finite element study, Int. J. Impact Eng. 32, (2005) 650–664.

DOI: 10.1016/j.ijimpeng.2005.05.007

[8] T.G. Nieh, K. Higashi, J. Wadsworth, Effect of cell morphology on the compressive properties of open-cell aluminum foams, Mat. Sci. Eng. A 283, (2000) 105–110.

DOI: 10.1016/s0921-5093(00)00623-7

[9] E.M. Parsons, M.C. Boyce, D.M. Parks, M. Weinberg, Three-dimensional large-strain tensile deformation of neat and calcium carbonate-filled high-density polyethylene, Polymer 46 (2005) 2257–2265.

DOI: 10.1016/j.polymer.2005.01.045

[10] Aramis2D software. GOM-Gesellschaft für Optische Messtechnik mbH, Optical Measuring Techniques, http: /www. gom. com/EN/index. html.

[11] E. Parsons, M.C. Boyce*, D.M. Parks, An experimental investigation of the large-strain tensile behavior of neatand rubber-toughene polycarbonate, Polymer 45 (2004) 2665–2684.

DOI: 10.1016/j.polymer.2004.01.068

[12] M. Fazzini, S. Mistou, O. Dalverny, L. Robert, Study of image characteristics on digital image correlation error assessment, J. Optics and Lasers in Eng. 48 (2010) 335–339.

DOI: 10.1016/j.optlaseng.2009.10.012

[13] H. Jin, W.Y. Lu, S. Scheffel, T. D. Hinnerichs, M. K. Neilsen, Full-field characterization of mechanical behavior of polyurethane foams, Int. J. of Sol. and Struct. 44 (2007) 6930–6944.

DOI: 10.1016/j.ijsolstr.2007.03.018

[14] ARAMIS, User Manual by GOM mbH. Germany, Braunschweig, May 2011, v 6. 3.
