Synthesis of Porous Ti2SnC from TiH2-Sn-TiC/Graphite Powders in Tube Furnace

Zheng Yang Li; Li Bo Wang; Guo Cai Zhong; Sai Sai Li; Ai Guo Zhou

doi:10.4028/www.scientific.net/KEM.602-603.130

Paper Titles

Dispersion Behavior of Silicon Carbide Whisker
p.114

Microwave Synthesis of Silicon Carbide Nano Powders with Silicon and Carbon
p.118

Preparation and Characterization of Ultra-Fine ZrB₂by Sol-Gel Method
p.122

Preparation and Properties of Aluminum Silicate Fiber Mat Impregnated Silica Sol
p.126

Synthesis of Porous Ti₂SnC from TiH₂-Sn-TiC/Graphite Powders in Tube Furnace
p.130

The Effect of Sucrose on Adsorption Properties of Hexagonal Boron Nitride Powders
p.134

Combustion Synthesis of Porous Si₃N₄ Based Ceramics with Glass as Additives
p.138

Combustion Synthesis and Infrared Characterization of TiB₂
p.142

Evolution of Composition and Structure of Poly[(alkylamino)borazine] to Boron Nitride Ceramic during Pyrolysis Process
p.146

HomeKey Engineering MaterialsKey Engineering Materials Vols. 602-603Synthesis of Porous Ti2SnC from...

Synthesis of Porous Ti₂SnC from TiH₂-Sn-TiC/Graphite Powders in Tube Furnace

Abstract:

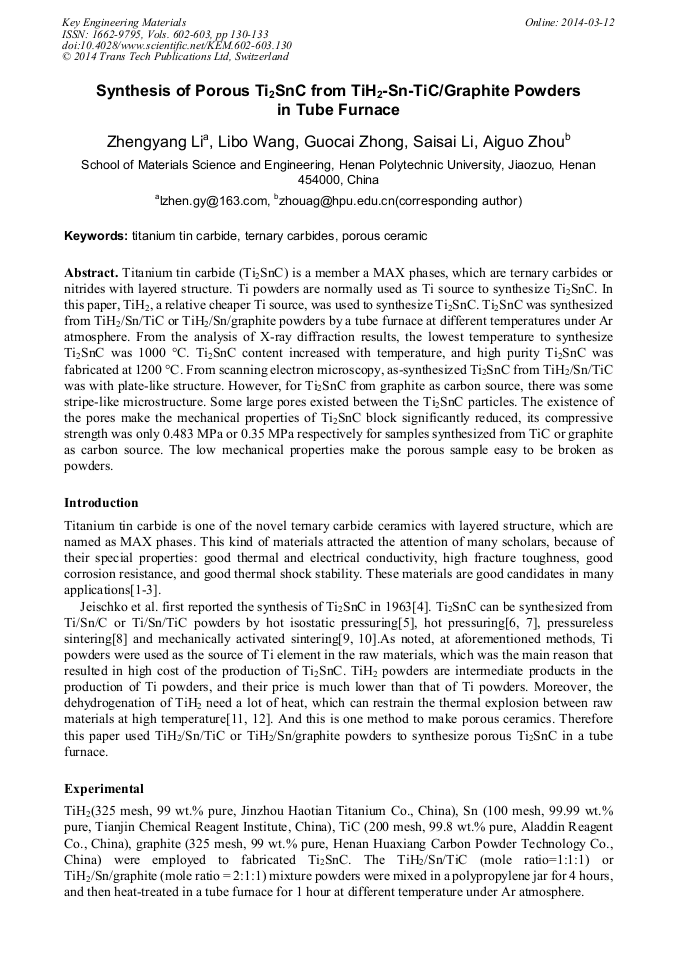

Titanium tin carbide (Ti₂SnC) is a member a MAX phases, which are ternary carbides or nitrides with layered structure. Ti powders are normally used as Ti source to synthesize Ti₂SnC. In this paper, TiH₂, a relative cheaper Ti source, was used to synthesize Ti₂SnC. Ti₂SnC was synthesized from TiH₂/Sn/TiC or TiH₂/Sn/graphite powders by a tube furnace at different temperatures under Ar atmosphere. From the analysis of X-ray diffraction results, the lowest temperature to synthesize Ti₂SnC was 1000 °C. Ti₂SnC content increased with temperature, and high purity Ti₂SnC was fabricated at 1200 °C. From scanning electron microscopy, as-synthesized Ti₂SnC from TiH₂/Sn/TiC was with plate-like structure. However, for Ti₂SnC from graphite as carbon source, there was some stripe microstructure. Some large pores existed between the Ti₂SnC particles. The existence of the pores make the mechanical properties of Ti₂SnC block significantly reduced, its compressive strength was only 0.483 MPa or 0.35 MPa respectively for samples synthesized from TiC or graphite as carbon source. The low mechanical properties make the porous sample easy to be broken as powders.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 602-603)

Pages:

130-133

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.602-603.130

Citation:

Cite this paper

Online since:

March 2014

Authors:

Zheng Yang Li, Li Bo Wang, Guo Cai Zhong, Sai Sai Li, Ai Guo Zhou*

Keywords:

Porous, Ternary Carbides, Titanium Tin Carbide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M.W. Barsoum, D. Brodkin, T. El-Raghy, Layered Machinable Ceramics for High Temperature Applications, Scripta Mater. 36 (1997) 535-541.

DOI: 10.1016/s1359-6462(96)00418-6

Google Scholar

[2] M.W. Barsoum, The MN+1AXN Phases: a New Class of Solids; Thermodynamically Stable Nanolaminates, Prog. Solid State Chem. 28 (2000) 201-281.

DOI: 10.1016/s0079-6786(00)00006-6

Google Scholar

[3] M. Barsoum, K. Buschow, R. Cahn, M. Flemings, B. Ilschner, E. Kramer, S. Mahajan, P. Veyssière, Physical properties of the MAX phases, Encyclopedia of Materials: Science and Technology (2006) 1-11.

DOI: 10.1016/b0-08-043152-6/01863-5

Google Scholar

[4] W. Jeitschko, H. Nowotny, F. Benesovsky, Kohlenstoffhaltige ternäre Verbindungen (H-phase), Monatshefte für Chemie und verwandte Teile anderer Wissenschaften 94 (4) (1963) 672-676.

DOI: 10.1007/bf00905710

Google Scholar

[5] M.W. Barsoum, G. Yaroschuk, Fabrication and Characterization of M2SnC (M=Ti, Zr, Hf and Nb), Scripta Mater. 37 (10) (1997) 1583-1591.

DOI: 10.1016/s1359-6462(97)00288-1

Google Scholar

[6] H.Y. Dong, C.K. Yan, S.Q. Chen, Y.C. Zhou, Solid–liquid reaction synthesis and thermal stability of Ti2SnC powders, J. Mater. Chem. 11 (5) (2001) 1402-1407.

DOI: 10.1039/b008973g

Google Scholar

[7] Y. Zhou, H. Dong, X. Wang, C. Yan, Preparation of Ti2SnC by solid-liquid reaction synthesis and simultaneous densification method, Mater. Res. Innovations 6 (5-6) (2002) 219-225.

DOI: 10.1007/s10019-002-0200-8

Google Scholar

[8] S. -B. Li, G. -P. Bei, H. -X. Zhai, Y. Zhou, Synthesis of Ti2SnC from Ti/Sn/TiC powder mixtures by pressureless sintering technique, Mater. Lett. 60 (29-30) (2006) 3530-3532.

DOI: 10.1016/j.matlet.2006.03.045

Google Scholar

[9] Y.J. Kang, T. Fey, P. Greil, Synthesis of Ti2SnC MAX Phase by Mechanical Activation and Melt Infiltration, Adv. Eng. Mater. 14 (1-2) (2012) 85-91.

DOI: 10.1002/adem.201100186

Google Scholar

[10] S. -B. Li, G. -P. Bei, H. -X. Zhai, Y. Zhou, C. -W. Li, Synthesis of Ti2SnC at low-temperature using mechanically activated sintering process, Mater. Sci. Eng., A 457 (1-2) (2007) 282-286.

DOI: 10.1016/j.msea.2007.01.095

Google Scholar

[11] V. Bhosle, E. Baburaj, M. Miranova, K. Salama, Dehydrogenation of TiH2, Mater. Sci. Eng., A 356 (1) (2003) 190-199.

DOI: 10.1016/s0921-5093(03)00117-5

Google Scholar

[12] Y. Zou, Z. Sun, S. Tada, H. Hashimoto, Rapid synthesis of single-phase Ti3AlC2 through pulse discharge sintering a TiH2/Al/TiC powder mixture, Scripta Mater. 56 (9) (2007) 725-728.

DOI: 10.1016/j.scriptamat.2007.01.026

Google Scholar

[13] C.L. Yeh, C.W. Kuo, Effects of TiC addition on formation of Ti2SnC by self-propagating combustion of Ti–Sn–C–TiC powder compacts, J. Alloys Compd. 502 (2) (2010) 461-465.

DOI: 10.1016/j.jallcom.2010.04.196

Google Scholar

[14] S. -B. Li, G. -P. Bei, H. -X. Zhai, Y. Zhou, Bimodal Microstructure and Reaction Mechanism of Ti2SnC Synthesized by a High-Temperature Reaction Using Ti/Sn/C and Ti/Sn/TiC Powder Compacts, J. Am. Cer. Soc. 89 (12) (2006) 3617-3623.

DOI: 10.1111/j.1551-2916.2006.01275.x

Google Scholar
