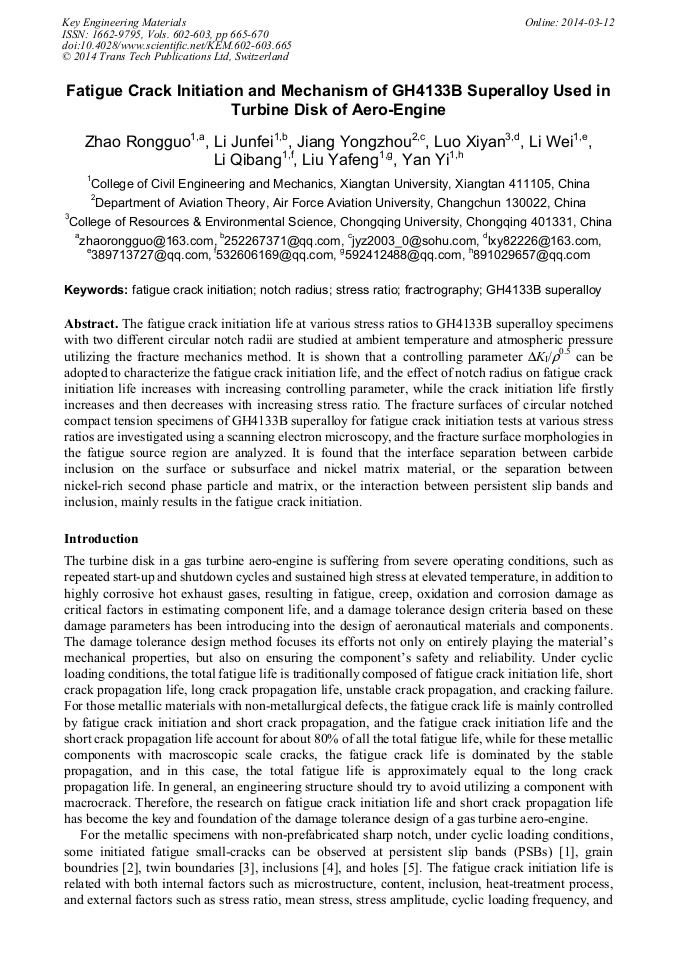

Fatigue Crack Initiation and Mechanism of GH4133B Superalloy Used in Turbine Disk of Aero-Engine

Abstract:

The fatigue crack initiation life at various stress ratios for GH4133B superalloy specimen with different circular notch radios are studied at ambient temperature and atmospheric pressure utilizing the fracture mechanics method. It is shown that a controlling parameter ΔK_I/ρ^0.5 can be adopted to characterize the fatigue crack initiation life, and the effect of notch radius on fatigue crack initiation life increases with increasing control parameter, while the fatigue crack initiation life firstly increases and then decreases with increasing stress ratio. The fatigue fracture surfaces of circular notched compact tension specimens of GH4133B superalloy for fatigue crack initiation tests at various stress ratios are investigated using a scanning electron microscopy, and the fracture surface morphologies in the fatigue source region are analyzed. It is found that the separation between carbide inclusion on the surface or subsurface and matrix, or the separation between nickel-rich second phase particle and matrix, or the interaction between persistent slip bands and inclusion, mainly results in the fatigue crack initiation.

• Periodical: Key Engineering Materials (Volumes 602-603)
• Pages: 665-670
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.602-603.665
• Online since: March 2014
• Authors: Rong Guo Zhao, Jun Fei Li, Yong Zhou Jiang, Xi Yan Luo, Wei Li, Qi Bang Li, Ya Feng Liu, Yi Yan
• Keywords: Fatigue Crack Initiation, Fractrography, GH4133B Superalloy, Notch Radius, Stress Ratio

References

[1] M.D. Sangid, H.J. Maier, H. Sehitoglu, A physically based fatigue model for prediction of crack initiation from persistent slip bands in polycrystals, Acta Materialia 59 (2011): 328-341.

DOI: 10.1016/j.actamat.2010.09.036

[2] M.D. Sangid, H.J. Maier, H. Sehitoglu, The role of grain boundaries on fatigue crack initiation – An energy approach, International Journal of Plasticity 27 (2011), 801-821.

DOI: 10.1016/j.ijplas.2010.09.009

[3] J. Miao, T.M. Pollock, J.W. Jones, Crystallographic fatigue crack initiation in nickel-based superalloy René 88DT at elevated temperature, Acta Materialia 57 (2009), 5964-5974.

DOI: 10.1016/j.actamat.2009.08.022

[4] M.D. Chapetti, A simple model to predict the very high cycle fatigue resistance of steels, International Journal of Fatigue 33 (2011), 833-841.

DOI: 10.1016/j.ijfatigue.2010.12.010

[5] H. Wu, On the prediction of initiation life for fatigue crack emanating from small cold expanded holes, Journal of Materials Processing Technology 212 (2012), 1819-1824.

DOI: 10.1016/j.jmatprotec.2012.04.004
