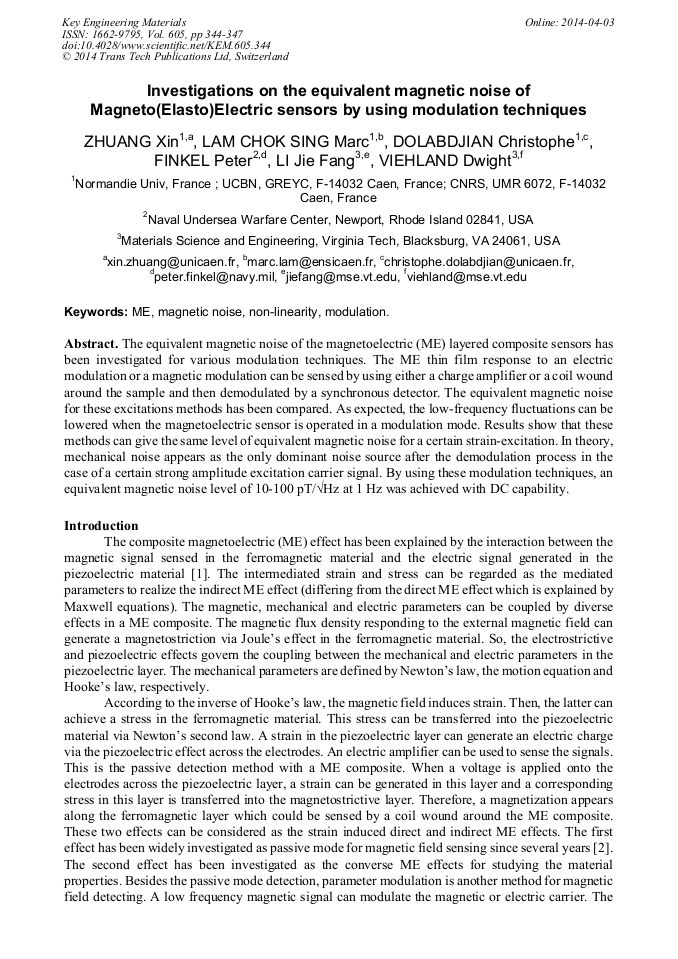

Investigations on the Equivalent Magnetic Noise of Magneto(Elasto)Electric Sensors by Using Modulation Techniques

Abstract:

The equivalent magnetic noise of the magnetoelectric (ME) layered composite sensors has been investigated for various modulation techniques. The ME thin film response to an electric modulation or a magnetic modulation can be sensed by using either a charge amplifier or a coil wound around the sample and then demodulated by a synchronous detector. The equivalent magnetic noise for these excitations methods has been compared. As expected, the low-frequency fluctuations can be lowered when the magnetoelectric sensor is operated in a modulation mode. Results show that these methods can give the same level of equivalent magnetic noise for a certain strain-excitation. In theory, mechanical noise appears as the only dominant noise source after the demodulation process in the case of a certain strong amplitude excitation carrier signal. By using these modulation techniques, an equivalent magnetic noise level of 10-100 pT/Hz at 1 Hz was achieved with DC capability.

• Periodical: Key Engineering Materials (Volume 605)
• Pages: 344-347
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.605.344
• Online since: April 2014
• Authors: Xin Zhuang*, Marc Lam Chok Sing, Christophe Dolabdjian, Peter Finkel, Jie Fang Li, Dwight Viehland
• Keywords: Magnetic Noise, ME, Modulation, Non-Linearity

References

[1] C. Nan, M. I. Bichurin, S. Dong, D. Viehland and G. Srinivasan: J. Appl. Phys., 103(2008), p.31101

[2] C.-W. Nan: Physical Review b, Vol. 50 (1994), p.6082

[3] Z. Wang, R. Zhang, E. Sun et W. Cao: J. Appl. Phys., Vol. 107 (2010), p.014110

[4] S. Dong, J. Li and D. Viehland: IEEE Trans. Ultra.. Ferro.. Freq. Control, Vol. 50 (2003), p.1253

[5] S. Dong, J. Li and D. Viehland: J. Appl. Phys., Vol. 95 (2004), p.2625

[6] X. Zhuang, M. Lam Chok Sing, C. Dolabdjian, P. Finkel, J. Li andD. Viehland, IEEE.Sensors. J

DOI: 10.1109/JSEN.2013.2274098
