Experimental Investigation and Numerical Simulation of Pure Copper Foil Springback in Micro-Bending Process

Abstract:

Springback is an important factor influencing forming precision in bending process, which becomes more complex for micro metal foil due to the size effect existing. Bending springback is studied through the micro bending experiments designed with different grain sizes and foil thicknesses using T2 purple copper in this paper. The accurate stress-strain relationships are obtained based on the copper foil tensile experiments; the bending process of micro-component is simulated based on both dynamic explicit and static implicit codes. Comparison of simulation results with experimental results shows that: thickness can serve as an important parameter effecting on the springback; the trend of springback amount rising with a thickness diminishing enhances in small size; sheets with same thickness exhibit phenomenon of springback angle reducing with an increasing grain size. Bending springback of micro metal foil indicates obvious size effect on foil thickness and grain size.

You might also be interested in these eBooks

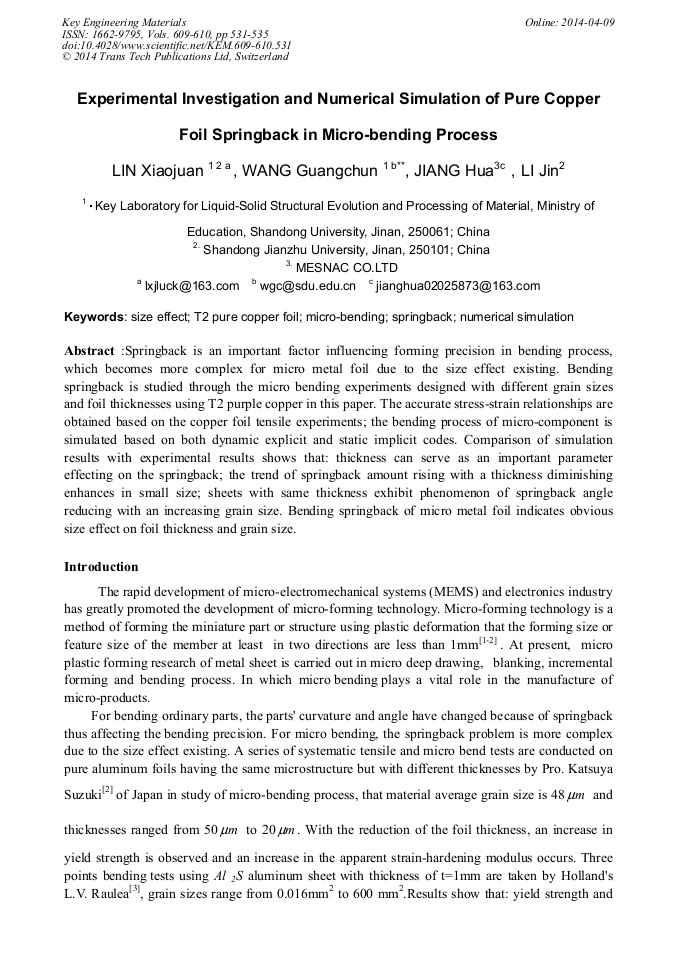

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 609-610)

Pages:

531-535

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.609-610.531

Citation:

Cite this paper

Online since:

April 2014

Authors:

Xiao Juan Lin, Guang Chun Wang*, Hua Jiang, Jin Li

Keywords:

Micro-Bending, Numerical Simulation, Size Effect, Springback, T2 Pure Copper Foil

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] U Engel, R Eckstein, Microforming-from basic research to its realization,J. Journal of Materials Processing Technology. 9(2002)35-44.

DOI: 10.1016/s0924-0136(02)00415-6

Google Scholar

[2] Suzuki K, Matsuki Y , Tensile and microbend tests of pure aluminum foils with different thicknesses ,J. Materials Science and Engineering . 513-514 (2009): 77-82.

DOI: 10.1016/j.msea.2009.01.045

Google Scholar

[3] L.V. Raulea, AMGoijaerts, Size effects in the processing of thin metal sheets,J. Journal of Materials Processing Tehnology,. 115 (2001): 44-48.

DOI: 10.1016/s0924-0136(01)00770-1

Google Scholar

[4] Jenn-Terng Gau, Principe C, Springback behavior of brass in micro sheet forming,J. Journal of Materials Processing Technology, 191(2007): 7-10.

DOI: 10.1016/j.jmatprotec.2007.03.035

Google Scholar

[5] WANG Chunju, GUO Bin, U bending process of T2 copper foil,J. Optics and Precision Engineering. 18(2010)2610-2615.

Google Scholar
