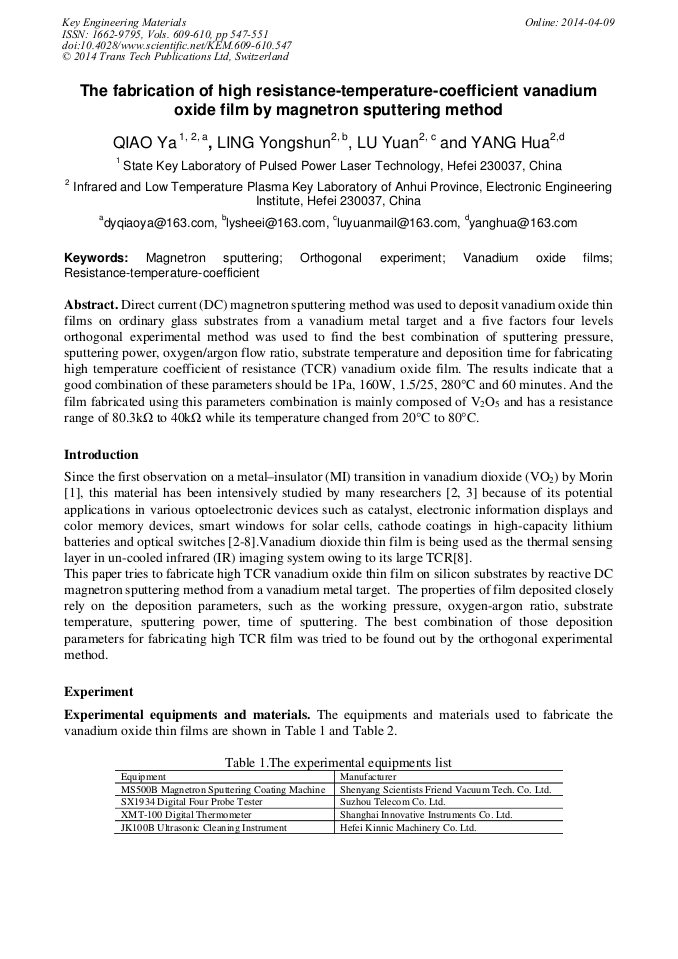

The Fabrication of High Resistance-Temperature-Coefficient Vanadium Oxide Film by Magnetron Sputtering Method

Abstract:

Direct current (DC) magnetron sputtering method was used to deposit vanadium oxide thin films on ordinary glass substrates from a vanadium metal target and a five factors four levels orthogonal experimental method was used to find the best combination of sputtering pressure, sputtering power, oxygen/argon flow ratio, substrate temperature and deposition time for fabricating high temperature coefficient of resistance (TCR) vanadium oxide film. The results indicate that a good combination of these parameters should be 1Pa, 160W, 1.5/25, 280°C and 60 minutes. And the film fabricated using this parameters combination is mainly composed of V₂O₅ and has a resistance range of 80.3kΩ to 40kΩ while its temperature changed from 20°C to 80°C.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 547-551
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.547
• Online since: April 2014
• Authors: Ya Qiao*, Yong Shun Ling, Yuan Lu, Hua Yang
• Keywords: Magnetron Sputtering, Orthogonal Experiment, Resistance-Temperature-Coefficient, Vanadium Oxide Films

References

[1] F.J. Morin, Phys. Rev. Lett. 3(1959)34–36.

[2] Chun-Hung Lai, Chung-Kwei Lin, Sheng-Wei Lee, et al., J. Alloys Comp. 536 (2013) S428-S431.

[3] S.H. Chen, et al., Infrared Phys. Tech. 45(2004)239-242.

[4] Zhangli Huang, Changhong Chen, Chaohong Lv, et al., J. Alloys Comp. 564(2013)158-161.

[5] J.B. Kana Kana, J.M. Ndjaka, et al., Applied Surface Science. 254(2008) 3959-3963.

[6] Wang Yao, et al., Energy Procedia. 12 (2011) 632 – 637.

[7] Yifu Zhang, Juecheng Zhang, Xiongzhi Zhang, et al., J. Alloys Comp. 570(2013)104-113.

[8] S.H. Chen, H. Ma, Xinjian Yi, et al., Sensors Actuators A. 115(2004)28–31.
