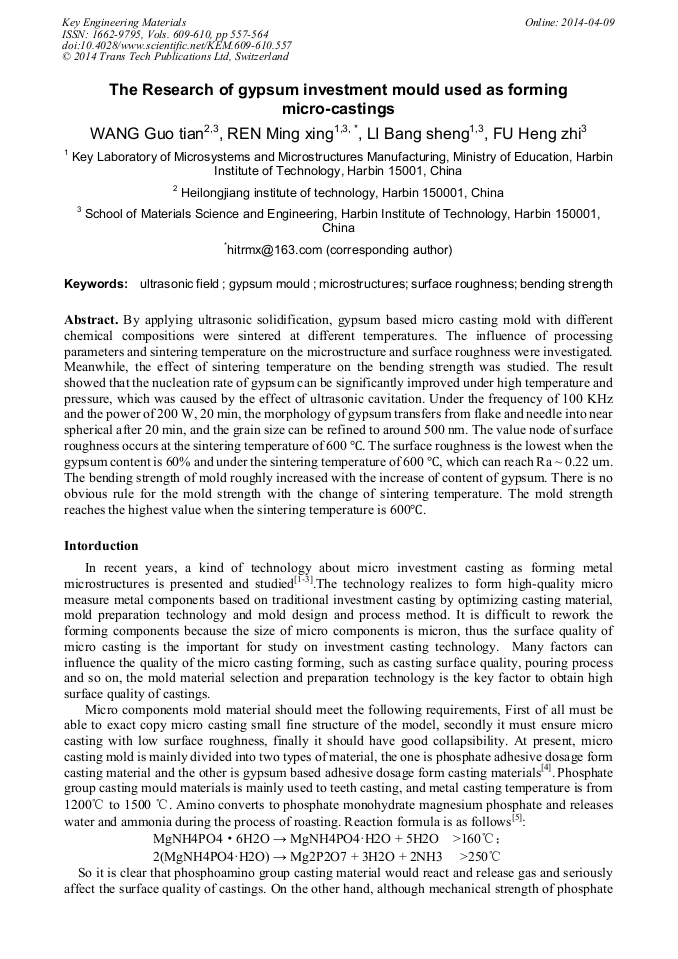

The Research of Gypsum Investment Mould Used as Forming Micro-Castings

Abstract:

By applying ultrasonic solidification, gypsum based micro casting mold with different chemical compositions were sintered at different temperatures. The influence of processing parameters and sintering temperature on the microstructure and surface roughness were investigated. Meanwhile, the effect of sintering temperature on the bending strength was studied. The result showed that the nucleation rate of gypsum can be significantly improved under high temperature and pressure, which was caused by the effect of ultrasonic cavitation. Under the frequency of 100 KHz and the power of 200 W, 20 min, the morphology of gypsum transfers from flake and needle into near spherical after 20 min, and the grain size can be refined to around 500 nm. The value node of surface roughness occurs at the sintering temperature of 600 °C. The surface roughness is the lowest when the gypsum content is 60% and under the sintering temperature of 600 °C, which can reach Ra ~ 0.22 um. The bending strength of mold roughly increased with the increase of content of gypsum. There is no obvious rule for the mold strength with the change of sintering temperature. The mold strength reaches the highest value when the sintering temperature is 600°C.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 557-564
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.557
• Online since: April 2014
• Authors: Guo Tian Wang, Ming Xing Ren*, Bang Sheng Li, Heng Zhi Fu
• Keywords: Bending Strength, Gypsum Mould, Microstructure, Surface Roughness (SR), Ultrasonic Field

References

[1] G. Baumeister, K. Mueller, R. Ruprecht, Production of metallic high aspect ratio microstructures by microcasting, Microsyst. Technol. 8(2002) 105-108.

DOI: 10.1007/s00542-001-0132-z

[2] S. Chung, S. Park, L. Lee, Replication techniques for a metal microcomponent having real 3D shape by microcasting process, Microsyst. Technol. 11(2005) 424-428.

DOI: 10.1007/s00542-004-0475-3

[3] H. Noguchi, A. Shinichi, Study on microcasting(1st Report) , Int. J. Jpn. Soc. Precis. Eng. 69(2003) 125~129.

[4] G. Baumeister, R. Ruprecht, J. Hausselt, Microcasting of parts made of metal alloys, Microsyst. Technol. 10(2004) 261-264.

DOI: 10.1007/s00542-003-0363-2

[5] G. Baumeister, J. Hausselt, S. Roth, R. Ruprecht, Microcasting, In D Löhe J. Haubelt(Eds. ), Spec Ed advanced micro and nanosystems: micro-engineering in metals and ceramics, Wiley-VCH. Weinheim, 2005, pp.357-393.

DOI: 10.1002/9783527616732.ch1

[6] S. Rath, G. Baumeister, J. Hausselt, Investments for Casting Micro Parts with Base Alloys , Microsyst. Technol. 12(2006) 258~266.

DOI: 10.1007/s00542-005-0047-1

[7] G. Baumeister, S. Rath, J. Hausselt, Microcasting of Al Bronze and a Gold Base Alloy Improved by Plaster-bonded Investment, Microsyst. Technol. 12(2006) 773-777.

DOI: 10.1007/s00542-006-0105-3

[8] P. Jiahuii, Z. Jianxin, C. Mingfeng, W. Li, Q. Jindong, Influence of macromolecule-type retarders on the hydration process of bullding gypsum and its retarding mechanism, J. Chin. Ceram. Soc. 36(2008) 896-900.

[9] H. Ohno, S. Nakano, O. Miyakawa, K. Watanabe, N. J. Shiokawa, Effects of Phase Transformations of Silicas and Calcium Sulfates on the Compressive Strength of Gypsum-bonded Investments at High Temperatures, J. Dent. Res. 61(1982) 1077~1082.

DOI: 10.1177/00220345820610091001

[10] T. Mori, Thermal Behavior of the Gypsum Binder in Dental Casting Investments. J. Dent. Res. 65(1986) 877~884.

DOI: 10.1177/00220345860650060201

[11] W. K. Luk , B. W. Darvell, Effect of Burnout Temperature on Strength of Gypsum-bonded Investments, Dent. Mater. 19(2003) 552~557.

DOI: 10.1016/s0109-5641(02)00104-5

[12] S. Matsuya , M. Yamane, Decomposition of Gypsum Bonded Investments, J. Dent. Res. 60(1981) 1418~1423.

DOI: 10.1177/00220345810600080501

[13] W. J. O'Brien , J. P. Nielsen, Decmposition of Gypsum Investment in the Presence of Carbon, J. Dent. Res. 38(1959) 541~547.
