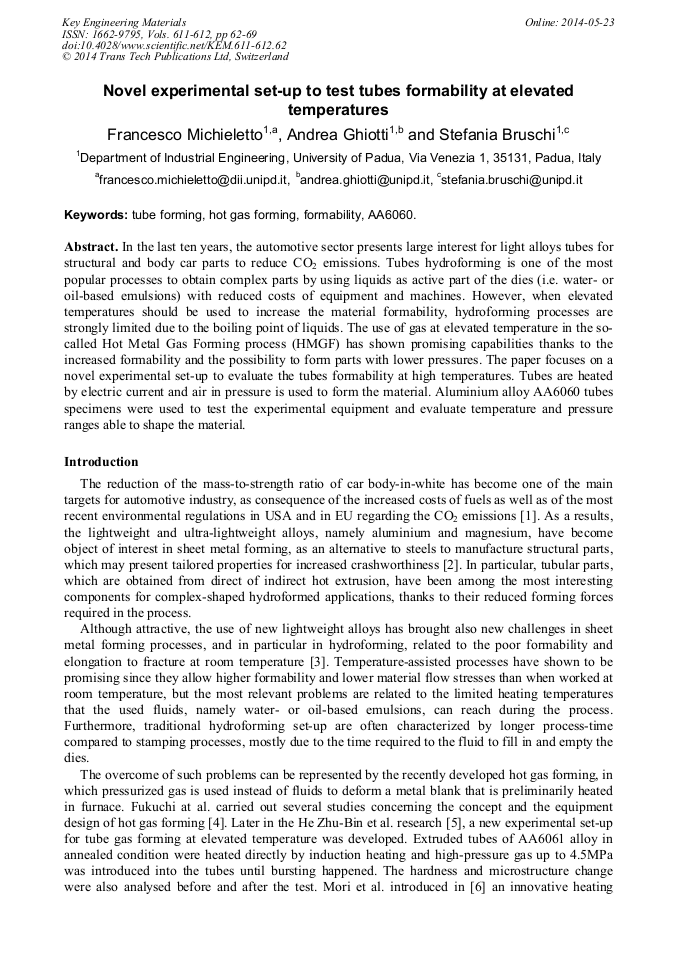

Novel Experimental Set-Up to Test Tubes Formability at Elevated Temperatures

Abstract:

In the last ten years, the automotive sector presents large interest for light alloys tubes for structural and body car parts to reduce CO₂ emissions. Tubes hydroforming is one of the most popular processes to obtain complex parts by using liquids as active part of the dies (i.e. water-or oil-based emulsions) with reduced costs of equipment and machines. However, when elevated temperatures should be used to increase the material formability, hydroforming processes are strongly limited due to the boiling point of liquids. The use of gas at elevated temperature in the so-called Hot Metal Gas Forming process (HMGF) has shown promising capabilities thanks to the increased formability and the possibility to form parts with lower pressures. The paper focuses on a novel experimental set-up to evaluate the tubes formability at high temperatures. Tubes are heated by electric current and air in pressure is used to form the material. Aluminium alloy AA6060 tubes specimens were used to test the experimental equipment and evaluate temperature and pressure ranges able to shape the material.

• Periodical: Key Engineering Materials (Volumes 611-612)
• Pages: 62-69
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.611-612.62
• Online since: May 2014
• Authors: Francesco Michieletto*, Andrea Ghiotti, Stefania Bruschi
• Keywords: AA6060, Formability, Hot Gas Forming, Tube Forming

References

[1] European Commission, Amending Regulation (EC) No 443/2009 to define the modalities for reaching the 2020 target to reduce CO2 emissions from new passenger cars, Regulation of the European Parliament and of the Council, Brussels, (2012).

[2] H. Karbasian, A. E. Tekkaya, A review on hot stamping, J. Mater. Process. Technol., 210 (2010) 2103-2118.

DOI: 10.1016/j.jmatprotec.2010.07.019

[3] A. Ghiotti, S. Bruschi, Formability of aluminium alloy sheets at elevated temperatures, Proc. of 10th ICTP (2011).

[4] F. Fukuchi, N. Hayashi, T. Ogawa, T. Yokoyama, O. Hori, Development of aluminium auto motive parts technologies for mass-production, J. Japan Inst. Light Metals. 55 (2005) 147-152, in Japanase.

DOI: 10.2464/jilm.55.147

[5] Z. He, X. Fan, F. Shao, K. Zheng, Z. Wang, S. Yuan, Formability and microstructure of AA6061 Al alloy tube for hot metal gas forming at elevated temperature, Trans. Nonferrous Met. Soc. China 22 (2012) 364-369.

DOI: 10.1016/s1003-6326(12)61732-4

[6] T. Maeno, K. Mori, K. Fujimoto, Development of the Gas Bulging Process for Aluminium Alloy Tube Using Resistance Heating, Key Eng. Mater. 410/411 (2009) 315-323.

DOI: 10.4028/www.scientific.net/kem.410-411.315

[7] T. Maeno, K. Mori, C. Unou, Optimisation of condition in Hot Gas Buging of Aluminium Alloy Tube using resistance heating set into dies, Key Eng. Mater. 473 (2011) 69-74.

DOI: 10.4028/www.scientific.net/kem.473.69

[8] T. Maeno, K. Mori, C. Unou, Influence of Initial wall thickness of tube on formability in Hot Gas Bulging of aluminium alloy tube using pressure of sealed air and resistance heating, Steel Res. Int. Spec. Ed. (2011) 475-480.

DOI: 10.4028/www.scientific.net/kem.473.69

[9] T. Maeno, K. Mori, K. Adachi, Gas forming of ultra-high strength steel hollow part using air filled into sealed tube and resistance heating, J. Mater. Process. Technol. 214 (2014) 97-105.

DOI: 10.1016/j.jmatprotec.2013.08.004
