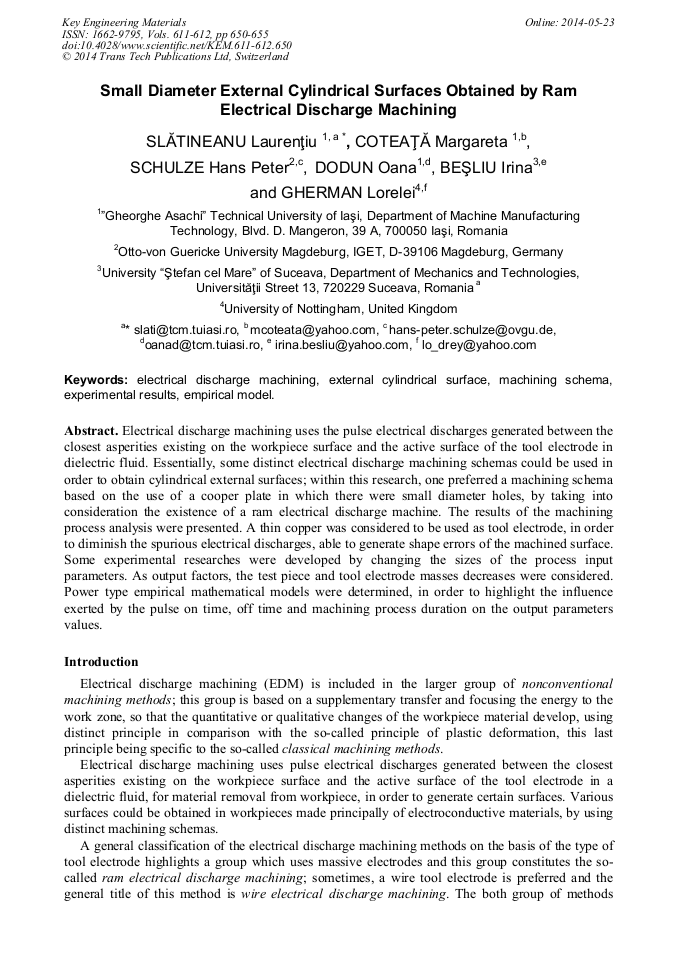

Small Diameter External Cylindrical Surfaces Obtained by Ram Electrical Discharge Machining

Abstract:

Electrical discharge machining uses the pulse electrical discharges generated between the closest asperities existing on the workpiece surface and the active surface of the tool electrode in dielectric fluid. Essentially, some distinct electrical discharge machining schemas could be used in order to obtain cylindrical external surfaces; within this research, one preferred a machining schema based on the use of a cooper plate in which there were small diameter holes, by taking into consideration the existence of a ram electrical discharge machine. The results of the machining process analysis were presented. A thin copper was considered to be used as tool electrode, in order to diminish the spurious electrical discharges, able to generate shape errors of the machined surface. Some experimental researches were developed by changing the sizes of the process input parameters. As output factors, the test piece and tool electrode masses decreases were considered. Power type empirical mathematical models were determined, in order to highlight the influence exerted by the pulse on time, off time and machining process duration on the output parameters values.

• Periodical: Key Engineering Materials (Volumes 611-612)
• Pages: 650-655
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.611-612.650
• Online since: May 2014
• Authors: Laurenţiu Slătineanu*, Margareta Coteaţă, Hans Peter Schulze, Oana Dodun, Irina Besliu, Lorelei Gherman
• Keywords: Electrical Discharge Machining (EDM), Empirical Model, Experimental Results, External Cylindrical Surface, Machining Schema

References

[1] G. Brabie, Specific phenomena during micro forming processes, Optimum Technologies, Technologic Systems and Materials, TSTM 12(2) (2006) 11-15.

[2] G. Creţu, Fundamentals of the experimental research. Laboratory handbook (in Romanian), Technical University Gheorghe Asachi, Iaşi (Romania), (1992).

[3] Y. H. Guu, H. Hocheng, Effects of workpiece rotation on machinability during electrical-discharge machining, Materials and Manufacturing Processes 16(1) (2001) 91-101.

DOI: 10.1081/amp-100103699

[4] M.J. Haddad, F., Alihoseini, M. Hadi, M. Haddad, A. Fadaei Tehrani, A. Mohammadi, An experimental investigation of cylindrical wire electrical discharge turning process. International Journal of Advanced Manufacturing Technology 46(9-12) (2010).

DOI: 10.1007/s00170-009-2171-z

[5] Qu, J. Development of cylindrical wire electrical discharge machining process and investigation of surface integrity and mechanical property of EDM surface layers. North Carolina State University (2002).

[6] L. Santo, F. Quadrini, F. Trovalusci, L. Slătineanu, O. Dodun, Micro-punching experiments on 20 μm thick sheet of pure aluminum. Nonconventional Technologies Review 3(2007) 89-92.

[7] E. Uhlmann, S. Piltz, D. Oberschmidt, Machining of micro rotational parts by wire electrical discharge grinding, Production Engineering. Research and Development 2(3) (2008) 227-233.

DOI: 10.1007/s11740-008-0094-4
