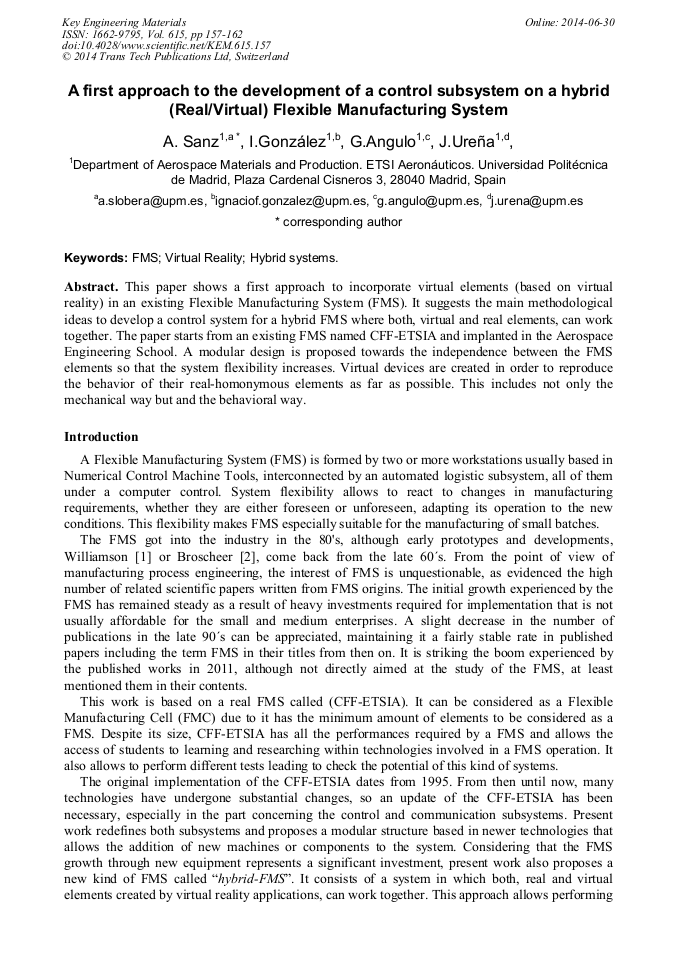

A First Approach to the Development of a Control Subsystem on a Hybrid (Real/Virtual) Flexible Manufacturing System

Abstract:

This paper shows a first approach to incorporate virtual elements (based on virtual reality) in an existing Flexible Manufacturing System (FMS). It suggests the main methodological ideas to develop a control system for a hybrid FMS where both, virtual and real elements, can work together. The paper starts from an existing FMS named CFF-ETSIA and implanted in the Aerospace Engineering School. A modular design is proposed towards the independence between the FMS elements so that the system flexibility increases. Virtual devices are created in order to reproduce the behavior of their real-homonymous elements as far as possible. This includes not only the mechanical way but and the behavioral way.

• Periodical: Key Engineering Materials (Volume 615)
• Pages: 157-162
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.615.157
• Online since: June 2014
• Authors: Alfredo Sanz-Lobera*, Ignacio Gonzalez, Gabriel Angulo, Justo Ureña
• Keywords: FMS, Hybrid Systems, Virtual Reality (VR)

References

[1] Williamson, G., 1967. System 24. A new concept of manufacture Mach Tools Proc 8th Int Des & Res, MTDR. Conf, Pergamon Press, London, 327-376.

[2] Broscheer, B.C., 1968. linked-line NC goes to work, Metalworking Production, 41-47.

[3] Perez Acal, A., Sanz Lobera, A., 2007. Virtual Reality Applied to a Numerical Simulation Milling Machine Control, Int J on Interactive Design and Manufacturing 3, 1. : 145-154.

DOI: 10.1007/s12008-007-0016-2

[4] Yasuda, G., 2011. Model Based Design and Implementation of Hierarchical and Distributed Control for Robotic Flexible Manufacturing Cells using Petri Nets, Adv Mats Res, vol 211-212. pp.856-860.

DOI: 10.4028/www.scientific.net/amr.211-212.856

[5] Prakash, A., Tiwari M.K., Shankar, R., 2008. Optimal job sequence determination and operation machine allocation in flexible manufacturing systems: an approach using adaptive hierarchical ant colony algorithm, J Intell Manuf 19, 2 pp.161-173.

DOI: 10.1007/s10845-008-0071-y

[6] Lu M.S., Liu Y.J., 2011. Dynamic dispatching for a flexible manufacturing system based on fuzzy logic, Int J Adv Manuf Tech 54, 9-12. : 1057-1065.

DOI: 10.1007/s00170-010-2993-8

[7] HW Group, 2013. http: /www. hw-group. com.

[8] DRAE, 2001. Dictionary of the Spanish language, 22th edition, Royal Spanish Academy.

[9] Rubio, E.M., Sanz-Lobera, A., Sebastian, M.A., 2005. Virtual Reality Applications for the Next Generation Manufacturing, Int J of Computer Integrated Manufacturing 7, 18. 601-609.

DOI: 10.1080/09511920500069259

[10] Sanz-Lobera A., Rubio-Alvir E.M., Martinez-Murillo C., Sebastian-Perez M.A., 2006. Manufacturing Processes by Virtual Reality Analysis, Materials Science Forum, vol 526, pp.139-144.

[11] Kadir A.A., Xu, X., Haemmerle, E., 2011. Virtual machine tools and virtual machining-A technological review. Robotics and computer-integrated manufacturing, 27 (3), pp.494-508, doi: 10. 1016/j. rcim. 2010. 10. 003.

DOI: 10.1016/j.rcim.2010.10.003

[12] Nee, A. Y. C., Ong, S. K., Chryssolouris, G., 2012. Augmented reality applications in design and manufacturing, 62nd General Assembly of CIRP, CIRP Annals-manufacturing technology 61(2) pp.657-679 , doi: 10. 1016/j. cirp. 2012. 05. 010.

DOI: 10.1016/j.cirp.2012.05.010

[13] 3DVIA Virtools - Dassault Systemes, 2013. www. virtools. com.
