The Optimization Design on Transmission Mechanism of Tightening Machine

Abstract:

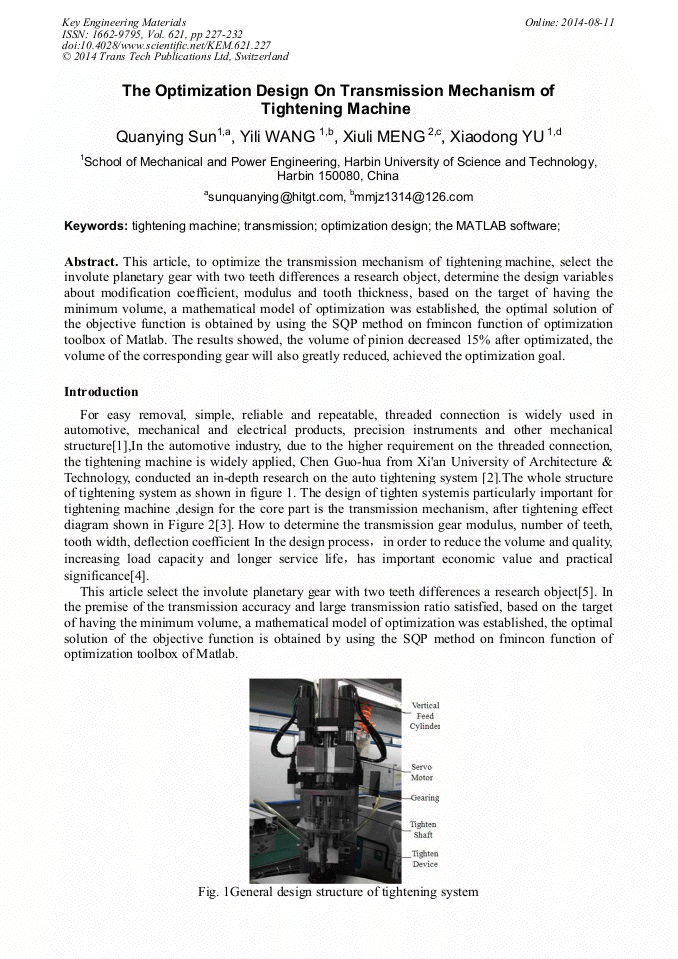

This article, to optimize the transmission mechanism of tightening machine, select the involute planetary gear with two teeth differences a research object, determine the design variables about modification coefficient, modulus and tooth thickness, based on the target of having the minimum volume, a mathematical model of optimization was established, the optimal solution of the objective function is obtained by using the SQP method on fmincon function of optimization toolbox of Matlab. The results showed, the volume of pinion decreased 15% after optimizated, the volume of the corresponding gear will also greatly reduced, achieved the optimization goal.
