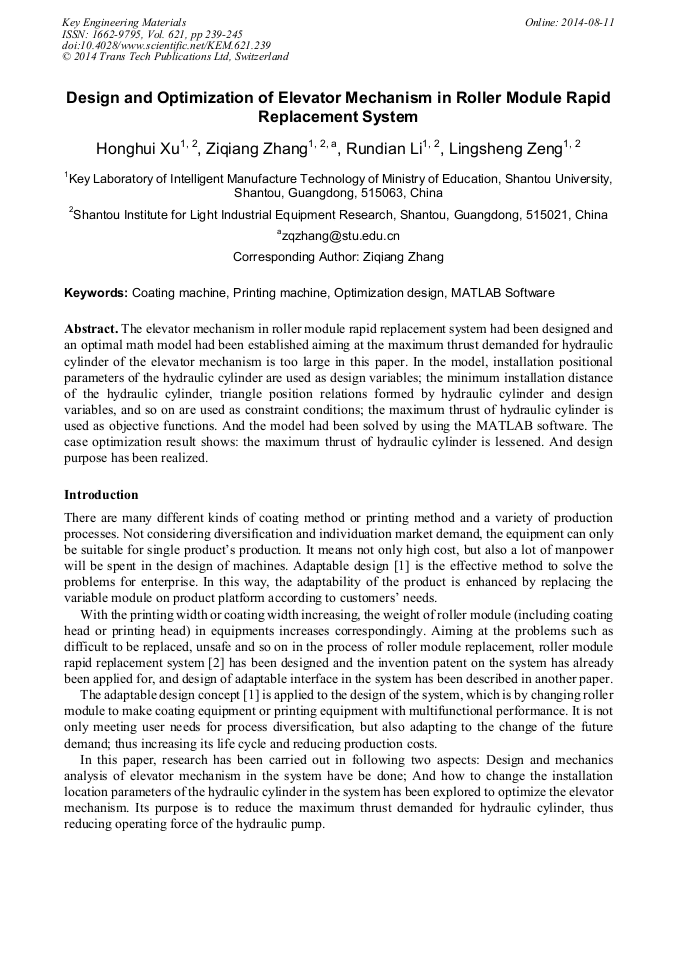

Design and Optimization of Elevator Mechanism in Roller Module Rapid Replacement System

Abstract:

The elevator mechanism in roller module rapid replacement system had been designed and an optimal math model had been established aiming at the maximum thrust demanded for hydraulic cylinder of the elevator mechanism is too large in this paper. In the model, installation positional parameters of the hydraulic cylinder are used as design variables; the minimum installation distance of the hydraulic cylinder, triangle position relations formed by hydraulic cylinder and design variables, and so on are used as constraint conditions; the maximum thrust of hydraulic cylinder is used as objective functions. And the model had been solved by using the MATLAB software. The case optimization result shows: the maximum thrust of hydraulic cylinder is lessened. And design purpose has been realized.

• Periodical: Key Engineering Materials (Volume 621)
• Pages: 239-245
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.621.239
• Online since: August 2014
• Authors: Hong Hui Xu, Zi Qiang Zhang*, Run Dian Li, Ling Sheng Zeng
• Keywords: Coating Machine, MATLAB Software, Optimization Design, Printing Machine

References

[1] P. Gu, M. Hashemian and A.Y.C. Nee: CIRP Annals - Manufacturing Technology, Vol. 53 (2004) No. 2, p.539.

[2] H.H. Xu, Z.Q. Zhang, R.D. Li and L.S. Zeng: China patent 201410004060. 0 (2014). (In Chinese).

[3] X. Qin: Printing Field, (2009) No. 8, p.1. (In Chinese).

[4] J. Yu and J. Zhou: Storage Transportation & Preservation of Commodities, Vol. 26 (2004) No. 5, p.41. (In Chinese).

[5] M. Qiu: China Packaging News, Vol. 8 (2005) No. 4. (In Chinese).

[6] Z.Y. Zhang: Proficient in MATLAB 6. 5 (Beijing University of Aeronautics and Astronautics Press, China 2005). (In Chinese).

[7] H. Xu: Handbook of Mechanical Design× Hydraulic Drive and Control (China Machine Press, China 2010). (In Chinese).
