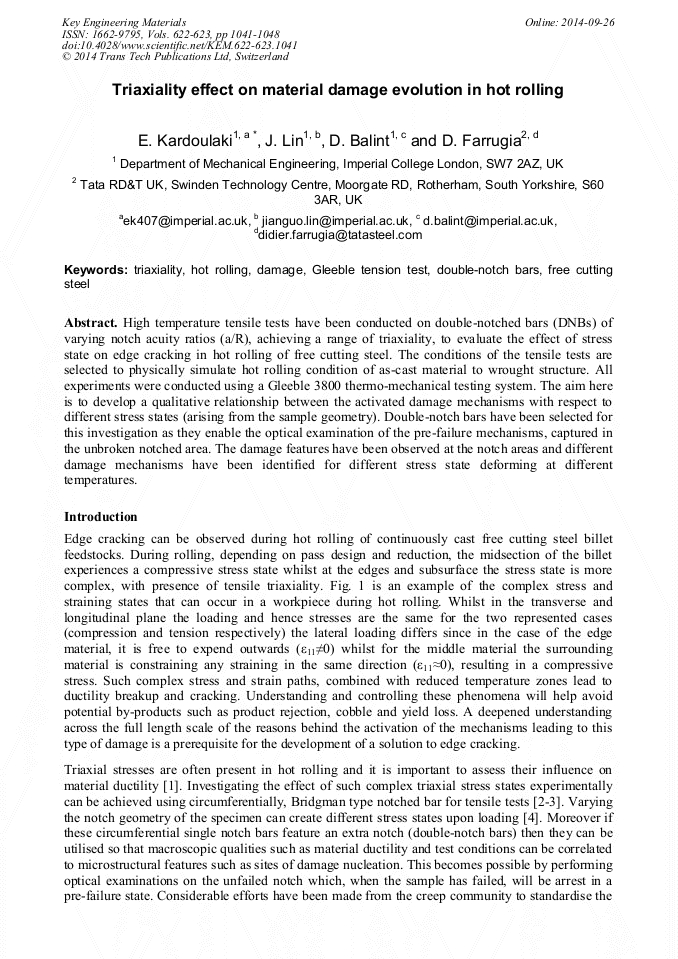

Triaxiality Effect on Material Damage Evolution in Hot Rolling

Abstract:

High temperature tensile tests have been conducted on double-notched bars (DNBs) of varying notch acuity ratios (a/R), achieving a range of triaxiality, to evaluate the effect of stress state on edge cracking in hot rolling of free cutting steel. The conditions of the tensile tests are selected to physically simulate hot rolling condition of as-cast material to wrought structure. All experiments were conducted using a Gleeble 3800 thermo-mechanical testing system. The aim here is to develop a qualitative relationship between the activated damage mechanisms with respect to different stress states (arising from the sample geometry). Double-notch bars have been selected for this investigation as they enable the optical examination of the pre-failure mechanisms, captured in the unbroken notched area. The damage features have been observed at the notch areas and different damage mechanisms have been identified for different stress state deforming at different temperatures.

• Periodical: Key Engineering Materials (Volumes 622-623)
• Pages: 1041-1048
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.622-623.1041
• Online since: September 2014
• Authors: Erofili Kardoulaki*, Jian Guo Lin, Daniel S. Balint, Didier Farrugia
• Keywords: Damage, Double-Notch Bars, Free Cutting Steel, Gleeble Tension Test, Hot Rolling, Triaxiality

References

[1] A.D. Foster, J. Lin, D.C.J. Farrugia, T.A. Dean, A Stress State Dependent Damage Model for the High Temperature Failure of Free-Cutting Steels, Journal of Multiscale Modelling. 1 (2009) 369–387.

DOI: 10.1142/s1756973709000189

[2] M.S. Mirza, D.C. Barton, P. Church, The effect of stress triaxiality and strain-rate on the fracture characteristics of ductile metals, Journal of Materials Science. 31 (1996) 453–461.

DOI: 10.1007/bf01139164

[3] P.W. Bridgman, Studies in large plastic flow and fracture with special emphasis on the effects of hydrostatic pressure, McGraw-Hill. (1952).

DOI: 10.1126/science.115.2990.424

[4] Y. Bai, X. Teng, T. Wierzbicki, On the Application of Stress Triaxiality Formula for Plane Strain Fracture Testing, Journal of Engineering Materials and Technology. 131 (2009) 1–10.

DOI: 10.1115/1.3078390

[5] B. Al-Abed, R. Timmins, G. a. Webster, M.S. Loveday, Validation of a Code of Practice for notched bar creep rupture testing: procedures and interpretation of data for design, Materials at High Temperatures. 16 (1999) 143–158.

DOI: 10.1179/mht.1999.014

[6] G.A. Webster, S.R. Holdsworth, M.S. Loveday, K. Nikbin, I.J. Perrin, H. Purper, et al., A Code of Practice for conducting notched bar creep tests and for interpreting the data, Fatigue Fracture of Engineering Materials and Structures. 27 (2004).

DOI: 10.1111/j.1460-2695.2004.00765.x

[7] B.F. Dyson, M.S. Loveday, Creep Fracture in Nimonic 80A Under Triaxial Tensile Stressing, International Union of Theoretical and Applied Mathermatics. (1981) 406–421.

DOI: 10.1007/978-3-642-81598-0_27

[8] A. Othman, J. Lin, D.R. Hayhurst, B.F. Dyson, Comparison of creep rupture lifetimes of single and double notched tensile bars, Acta Metallurgica. 41 (1993) 1215–1222.

DOI: 10.1016/0956-7151(93)90170-w

[9] A.M. Othman, B.F. Dyson, D.R. Hayhurst, J. Lin, Continuum Damage Mechanics Modelling of Circumferentially Notched Tension Bars Undergoing Tertiary Creep with Physically-Based Constitutive Equations, Acta Metall. Mater. 42 (1994) 597–611.

DOI: 10.1016/0956-7151(94)90256-9

[10] P.S. Khadkikar, J.J. Lewandowski, K. Vedula, C. Western, Notch Effects on Tensile Behavior of Ni3Al and Ni3Al + B, Matallurgical Transactions A. 20 (1989) 1247–1255.

[11] T. Børvik, O.S. Hopperstad, T. Berstad, On the influence of stress triaxiality and strain rate on the behaviour of a structural steel. Part II. Numerical study, European Journal of Mechanics - A/Solids. 22 (2003) 15–32.

DOI: 10.1016/s0997-7538(02)00005-0

[12] Y. Bao, Dependence of ductile crack formation in tensile tests on stress triaxiality, stress and strain ratios, Engineering Fracture Mechanics. 72 (2005) 505–522.

DOI: 10.1016/j.engfracmech.2004.04.012

[13] J. Lin, Y. Liu, T.A. Dean, A Review on Damage Mechanisms, Models and Calibration Methods under Various Deformation Conditions, International Journal of Damage Mechanics. 14 (2005) 299–319.

DOI: 10.1177/1056789505050357

[14] A.D. Foster, J. Lin, D.C.J. Farrugia, T.A. Dean, Experimental investigation of the spatial variation in viscoplastic response of free-machining steels in hot rolling conditions, Journal of Materials Processing Technology. 177 (2006) 497–500.

DOI: 10.1016/j.jmatprotec.2006.03.219
