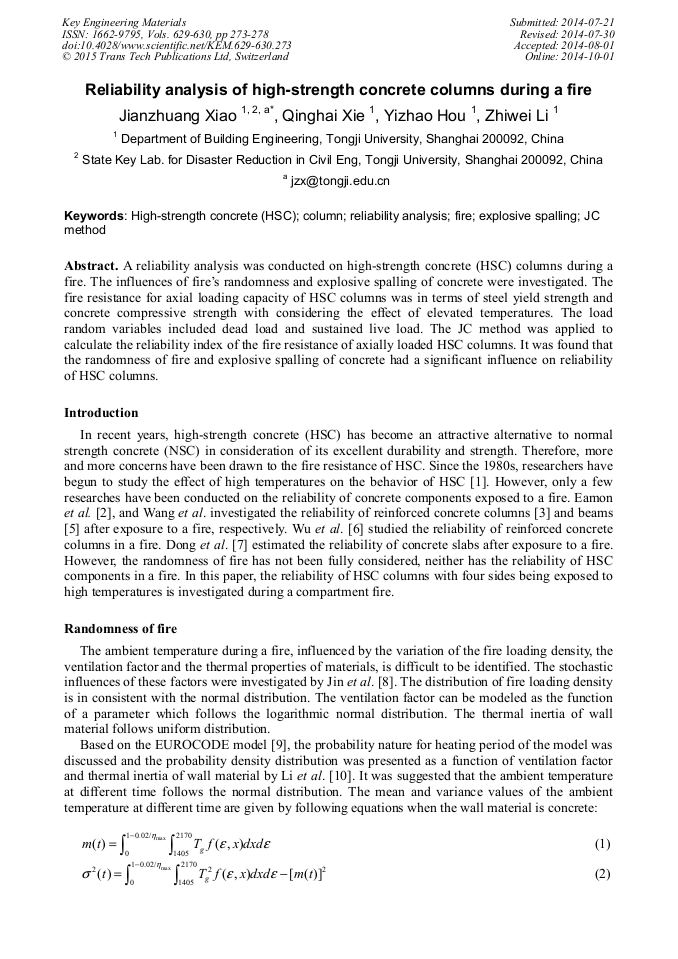

Reliability Analysis of High-Strength Concrete Columns during a Fire

Abstract:

A reliability analysis was conducted on high-strength concrete (HSC) columns during a fire. The influences of fire’s randomness and explosive spalling of concrete were investigated. The fire resistance for axial loading capacity of HSC columns was in terms of steel yield strength and concrete compressive strength with considering the effect of elevated temperatures. The load random variables included dead load and sustained live load. The JC method was applied to calculate the reliability index of the fire resistance of axially loaded HSC columns. It was found that the randomness of fire and explosive spalling of concrete had a significant influence on reliability of HSC columns.

• Periodical: Key Engineering Materials (Volumes 629-630)
• Pages: 273-278
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.629-630.273
• Online since: October 2014
• Authors: Jian Zhuang Xiao*, Qing Hai Xie, Yi Zhao Hou, Zhi Wei Li
• Keywords: Column, Explosive Spalling, Fire, High-Strength Concrete (HSC), JC Method, Reliability Analysis

References

[1] L.T. Phan, N.J. Carino, Review of mechanical properties of HSC at elevated temperature, J Mater Civil Eng. 10 (1998) 58-64.

DOI: 10.1061/(asce)0899-1561(1998)10:1(58)

[2] C.D. Eamon, E. Jensen, Reliability analysis of reinforced concrete columns exposed to fire, Fire Safety Journal. 62 (2013) 221-229.

DOI: 10.1016/j.firesaf.2013.10.002

[3] Z.Q. Wang, L.L. Bai, M. Qiao, H.Q. Lu, Reliability of four-face fired reinforcement concrete columns, Journal of Huazhong University of Science & Technology (Natural Science Edition). 12 (2008) 125-127 (in Chinese).

[4] C.D. Eamon, E. Jensen, Reliability analysis of prestressed concrete beams exposed to fire, Engineering Structures. 43 (2012) 69-77.

DOI: 10.1016/j.engstruct.2012.05.016

[5] C.D. Eamon, E. Jensen, Reliability analysis of RC beams exposed to fire, Journal of Structural Engineering. 139 (2013) 212-220.

DOI: 10.1061/(asce)st.1943-541x.0000614

[6] B. Wu, W. Feng, B. Wen, Reliability index of axially loaded concrete columns in fire, Journal of Disaster Prevention and Mitigation Engineering. 32 (2012) 38-44(in Chinese).

[7] Y.L. Dong, W.C. Fan, Q.G. Wang, B.G. Yang, Study on residual load-bearing capacity and reliability index of reinforced concrete slab post-fire, Fire Safety Science. 5 (1996) 7-11(in Chinese).

[8] F. Jin, G.Q. Li, Parameters randomness of parametric model of fully-developed compartment fire, Journal of Architecture and Civil Engineering. 23 (2006) 44-48(in Chinese).

[9] Eurocode 1: Actions on Structures. ENV 1991, Part 1–2: General Actions—Actions on Structures Exposed to Fire, Brussels: European Committee for Standardization (2002).

DOI: 10.1002/9783433601570.fmatter

[10] G.Q. Li, F. Jin, W.Y. Wang, Study on stochastic property of temperature-time process of fully-developed compartment fire, Journal of Disaster Prevention and Mitigation Engineering. 28 (2008) 261-267(in Chinese).

[11] V.K.R. Kodur, M.A. Sultan, Effect of temperature on thermal properties of high-strength concrete, Journal of Materials in Civil Engineering. 15 (2003) 101-107.

DOI: 10.1061/(asce)0899-1561(2003)15:2(101)

[12] L.T. Phan, N.J. Carino, Effects of test conditions and mixture proportions on behavior of high-strength concrete exposed to high temperature, ACI Mater J. 99 (2002) 54-62.

DOI: 10.14359/11317

[13] J. Z Xiao, H. Falkner, On residual strength of high-performance concrete with and without polypropylene fibers at elevated temperatures, Fire Safety Journal. 41 (2006) 115-121.

DOI: 10.1016/j.firesaf.2005.11.004

[14] B. Wu, J. Yuan, Explosive spalling rules of high strength concrete under high temperature and calculation for temperature field of column cross section, Journal of Natural Disasters. 11 (2002) 65-69(in Chinese).

[15] J.Z. Xiao, G. König, Study on concrete at high temperature in China-An Overview, Fire Safety Journal. 39 (2004) 89-103.

DOI: 10.1016/s0379-7112(03)00093-6

[16] H.T. Hu, Y.L. Doug, Research on strength and deformation of high-strength concrete at elevated temperature, China Civil Engineering Journal. 35 (2002) 44-47(in Chinese).

[17] B. Wu, Y.H. Liang, Statistic analysis of strengths of concrete and steel bars at elevated temperature, Journal of Natural Disasters. 19 (2010) 136-142(in Chinese).

[18] H.L. Liu, H.Y. Song, Q.N. Lu, Discussion on variation factor of high-strength concrete cube strength. Journal of Harbin University of Commerce (Natural Sciences Edition). 20 (2004) 604-607(in Chinese).

[19] L. Chang, S.L. Wang, Z.X. Wang, Calibration of the steel strength standard value and the partial coefficient, Quality of Civil Engineering and Construction. 30 (2012) 61-64(in Chinese).
