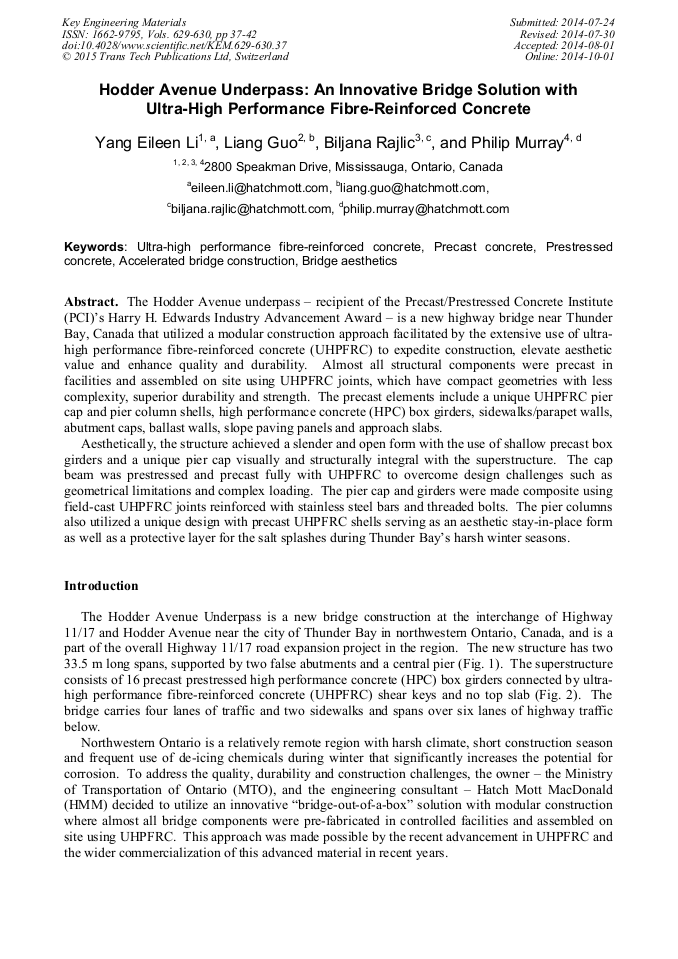

Hodder Avenue Underpass: An Innovative Bridge Solution with Ultra-High Performance Fibre-Reinforced Concrete

Abstract:

The Hodder Avenue underpass – recipient of the Precast/Prestressed Concrete Institute (PCI)’s Harry H. Edwards Industry Advancement Award – is a new highway bridge near Thunder Bay, Canada that utilized a modular construction approach facilitated by the extensive use of ultra-high performance fibre-reinforced concrete (UHPFRC) to expedite construction, elevate aesthetic value and enhance quality and durability. Almost all structural components were precast in facilities and assembled on site using UHPFRC joints, which have compact geometries with less complexity, superior durability and strength. The precast elements include a unique UHPFRC pier cap and pier column shells, high performance concrete (HPC) box girders, sidewalks/parapet walls, abutment caps, ballast walls, slope paving panels and approach slabs. Aesthetically, the structure achieved a slender and open form with the use of shallow precast box girders and a unique pier cap visually and structurally integral with the superstructure. The cap beam was prestressed and precast fully with UHPFRC to overcome design challenges such as geometrical limitations and complex loading. The pier cap and girders were made composite using field-cast UHPFRC joints reinforced with stainless steel bars and threaded bolts. The pier columns also utilized a unique design with precast UHPFRC shells serving as an aesthetic stay-in-place form as well as a protective layer for the salt splashes during Thunder Bay’s harsh winter seasons.

• Periodical: Key Engineering Materials (Volumes 629-630)
• Pages: 37-42
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.629-630.37
• Online since: October 2014
• Authors: Yang Eileen Li*, Liang Guo, Biljana Rajlic, Philip Murray
• Keywords: Accelerated Bridge Construction, Bridge Aesthetics, Precast Concrete, Prestressed Concrete, Ultra-High Performance Fibre-Reinforced Concrete

References

[1] Russell, H. G. and Graybeal, B. A.: Ultra-High Performance Concrete: A State-of-the-Art Report for the Bridge Community, U.S. Department of Transportation, Federal Highway Administration, U.S. (2013).

[2] Association Francaise de Genie Civil: Ultra High Performance Fibre-Reinforced Concretes Recommendations, Revised edition, June 2013 (2013).

[3] Collins, M. P. and Mitchell, D.: Prestressed Concrete Structures, Prentice Hall, Englewood Cliffs, N.J., U.S. (1991).

[4] Hewson, N. R.: Prestressed Concrete Bridges: Design and Construction, Thomas Telford Ltd., London, UK (2003).

[5] Theodor, N.C., and Al-Bazi, G.: A practical guide to the design of post-tensioned decks, Ontario Ministry of Transportation, St. Catharines, ON., Canada (1997).
