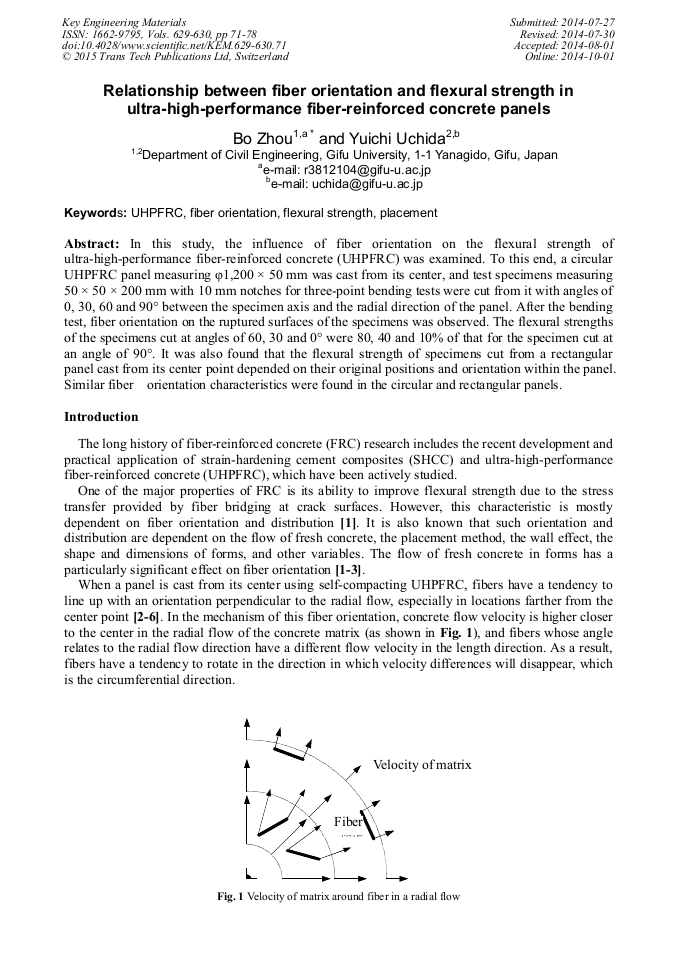

Relationship between Fiber Orientation and Flexural Strength in Ultra-High-Performance Fiber-Reinforced Concrete Panels

Abstract:

In this study, the influence of fiber orientation on the flexural strength of ultra-high-performance fiber-reinforced concrete (UHPFRC) was examined. To this end, a circular UHPFRC panel measuring φ1,200 × 50 mm was cast from its center, and test specimens measuring 50 × 50 × 200 mm with 10 mm notches for three-point bending tests were cut from it with angles of 0, 30, 60 and 90° between the specimen axis and the radial direction of the panel. After the bending test, fiber orientation on the ruptured surfaces of the specimens was observed. The flexural strengths of the specimens cut at angles of 60, 30 and 0° were 80, 40 and 10% of that for the specimen cut at an angle of 90°. It was also found that the flexural strength of specimens cut from a rectangular panel cast from its center point depended on their original positions and orientation within the panel. Similar fiber orientation characteristics were found in the circular and rectangular panels.

• Periodical: Key Engineering Materials (Volumes 629-630)
• Pages: 71-78
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.629-630.71
• Online since: October 2014
• Authors: Bo Zhou*, Yuichi Uchida
• Keywords: Fiber Orientation, Flexural Strength, Placement, UHPFRC

References

[1] Stahli, P., Custer, R. and Van Mier, J. G. M.: On flow properties, fiber distribution, fiber orientation　and flexural behavior of FRC, Materials and Structures, Vol. 41, No. 1, p.189 – 196, (2008).

DOI: 10.1617/s11527-007-9229-x

[2] Kang, S. T., Park, J. J., Ryu, G. S. and Kim, S. W.: Investigation of fiber alignment of UHSFRC in flexural members. Proceedings of 8th International Symposium on Utilization of High-strength and High-performance Concrete, Tokyo, p.709 – 714, (2008).

[3] Barnett, S. J., Lataste, J. F., Parry, T., Millard, S. G. and Soutsos, M. N.: Assessment of fiber orientation in ultra high performance fiber reinforced concrete and its effect on flexural strength, Materials and Structures, Vol. 43, No. 7, p.1009 – 1023, (2010).

DOI: 10.1617/s11527-009-9562-3

[4] Boulekbache, B., Hamrat, M., Chemrouk, M. and Amziane, S.: Flowability of fiber-reinforced concrete and its effect on the mechanical properties of the material, Construction Building Materials, Vol. 24, No. 9, p.1664 – 1671, (2010).

DOI: 10.1016/j.conbuildmat.2010.02.025

[5] Kwon, S. H., Kang, S. T., Lee, B. Y. and Kim, J. K.: The variation of flow-dependent tensile behavior in radial flow dominant placing of Ultra High Performance Fiber Reinforced Cementitious Composites (UHPFRCC), Construction Building Materials, Vol. 33, p.109 – 121, (2012).

DOI: 10.1016/j.conbuildmat.2012.01.006

[6] Amin, A., Joaquim, A. O. B. and Vitor, M. C. F. C: Relation between fiber distribution and post-cracking behavior in steel fiber reinforced self-compacting concrete panels, Cement and Concrete Research, Vol. 51, (2013).

DOI: 10.1016/j.cemconres.2013.04.009

[7] Zhou, B. and Uchida, Y.: Fiber Orientation in Ultra-high-performance Fiber-reinforced Concrete and Related Visualization. Proceedings of the Japan Concrete Institute, Vol. 34, No. 1, p.268 – 273, 2012 (in Japanese).

[8] Japan Concrete Institute Standard, Method of test for load-displacement curve of fiber reinforced　concrete by use of notched beam (JCI-S-002-2003).
