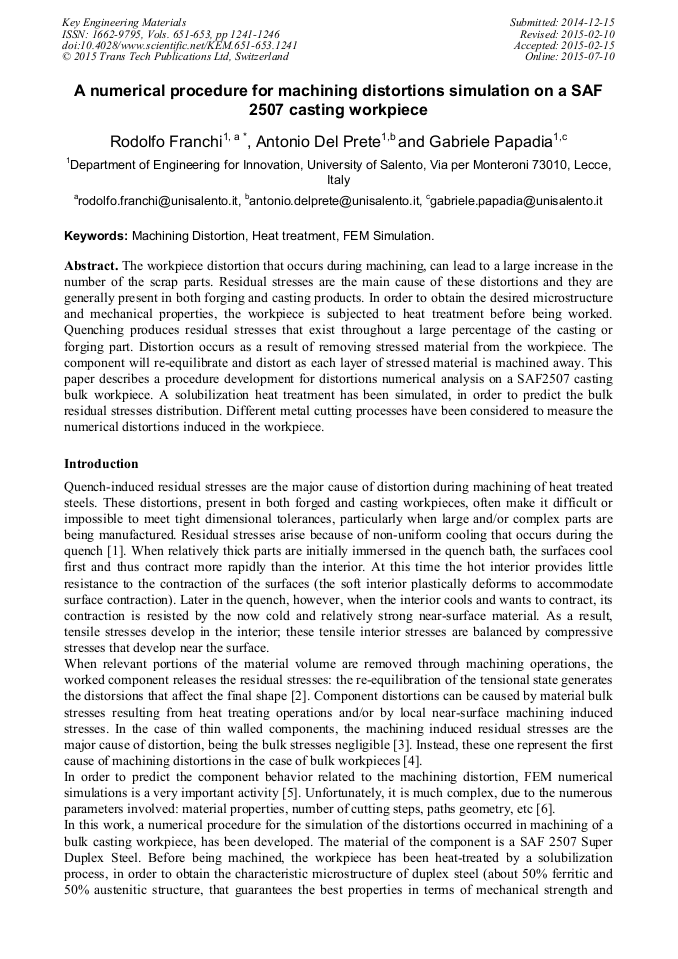

A Numerical Procedure for Machining Distortions Simulation on a SAF 2507 Casting Workpiece

Abstract:

The workpiece distortion that occurs during machining, can lead to a large increase in the number of the scrap parts. Residual stresses are the main cause of these distortions and they are generally present in both forging and casting products. In order to obtain the desired microstructure and mechanical properties, the workpiece is subjected to heat treatment before being worked. Quenching produces residual stresses that exist throughout a large percentage of the casting or forging part. Distortion occurs as a result of removing stressed material from the workpiece. The component will re-equilibrate and distort as each layer of stressed material is machined away. This paper describes a procedure development for distortions numerical analysis on a SAF2507 casting bulk workpiece. A solubilization heat treatment has been simulated, in order to predict the bulk residual stresses distribution. Different metal cutting processes have been considered to measure the numerical distortions induced in the workpiece.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 1241-1246
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.1241
• Online since: July 2015
• Authors: Rodolfo Franchi*, Antonio Del Prete, Gabriele Papadia
• Keywords: FEM Simulation, Heat Treatment, Machining Distortion

References

[1] G. E. Totten, Steel Heat Treatment Handbook, Second Edition, CRC Press, (2006).

[2] F. Hoffmann, O. Kessler, Th. Lübben, P. Mayr, Distortion engineering—distortion control during the production process, Jinshu Rechuli/Heat Treatment of Metals 29 (8) (2004) 61–66.

[3] K. Ma, R. Goetz, S. K. Srivatsa, Modeling of residual stress and machining distortion in aerospace components, Air Force Research Laboratory, Materials And Manufacturing Directorate Wright-Patterson Air Force Base, United States Air Force, (2010).

DOI: 10.21236/ada523921

[4] M. Knezevic, B. K. Chun, J. Y. Oh, W. T. Wu, R. A. III Ress M. G. Glavicic, S. Srivatsa, Modeling Machining Distortion using the Finite Element Method: Application to Engine Disk, Los Alamos National Laboratory, (2012).

[5] V. Schulze, P. Arrazola, F. Zanger, J. Osterried, Simulation of Distortion Due to Machining of Thin-walled Components, Procedia CIRP, Volume 8, 2013, Pages 45–50.

DOI: 10.1016/j.procir.2013.06.063

[6] A. Del Prete, A.A. De Vitis, R. Franchi, Numerical-Experimental Correlation of Distortions Induced by Machining Process on Thin-Walled Nickel Super Alloy Forged Components, Key Engineering Materials (Volumes 504 - 506) pp.1299-1304, (2012).

DOI: 10.4028/www.scientific.net/kem.504-506.1299

[7] J. O. Nilsson, Super duplex stainless steels, Maney Publishing's Online Platform, Volume 8, Issue 8 (01 August 1992), pp.685-700.

[8] X. Su, G. Wang, Y.T. Zhang, J.F. Li, Y.M. Rong, Modeling on stress evolution of step part for casting-heat treatment processes, Physics Procedia 50 ( 2013 ) 360 – 367.

DOI: 10.1016/j.phpro.2013.11.056

[9] X. Li, P. Miodownik, N. Saunders, Modelling of materials properties in duplex stainless steels, Sente Software Articles and Papers, (2002).

[10] A. D. Da Silva, Z. Guo, J. P. Schillé, T. Altan, P. R. Cetlin, Prediction of Geometric Distortion and Residual Stresses In Hot Rolled and Heat Treated Large Rings Through Finite Element Modeling, Sente Software Articles and Papers, (2012).
