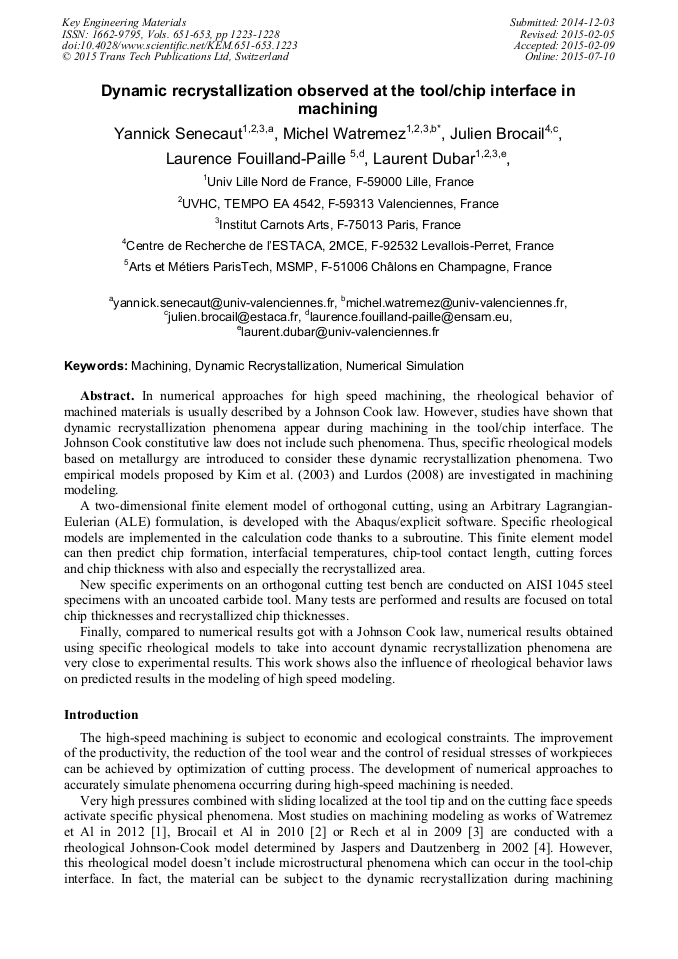

Dynamic Recrystallization Observed at the Tool/Chip Interface in Machining

Abstract:

In numerical approaches for high speed machining, the rheological behavior of machined materials is usually described by a Johnson Cook law. However, studies have shown that dynamic recrystallization phenomena appear during machining in the tool/chip interface. The Johnson Cook constitutive law does not include such phenomena. Thus, specific rheological models based on metallurgy are introduced to consider these dynamic recrystallization phenomena. Two empirical models proposed by Kim et al. (2003) and Lurdos (2008) are investigated in machining modeling. A two-dimensional finite element model of orthogonal cutting, using an Arbitrary Lagrangian-Eulerian (ALE) formulation, is developed with the Abaqus/explicit software. Specific rheological models are implemented in the calculation code thanks to a subroutine. This finite element model can then predict chip formation, interfacial temperatures, chip-tool contact length, cutting forces and chip thickness with also and especially the recrystallized area. New specific experiments on an orthogonal cutting test bench are conducted on AISI 1045 steel specimens with an uncoated carbide tool. Many tests are performed and results are focused on total chip thicknesses and recrystallized chip thicknesses. Finally, compared to numerical results got with a Johnson Cook law, numerical results obtained using specific rheological models to take into account dynamic recrystallization phenomena are very close to experimental results. This work shows also the influence of rheological behavior laws on predicted results in the modeling of high speed modeling.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 1223-1228
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.1223
• Online since: July 2015
• Authors: Yannick Senecaut, Michel Watremez*, Julien Brocail, Laurence Fouilland-Paillé, Laurent Dubar
• Keywords: Dynamic Recrystallization, Machining, Numerical Simulation

References

[1] M. Watremez, D. Meresse, L. Dubar et J. Brocail, «Finite element modelling of orthogonal cutting: sensitivity analysis of material and contact parameters, » International Journal of Simulation and Process Modelling, vol. 7, pp.262-274, (2012).

DOI: 10.1504/ijspm.2012.049820

[2] J. Brocail, M. Watremez et L. Dubar, «Identification of a friction model for modelling of orthogonal cutting, » International Journal of Machine Tools & Manufacture, pp.807-814, (2010).

DOI: 10.1016/j.ijmachtools.2010.05.003

[3] J. Rech, C. Claudin and E. D'Eramo, Identification of a friction model - Application to the context of dry cutting of an AISI 1045 annealed steel with a TiN-coated carbide tool, Tribology International 42, pp.738-744, (2009).

DOI: 10.1016/j.triboint.2008.10.007

[4] S. Jaspers et J. Dautzenberg, «Material behaviour in conditions similar to metal cutting: flow stress in the primary shear zone, » Journal of Materials Processing Technology, pp.322-330, (2002).

DOI: 10.1016/s0924-0136(01)01228-6

[5] S. Kim, Y. Lee et S. Byon, «Study on constitutive relation of AISI 4140 steel subject to large strain at elevated temperatures, » Journal of Materials Processing Technology, vol. 140, pp.84-89, (2003).

DOI: 10.1016/s0924-0136(03)00742-8

[6] O. Lurdos, F. Montheillet, G. Damamme, Empirical and physically based flow rules relevant to high speed processing of 304L steel. International Journal of Material Forming, vol. 1, pp.1431-1434, (2008).

DOI: 10.1007/s12289-008-0105-1

[7] C. Courbon, T. Mabrouki, J. Rech, D. Mazuyer, F. Perrard et E. D'Eramo, «Towards a physical FE modelling of a dry cutting operation: influence of dynamic recrystallization when machining AISI 1045, » Procedia CIRP 8, p.516 – 521, (2013).

DOI: 10.1016/j.procir.2013.06.143

[8] P. Arrazola, A. Kortabarria, A. Madariaga, J. Esnaola, E. Fernandez, C. Cappellini, U. D. et T. Ozel, «On the machining induced residual stresses in IN718 nickel-based alloy: Experiments and predictions with finite element simulation, » Simulation Modelling Practice and Theory, pp.87-103, (2014).

DOI: 10.1016/j.simpat.2013.11.009

[9] G. Rotella et D. Umbrello, «Finite element modeling of microstructural changes in dry and cryogenic cutting of Ti6Al4V alloy, » CIRP Annals - Manufacturing Technology, pp.69-72, (2014).

DOI: 10.1016/j.cirp.2014.03.074

[10] H. Ben Abdelali, C. Claudin, J. Rech, W. Ben Salem, P. Kapsa et A. Dogui, «Experimental characterization of friction coefficient at the tool-chip-workpiece interface during dry cutting of AISI1045, » Wear, 286-287, pp.108-115, (2012).

DOI: 10.1016/j.wear.2011.05.030

[11] P. Rosakis, A. Rosakis, G. Ravichandran et J. Hodowany, «A thermodynamic internal variable model for the partition of plastic work into heat and stored energy metals, » Journal of the Mechanics and the Physics of Solids, vol 15, pp.581-607, (2000).

DOI: 10.1016/s0022-5096(99)00048-4

[12] V. Kalhori, «Modeling and simulation of mechanical cutting, » PhD thesis, University of Lunea Tekniska, (2001).

[13] W. Grzesik et P. Nieslony, «Physics based on modelling of interface temperatures in machining with multiplayer coated tools at moderate cutting speeds, » International Journal of Machine Tools & Manufacture, vol 44, pp.889-901, (2004).

DOI: 10.1016/j.ijmachtools.2004.02.014

[14] C. Courbon, Vers une modélisation physique de la coupe des aciers spéciaux: intégration du comportement métallurgique et des phénomènes tribologiques et thermiques aux interfaces, Lyon, (2011).
