Implicit Stress Integration and Consistent Tangent Matrix for Yoshida’s 6th Order Polynomial Yield Function Combined with Yoshida-Uemori Kinematic Hardening Rule

Abstract:

This paper describes fully implicit stress integration scheme for Yoshida’s 6thorder yield function combined with Yoshida-Uemori kinematic hardening model and its consistent tangent matrix. Cutting plane method was employed for accurate integrations of stress and state variables appeared in Yoshida-Uemori model. In the present scheme, equivalent plastic strain, stress tensor and all the state variables are treated as independent variables in order to handle the 6th order yield function which is not the J2 yield function, and the equilibriums for each variables are solved for the stress integration. Subsequently, exact consistent tangent matrix which is necessary for implicit static finite element simulation was obtained. The proposed scheme was implemented into finite element code LS-DYNA and deep drawing process for aluminum alloy sheet was calculated. The earing appearance after drawing was compared with the experiment.

You might also be interested in these eBooks

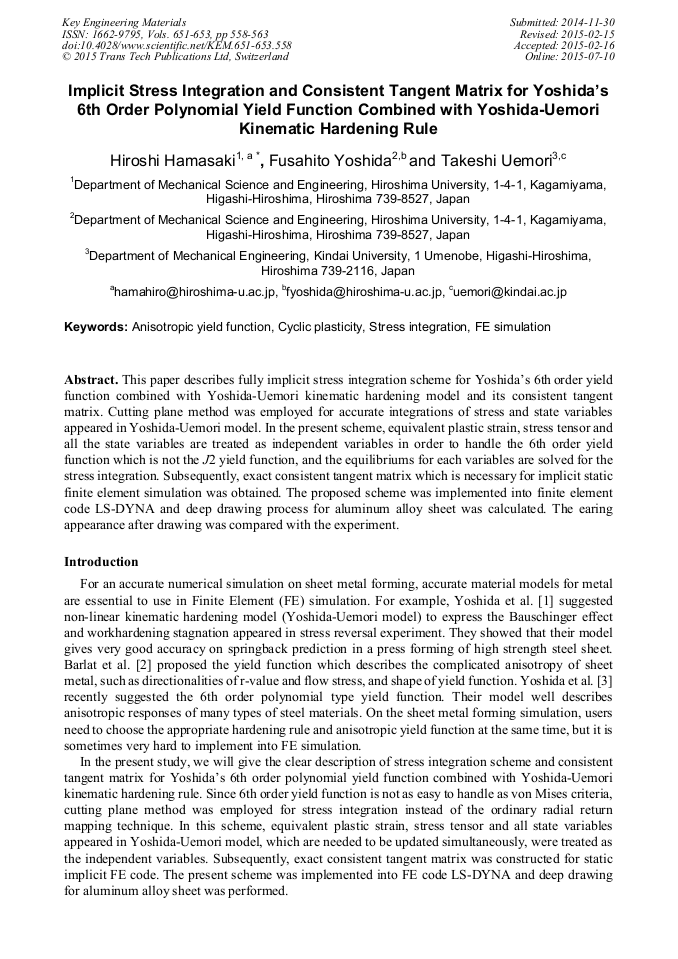

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 651-653)

Pages:

558-563

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.651-653.558

Citation:

Cite this paper

Online since:

July 2015

Authors:

Hiroshi Hamasaki*, Fusahito Yoshida, Takeshi Uemori

Keywords:

Anisotropic Yield Function, Cyclic Plasticity, Fe Simulation, Stress Integration

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] F. Yoshida, T. Uemori, A model of large-strain cyclic plasticity describing the Bauschinger effect and workhardening stagnation, Int. J. Plast. 18 (2002) 661-686.

DOI: 10.1016/s0749-6419(01)00050-x

Google Scholar

[2] F. Barlat, J.C. Brem, J.W. Yoon, K. Chung, R.E. Dick, D.J. Lege, F. Pourgoghrat, S.H. Choi, E. Chu, Plane stress yield function for aluminum alloy sheets part 1: theory, Int. J. Plast. 19 (2003) 1297-1319.

DOI: 10.1016/s0749-6419(02)00019-0

Google Scholar

[3] F. Yoshida, H. Hamasaki, T. Uemori, A user-friendly 3D yield function to describe anisotropy of steel sheets, Int. J. Plast. 45 (2013) 119-139.

DOI: 10.1016/j.ijplas.2013.01.010

Google Scholar
