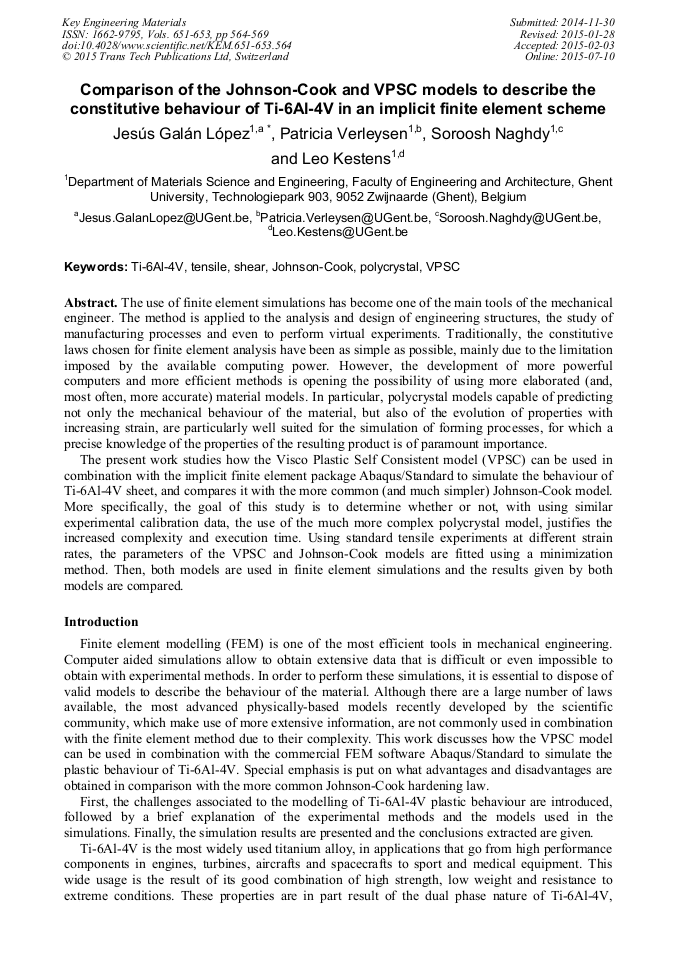

Comparison of the Johnson-Cook and VPSC Models to Describe the Constitutive Behaviour of Ti-6Al-4V in an Implicit Finite Element Scheme

Abstract:

The use of finite element simulations has become one of the main tools of the mechanical engineer. The method is applied to the analysis and design of engineering structures, the study of manufacturing processes and even to perform virtual experiments. Traditionally, the constitutive laws chosen for finite element analysis have been as simple as possible, mainly due to the limitation imposed by the available computing power. However, the development of more powerful computers and more efficient methods is opening the possibility of using more elaborated (and, most often, more accurate) material models. In particular, polycrystal models capable of predicting not only the mechanical behaviour of the material, but also of the evolution of properties with increasing strain, are particularly well suited for the simulation of forming processes, for which a precise knowledge of the properties of the resulting product is of paramount importance.The present work studies how the Visco Plastic Self-Consistent model (VPSC) can be used in combination with the implicit finite element package Abaqus/Standard to simulate the behaviour of Ti-6Al-4V sheet, and compares it with the more common (and much simpler) Johnson-Cook model. More specifically, the goal of this study is to determine whether or not, with using similar experimental calibration data, the use of the much more complex polycrystal model, justifies the increased complexity and execution time. Using standard tensile experiments at different strain rates, the parameters of the VPSC and Johnson-Cook models are fitted using a minimization method. Then, both models are used in finite element simulations and the results given by both models are compared.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 564-569
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.564
• Online since: July 2015
• Authors: Jesús Galán López*, Patricia Verleysen, Soroosh Naghdy, Leo A.I. Kestens
• Keywords: Johnson-Cook, Polycrystal, Shear, Tensile, Ti-6Al-4V, VPSC

References

[1] D. Lesuer, Experimental investigations of material models for Ti–6Al–4V titanium and 2024-T3 aluminum, Final Report. Contract no: DTFA03-97-Z, 90007 (2000).

[2] A. S. Khan, Y. Sung Suh, and R. Kazmi, Quasi-static and dynamic loading responses and constitutive modeling of titanium alloys, Int J Plasticity 20 (2004) pp.2233-2248.

DOI: 10.1016/j.ijplas.2003.06.005

[3] J. Fundenberger, M. Philippe, F. Wagner, and C. Esling, Modelling and prediction of mechanical properties for materials with hexagonal symmetry (zinc, titanium and zirconium alloys), Acta Mater (1997) pp.4041-4055.

DOI: 10.1016/s1359-6454(97)00099-2

[4] R. Picu and A. Majorell, Mechanical behavior of Ti-6Al-4V at high and moderate temperatures - Part II: constitutive modeling, Mat Sci Eng A (2002) pp.306-316.

DOI: 10.1016/s0921-5093(01)01508-8

[5] F. Coghe, PhD Deformation Mechanisms of a Ti-6AI-4V Alloy, Royal Military Academy – Katholieke Universiteit Leuven, Belgium (2013).

[6] J. Galán, PhD Crystal plasticity based modelling of the strain rate dependent behaviour of Ti-6Al-4V, Ghent University, Belgium (2014).

[7] W. Hammami, G. Gilles, A. M. Habraken, and L. Duchene, Phenomenological and crystal plasticity approaches to describe the mechanical behaviour of Ti6Al4V titanium alloy, Int J Mat Form 4 (2011) pp.205-215.

DOI: 10.1007/s12289-011-1028-9

[8] J. Galán, P. Verleysen, and J. Degrieck, Thermal Effects During Tensile Deformation of Ti-6Al-4V at Different Strain Rates, Strain 49 (2013) pp.354-365.

DOI: 10.1111/str.12042

[9] J. Peirs, PhD Experimental Characterisation and Modelling of the Dynamic Behaviour of the Titanium Alloy Ti6Al4V, Gent University, Belgium (2012).

[10] J. Peirs, P. Verleysen, and J. Degrieck, Novel technique for static and dynamic shear testing of Ti6Al4V sheet, Experimental mechanics 7 (2012) 729-741.

DOI: 10.1007/s11340-011-9541-9

[11] G. Johnson and W. Cook, A constitutive model and data for metals subjected to large strains, high strain rates and high temperatures. Proceedings of the Seventh International Symposium on Ballistic, The Hague, The Netherlands (1983).

[12] R. Lebensohn and C. Tomé, A self-consistent anisotropic approach for the simulation of plastic deformation and texture development of polycrystals: Application to zirconium alloys, Acta Metall Mater, 41 (1993) pp.2611-2624.

DOI: 10.1016/0956-7151(93)90130-k

[13] J. Galán, P. Verleysen, and R. A. Lebensohn, An improved algorithm for the polycrystal viscoplastic self-consistent model and its integration with implicit finite element schemes, Modelling and Simulation in Materials Science and Engineering 22 (2014).

DOI: 10.1088/0965-0393/22/5/055023

[14] F. Coghe, W. Tirry, L. Rabet, and P. Van Houtte, Comparison of low and high strain rate deformation mechanisms and texture evolution for a textured Ti6Al4V alloy, DYMAT, EDP Sciences (2009).

DOI: 10.1051/dymat/2009160
