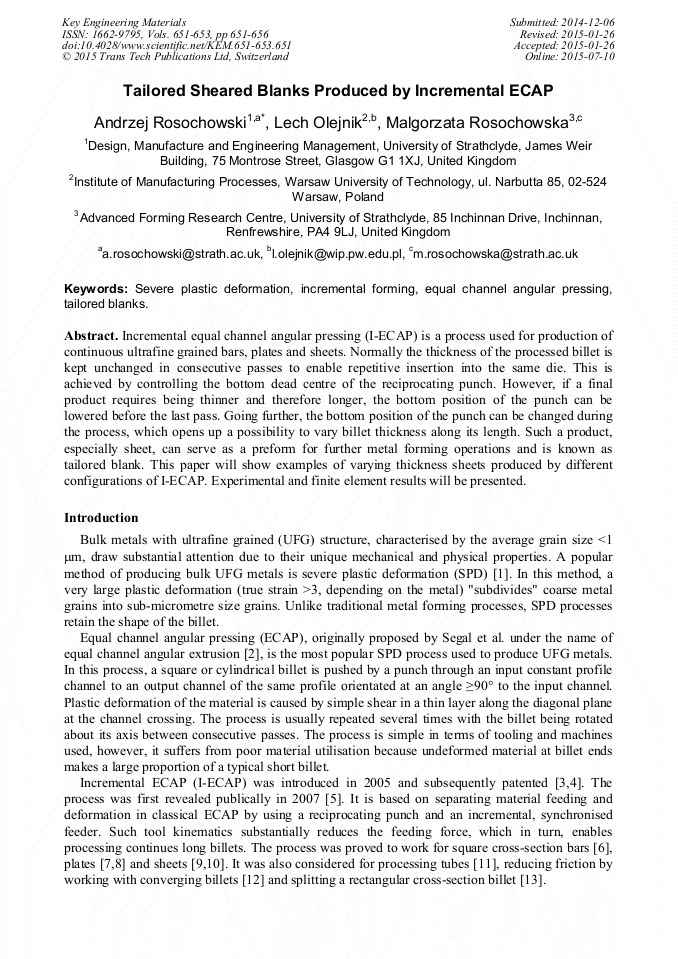

Tailored Sheared Blanks Produced by Incremental ECAP

Abstract:

Incremental equal channel angular pressing (I-ECAP) is a process used for production of continuous ultrafine grained bars, plates and sheets. Normally the thickness of the processed billet is kept unchanged in consecutive passes to enable repetitive insertion into the same die. This is achieved by controlling the bottom dead centre of the reciprocating punch. However, if a final product requires being thinner and therefore longer, the bottom position of the punch can be lowered before the last pass. Going further, the bottom position of the punch can be changed during the process, which opens up a possibility to vary billet thickness along its length. Such a product, especially sheet, can serve as a preform for further metal forming operations and is known as tailored blank. This paper will show examples of varying thickness sheets produced by different configurations of I-ECAP. Experimental and finite element results will be presented.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 651-656
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.651
• Online since: July 2015
• Authors: Andrzej Rosochowski, Lech Olejnik, Malgorzata Rosochowska
• Keywords: Equal Channel Angular Pressing, Incremental Forming, Severe Plastic Deformation, Tailored blanks

References

[1] A. Azushima, R. Kopp, A. Korhonen, D.Y. Yang, F. Micari, G.D. Lahoti, P. Groche, J. Yanagimoto, N. Tsuji, A. Rosochowski, A. Yanagida, CIRP Annals - Manufacturing Technology 57 (2008) 716-735.

DOI: 10.1016/j.cirp.2008.09.005

[2] V.M. Segal, V.A. Reznikov, A.E. Drobyshevskiy, V.I. Kopylov, Russian Metallurgy 1 (1981) 99-105.

[3] A. Rosochowski, European Patent 1861211 (2012).

[4] A. Rosochowski, U.S. Patent 8, 631, 673 (2014).

[5] A. Rosochowski, L. Olejnik, FEM simulation of incremental shear, in: E. Cueto, F. Chinesta (Eds), Proc. of the 10th International Conference on Material Forming, Esaform 2007, April 18-20, 2007, Zaragoza, Spain, AIP Proceedings 907, 2007, pp.653-658.

DOI: 10.1063/1.2729587

[6] A. Rosochowski, L. Olejnik, M. Richert, Double-billet Incremental ECAP, Materials Science Forum 584-586 (2008) 139-144.

DOI: 10.4028/www.scientific.net/msf.584-586.139

[7] A. Rosochowski, L. Olejnik, M. Richert, Incremental ECAP of plates, Materials Science Forum 584-586 (2008) 108-113.

DOI: 10.4028/www.scientific.net/msf.584-586.108

[8] A. Rosochowski, L. Olejnik, Incremental ECAP of thick continuous plates - machine and initial experiments, 6th International Conference on Nanomaterials by Severe Plastic Deformation, NanoSPD6, 30 June - 4 July 2014, Metz, France, IOP Conf. Series: Materials Science and Engineering 63 (2014).

DOI: 10.1088/1757-899x/63/1/012010

[9] A. Rosochowski, M. Rosochowska, L. Olejnik, B. Verlinden, Incremental equal channel angular pressing of sheets, Steel Research International 81/9 (2010) 470-473.

DOI: 10.1063/1.4963492

[10] L. Olejnik, W. Chromiński, A. Rosochowski, M. Lipińska, M. Lewandowska, Incremental ECAP as a novel tool for producing ultrafine grained aluminium plates, 6th International Conference on Nanomaterials by Severe Plastic Deformation, NanoSPD6, 30 June - 4 July 2014, Metz, France, IOP Conf. Series: Materials Science and Engineering 63 (2014).

DOI: 10.1088/1757-899x/63/1/012004

[11] A. Rosochowski, L. Olejnik, Incremental ECAP of tubular components - FE simulation, Proc. of the 14th Esaform Conference on Material Forming, Belfast, United Kingdom, 27-29 April 2011, edited by G. Menary, AIP Proceedings 1353, pp.517-522.

DOI: 10.1063/1.3589567

[12] A. Rosochowski, L. Olejnik, Incremental ECAP with converging billets, Key Engineering Materials 554-557 (2013) 869-875.

DOI: 10.4028/www.scientific.net/kem.554-557.869

[13] A. Rosochowski, M. Rosochowska, L. Olejnik, Severe plastic deformation by incremental angular splitting, Journal of Materials Science 48/13 (2013) 4557-4562.

DOI: 10.1007/s10853-012-7108-5

[14] L. Olejnik, M. Kulczyk, W. Pachla, A. Rosochowski, Hydrostatic extrusion of UFG aluminium, International Journal of Material Forming 2/Suppl. 1 (2009) 621–624.

DOI: 10.1007/s12289-009-0508-7

[15] M. Merklein, M. Johannes, M. Lechner, A. Kuppert, A review on tailored blanks - Production, applications and evaluation, Journal of Materials Processing Technology 214 (2014) 151-164.

DOI: 10.1016/j.jmatprotec.2013.08.015

[16] R. Kopp, C. Wiedner, A. Meyer, Flexibly rolled sheet metal and its use in sheet metal forming, Advanced Materials Research 6-8 (2005) 81-92.
