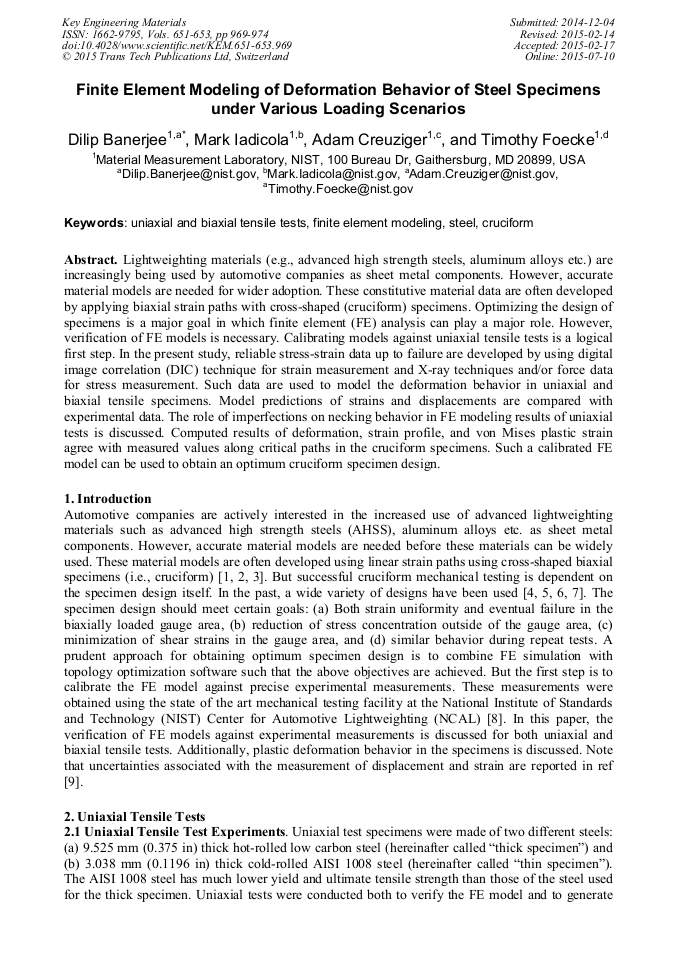

Finite Element Modeling of Deformation Behavior of Steel Specimens under Various Loading Scenarios

Abstract:

Lightweighting materials (e.g., advanced high strength steels, aluminum alloys etc.) are increasingly being used by automotive companies as sheet metal components. However, accurate material models are needed for wider adoption. These constitutive material data are often developed by applying biaxial strain paths with cross-shaped (cruciform) specimens. Optimizing the design of specimens is a major goal in which finite element (FE) analysis can play a major role. However, verification of FE models is necessary. Calibrating models against uniaxial tensile tests is a logical first step. In the present study, reliable stress-strain data up to failure are developed by using digital image correlation (DIC) technique for strain measurement and X-ray techniques and/or force data for stress measurement. Such data are used to model the deformation behavior in uniaxial and biaxial tensile specimens. Model predictions of strains and displacements are compared with experimental data. The role of imperfections on necking behavior in FE modeling results of uniaxial tests is discussed. Computed results of deformation, strain profile, and von Mises plastic strain agree with measured values along critical paths in the cruciform specimens. Such a calibrated FE model can be used to obtain an optimum cruciform specimen design.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 969-974
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.969
• Online since: July 2015
• Authors: Dilip Banerjee*, Mark Iadicola, Adam Creuziger, Tim Foecke
• Keywords: Biaxial Tensile Tests, Cruciform, Finite Element Modeling, Steel, Uniaxial

References

[1] T. Foecke, M.A. Iadicola, A. Lin, S.W. Banovic, A method for direct measurement of multiaxial stress-strain curves in sheet metal, Metall. Mater Trans. 38A (2007) 306–313.

DOI: 10.1007/s11661-006-9044-y

[2] M.A. Iadicola, T. Foecke, S.W. Banovic, Experimental observations of evolving yield loci in biaxially strained AA 5754-O, Int. J. Plasticity. 24(2008) 2084–2101.

DOI: 10.1016/j.ijplas.2008.03.003

[3] W. Mü̈ller, K. Pöhlandt, New experiments for determining yield loci of sheet metal, J. Mater. Process. Tech. 60 (1996) 643–648.

DOI: 10.1016/0924-0136(96)02399-0

[4] C.C. Tasan, J.P.M. Hoefnagels, G. Quaak, M.G.D. Geers, In-Plane biaxial loading of sheet metal until fracture, Society for Experimental Mechanics (SEM), Orlando, FL, (2008).

[5] E. Hoferlin, A.V. Bael, P.V. Houtte, G. Steyaert, C.D. Mare, The design of a biaxial tensile test and its use for the validation of crystallographic yield loci, Model. Simul. Mater. Sc. 8 (2000) 423–433.

DOI: 10.1088/0965-0393/8/4/302

[6] T. Kuwabara, A. Bael, E. Iizuka, Measurement and analysis of yield locus and work hardening characteristics of steel sheets with different r-values, Acta Mater. 50 (2002) 3717–3729.

DOI: 10.1016/s1359-6454(02)00184-2

[7] F. Abu-Farha, L.G. Hector, M. Khraisheh, Cruciform-shaped specimens for elevated temperature biaxial testing of lightweight materials, JOM 61 (2009) 48–56.

DOI: 10.1007/s11837-009-0121-8

[8] NIST Center for Automotive Lightweighting, http: /www. nist. gov/lightweighting.

[9] D. Banerjee, M. Iadicola, A. Creuziger, T. Foecke, An Experimental and Numerical Study of Deformation Behavior of Steels in Biaxial Tensile Tests, to be published in TMS 2015 Conference Proceedings, Warrendale, PA.

DOI: 10.1002/9781119093466.ch35

[10] ABAQUS 12. 2 software. Dassault Systemes. http: /www. 3ds. com.

[11] J.W. Kim, T.S. Byun, Analysis of necking deformation and fracture characteristics of irradiated A533B RPV steel, Nucl. Eng. Tech. 44 (2012) 953-960.

DOI: 10.5516/net.07.2012.012

[12] M.A. Iadicola, A.A. Creuziger, T. Foecke, Advanced biaxial cruciform testing at the NIST Center for Automotive Lightweighting, SEM , (2013).

DOI: 10.1007/978-3-319-00876-9_34
