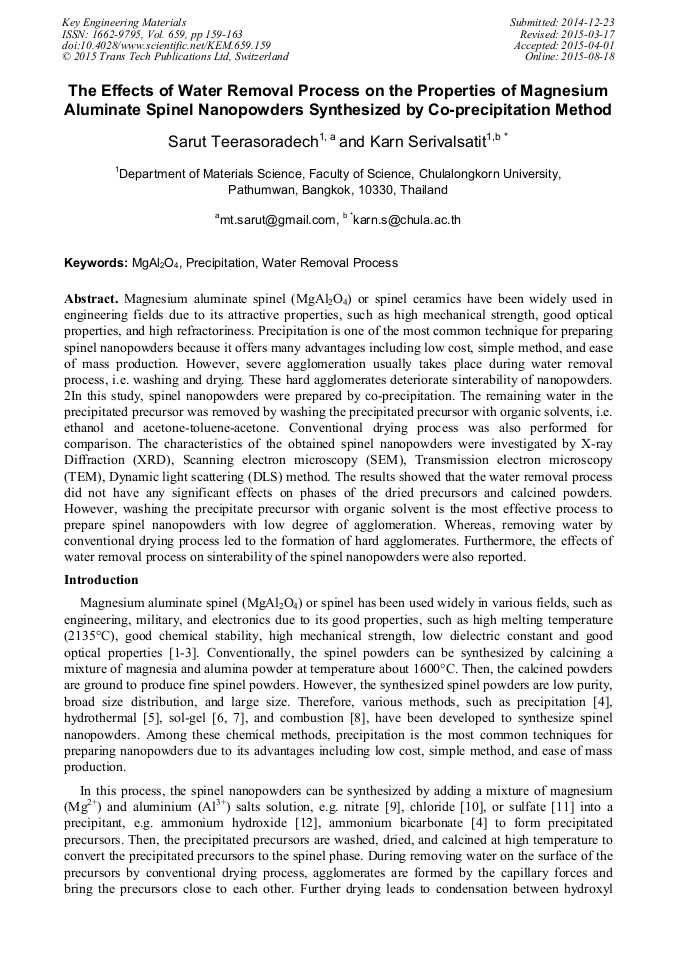

The Effects of Water Removal Process on the Properties of Magnesium Aluminate Spinel Nanopowders Synthesized by Co-Precipitation Method

Abstract:

Magnesium aluminate spinel (MgAl₂O₄) or spinel ceramics have been widely used in engineering fields due to its attractive properties, such as high mechanical strength, good optical properties, and high refractoriness. Precipitation is one of the most common techniques for preparing spinel nanopowders because it offers many advantages including low cost, simple method, and ease of mass production. However, severe agglomeration usually takes place during water removal process, i.e. washing and drying. These hard agglomerates deteriorate sinterability of nanopowders. In this study, spinel nanopowders were prepared by co-precipitation method. The remaining water in the precipitated precursor was removed by washing the precipitated precursor with organic solvents, i.e. ethanol and acetone-toluene-acetone. Conventional drying process was also performed for comparison. The characteristics of the obtained spinel nanopowders were investigated by X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), and dynamic light scattering (DLS) method. The results showed that the water removal process did not have any significant effects on phases of the dried precursors and the calcined powders. However, washing the precipitate precursor with organic solvent is the most effective process to prepare spinel nanopowders with low degree of agglomeration. Whereas, removing water by conventional drying process led to the formation of hard agglomerates. Furthermore, the effects of water removal process on sinterability of the spinel nanopowders were also reported.

• Periodical: Key Engineering Materials (Volume 659)
• Pages: 159-163
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.659.159
• Online since: August 2015
• Authors: Sarut Teerasoradech, Karn Serivalsatit*
• Keywords: MgAl₂O₄, Precipitation, Water Removal Process

References

[1] I. Reimanis, H. -J. Kleebe, A Review on the Sintering and Microstructure Development of Transparent Spinel (MgAl2O4), J. Am. Ceram. Soc. 92 (2009) 1472-1480.

DOI: 10.1111/j.1551-2916.2009.03108.x

[2] L. Esposito, A. Piancastelli, S. Martelli, Production and characterization of transparent MgAl2O4 prepared by hot pressing, J. Eur. Ceram. Soc. 33 (2013) 737-747.

DOI: 10.1016/j.jeurceramsoc.2012.10.013

[3] E.N. Alvar, M. Rezaei, Mesoporous nanocrystalline MgAl2O4 spinel and its applications as support for Ni catalyst in dry reforming, Scripta Materialia 61 (2009) 212-215.

DOI: 10.1016/j.scriptamat.2009.03.047

[4] J. -G. Li, T. Ikegami, J. -H. Lee, T. Mori, Y. Yajima, Synthesis of Mg-Al spinel powder via precipitation using ammonium bicarbonate as the precipitant, J. Eur. Ceram. Soc. 21 (2001) 139-148.

DOI: 10.1016/s0955-2219(00)00188-6

[5] X. Zhang, Hydrothermal synthesis and catalytic performance of high-surface-area mesoporous nanocrystallite MgAl2O4 as catalyst support, Mater. Chem. Phys. 116 (2009) 415-420.

DOI: 10.1016/j.matchemphys.2009.04.012

[6] N.M. Khalil, M.B. Hassan, E.M.M. Ewais, F.A. Saleh, Sintering, mechanical and refractory properties of MA spinel prepared via co-precipitation and sol–gel techniques, J. Alloy. Compd. 496 (2010) 600-607.

DOI: 10.1016/j.jallcom.2010.02.123

[7] J. Xiaolin, Z. Haijun, Y. Yongjie, L. Zhanjie, Effect of the citrate sol–gel synthesis on the formation of MgAl2O4 ultrafine powder, Mat. Sci. Eng. A 379 (2004) 112-118.

DOI: 10.1016/j.msea.2003.12.057

[8] L. Durães, T. Matias, A.M. Segadães, J. Campos, A. Portugal, MgAl2O4 spinel synthesis by combustion and detonation reactions: A thermochemical evaluation, J. Eur. Ceram. Soc. 32 (2012) 3161-3170.

DOI: 10.1016/j.jeurceramsoc.2012.04.031

[9] E.N. Alvar, M. Rezaei, H.N. Alvar, Synthesis of mesoporous nanocrystalline MgAl2O4 spinel via surfactant assisted precipitation route, Powder Technology 198 (2010) 275-278.

DOI: 10.1016/j.powtec.2009.11.019

[10] M.S. Abdi, T. Ebadzadeh, A. Ghaffari, M. Feli, Synthesis of nano-sized spinel (MgAl2O4) from short mechanochemically activated chloride precursors and its sintering behavior, Adv. Powder Technol. (2014).

DOI: 10.1016/j.apt.2014.09.011

[11] S. Hokazono, K. Manako, A. Kato, The sintering behaviour of spinel powders produced by a homogeneous precipitation technique, Br. Ceram. Trans. J. 91 (1992) 77-79.

[12] M.F. Zawrah, H. Hamaad, S. Meky, Synthesis and characterization of nano MgAl2O4 spinel by the co-precipitated method, Ceram. Int. 33 (2007) 969-978.

DOI: 10.1016/j.ceramint.2006.02.015

[13] J. Mouzon, M. Odén, O. Tillement, Y. Jorand, Effect of Drying and Dewatering on Yttria Precursors with Transient Morphology, J. Am. Ceram. Soc. 89 (2006) 3094-3100.

DOI: 10.1111/j.1551-2916.2006.01224.x

[14] S.L. Jones, C.J. Norman, Dehydration of hydrous zirconia with methanol, J. Am. Ceram. Soc. 71 (1988) 190-191.

[15] M.S. Kaliszewski, A.H. Heuer, Alcohol interaction with zirconia powders, J. Am. Ceram. Soc. 73 (1990) 1504-1509.

DOI: 10.1111/j.1151-2916.1990.tb09787.x

[16] W. -l. Luan, L. Gao, J. -k. Guo, Study on drying stage of nanoscale powder preparation, Nanostruct. Mater. 10 (1998) 1119-1125.

DOI: 10.1016/s0965-9773(98)00142-1

[17] S.L. Dole, R.W. Scheidecker, L.E. Shiers, M.F. Berard, O.J. Hunter, Technique for preparing highly-sinterable oxide powders, Mater. Sci. Eng. 32 (1978) 277-281.

DOI: 10.1016/0025-5416(78)90141-6

[18] M.F. Zawrah, H. Hamaad, S. Mekyb, Synthesis and characterization of nano MgAl2O4 spinel by the co-precipitated method, Ceram. Int. 33 (2007) 969-978.

DOI: 10.1016/j.ceramint.2006.02.015
