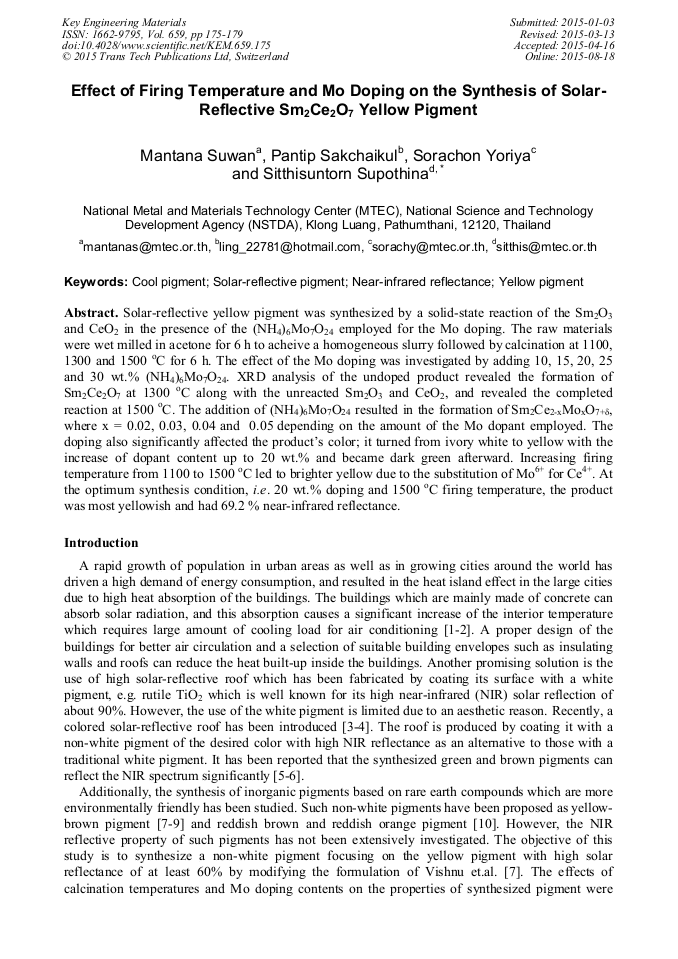

Effect of Firing Temperature and Mo Doping on the Synthesis of Solar-Reflective Sm₂Ce₂O₇ Yellow Pigment

Abstract:

Solar-reflective yellow pigment was synthesized by a solid-state reaction of the Sm₂O₃ and CeO₂ in the presence of the (NH₄)₆Mo₇O₂₄ employed for the Mo doping. The raw materials were wet milled in acetone for 6 h to acheive a homogeneous slurry followed by calcination at 1100, 1300 and 1500 °C for 6 h. The effect of the Mo doping was investigated by adding 10, 15, 20, 25 and 30 wt.% (NH₄)₆Mo₇O₂₄. XRD analysis of the undoped product revealed the formation of Sm₂Ce₂O₇ at 1300 °C along with the unreacted Sm₂O₃ and CeO₂, and revealed the completed reaction at 1500 °C. The addition of (NH₄)₆Mo₇O₂₄ resulted in the formation of Sm₂Ce_2-xMo_xO_7+δ, where x = 0.02, 0.03, 0.04 and 0.05 depending on the amount of the Mo dopant employed. The doping also significantly affected the product’s color; it turned from ivory white to yellow with the increase of dopant content up to 20 wt.% and became dark green afterward. Increasing firing temperature from 1100 to 1500 °C led to brighter yellow due to the substitution of Mo⁶⁺ for Ce⁴⁺. At the optimum synthesis condition, i.e. 20 wt.% doping and 1500 °C firing temperature, the product was most yellowish and had 69.2 % near-infrared reflectance.

• Periodical: Key Engineering Materials (Volume 659)
• Pages: 175-179
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.659.175
• Online since: August 2015
• Authors: Mantana Suwan, Pantip Sakchaikul, Sorachon Yoriya, Sitthisuntorn Supothina*
• Keywords: Cool Pigment, Near-Infrared Reflectance, Solar-Reflective Pigment, Yellow Pigment

References

[1] S. Hassis, M. Santamouris, M. Papanikolaou, A. Linardi, N. Klitsikas, C. Georgakis, D.N. Assimakopoulos, The effect of the Athens heat island on air conditioning load, Energ. Building, 32 (2000) 131-141.

DOI: 10.1016/s0378-7788(99)00045-6

[2] E. Stathopoulou, G. Mihalakakou, M. Santamouris, H.S. Bagiorgas, Impact of temperature on tropospheric ozone concentration levels in urban environments, J. Earth Syst. Sci., 117 (2008) 227-236.

DOI: 10.1007/s12040-008-0027-9

[3] H. Akbari, H.D. Matthews, Global cooling updates: Reflective roofs and pavements, Energ. Buildings, 55 (2012) 2-6.

DOI: 10.1016/j.enbuild.2012.02.055

[4] M. Santamouris, A. Synnefa, T. Karlessi, Using advanced cool materials in the urban built environment to mitigate heat islands and improve thermal comfort conditions, Sol. Energy 85 (2011) 3085-3102.

DOI: 10.1016/j.solener.2010.12.023

[5] T. Thongkanluang, T. Kittiauchawal, P. Limsuwan, Preparation and characterization of Cr2O3-TiO2- Al2O3-V2O5 green pigment, Ceram. Int. 37 (2011) 543-548.

DOI: 10.1016/j.ceramint.2010.09.044

[6] T. Thongkanluang, N. Chirakanohaisarn, P. Limsuwan, Preparation of NIR reflective brown pigment, Procedia Eng. 32 (2012) 895-901.

DOI: 10.1016/j.proeng.2012.02.029

[7] V.S. Vishnu, G. George, M.L.P. Reddy, Effect of molybdenum and praseodymium dopants on the optical properties of Sm2Ce2O7: Tuning of band gaps to realize various color hues, Dyes Pigments 85 (2010) 117-123.

DOI: 10.1016/j.dyepig.2009.10.012

[8] V.S. Vishnu, M. L. Reddy, Near-infrared reflecting inorganic pigments based on molybdenum and praseodymium doped yttrium cerate: Synthesis, characterization and optical properties, Sol. Energ. Mat. Sol. C. 95 (2011) 2685-2692.

DOI: 10.1016/j.solmat.2011.05.042

[9] G. George, V.S. Vishnu, M.L.P. Reddy, The synthesis, characterization and optical properties of silicon and praseodymium doped Y6MoO12 compounds: Environmentally benign inorganic pigments with high NIR reflectance, Dyes Pigments 88 (2011) 109-115.

DOI: 10.1016/j.dyepig.2010.05.010

[10] K. J. Sreeram, C.P. Aby, B.U. Nair, T. Ramasami, Colored cool colorants based on rare earth metal ions, Sol. Energ. Mat. Sol. C. 92 (2008) 1462-1467.

DOI: 10.1016/j.solmat.2008.06.008
