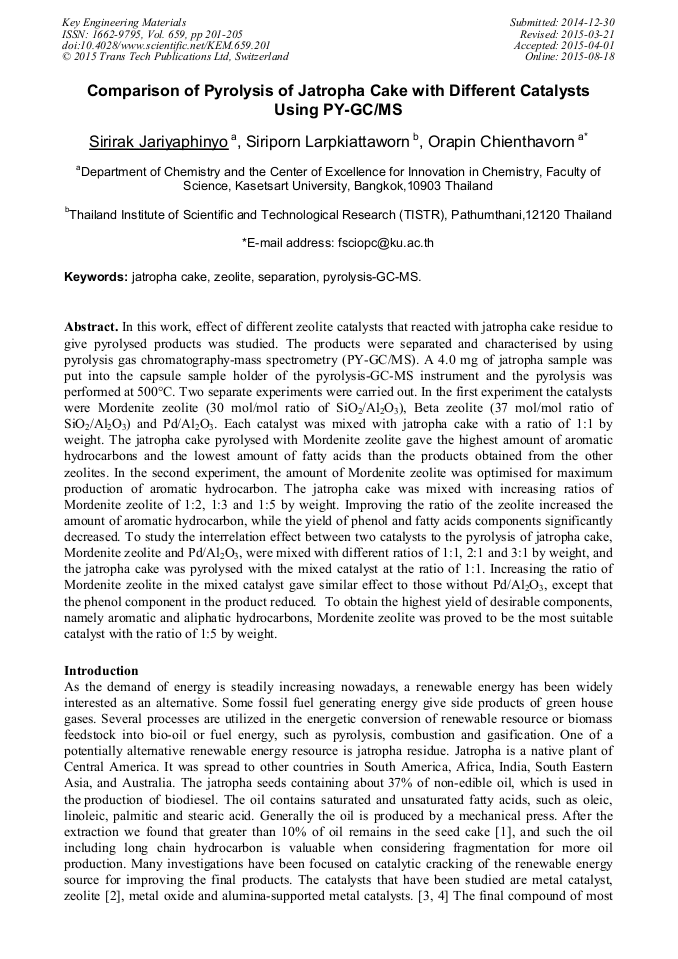

Comparison of Pyrolysis of Jatropha Cake with Different Catalysts Using PY-GC/MS

Abstract:

In this work, effect of different zeolite catalysts that reacted with jatropha cake residue to give pyrolysed products was studied. The products were separated and characterised by using pyrolysis gas chromatography-mass spectrometry (PY-GC/MS). A 4.0 mg of jatropha sample was put into the capsule sample holder of the pyrolysis-GC-MS instrument and the pyrolysis was performed at 500°C. Two separate experiments were carried out. In the first experiment the catalysts were Mordenite zeolite (30 mol/mol ratio of SiO₂/Al₂O₃), Beta zeolite (37 mol/mol ratio of SiO₂/Al₂O₃) and Pd/Al₂O₃. Each catalyst was mixed with jatropha cake with a ratio of 1:1 by weight. The jatropha cake pyrolysed with Mordenite zeolite gave the highest amount of aromatic hydrocarbons and the lowest amount of fatty acids than the products obtained from the other zeolites. In the second experiment, the amount of Mordenite zeolite was optimised for maximum production of aromatic hydrocarbon. The jatropha cake was mixed with increasing ratios of Mordenite zeolite of 1:2, 1:3 and 1:5 by weight. Improving the ratio of the zeolite increased the amount of aromatic hydrocarbon, while the yield of phenol and fatty acids components significantly decreased. To study the interrelation effect between two catalysts to the pyrolysis of jatropha cake, Mordenite zeolite and Pd/Al₂O₃, were mixed with different ratios of 1:1, 2:1 and 3:1 by weight, and the jatropha cake was pyrolysed with the mixed catalyst at the ratio of 1:1. Increasing the ratio of Mordenite zeolite in the mixed catalyst gave similar effect to those without Pd/Al₂O₃, except that the phenol component in the product reduced. To obtain the highest yield of desirable components, namely aromatic and aliphatic hydrocarbons, Mordenite zeolite was proved to be the most suitable catalyst with the ratio of 1:5 by weight.

• Periodical: Key Engineering Materials (Volume 659)
• Pages: 201-205
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.659.201
• Online since: August 2015
• Authors: Sirirak Jariyaphinyo, Siriporn Larpkiattaworn, Orapin Chienthavorn
• Keywords: Jatropha Cake, Pyrolysis-GC-MS, Separation, Zeolite

References

[1] N. Carels, Jatropha curcas: A Review, Advances in Botanical Research. 50 (2009) 39–86.

[2] S. Vichaphund, D. Aht-Ong, V. Srichareanchaikul, and D. Atong. 2014. Catalytic upgrading pyrolysis vapors of Jatropha waste using metal promoted ZSM-5 catalysts: An analytical Py-GC/MS, Renewable Energy, 65, 70-77.

DOI: 10.1016/j.renene.2013.07.016

[3] N. Laksmono, M. Paraschiv, K Loubar, and M. Tazerout, Biodiesel production from biomass gasification tar via thermal/catalytic cracking, Fuel Processing Technology. 106 (2013) 776–783.

DOI: 10.1016/j.fuproc.2012.10.016

[4] M. A. Gerber, Review of Novel Catalysts for biomass Tar Cracking and Methane Reforming, printed in the United States of America, (2007).

DOI: 10.2172/926121

[5] Information on http: /www. essentialchemicalindustry. org.

[6] B. K. Sharma, P. Sharma, ANALYTICAL CHEMISTRY, in: M. Sharma, A. Sharma (Eds. ), Antiknock compounds, KRISHNA Prakashan Medis (P) Ltd., Delhi, 2006, pp.67-68.

[7] Handbook of Industrial Chemistry and Biotechnlogy, in: J.A. Kent (Ed. ), Synthetic Organic Chemical, Springer Science+Business Media, New York, 2012, p.317.

[8] S. Chanchaturaphan., S. Larpkiattaworn., W. Khongwong., and O. Chienthavorn. 2013. Characterisation of Bio-oil Product from Pyrolysis of Jatropha Cake. The proceedings of Pure and Applied Chemistry International Conference (PACCON) 2013. January 23-25, 2013. (Accepted).

[9] P. J. Kunkeler, B. J. Zuurdeeg, J. C. van der Waal, J. A. van Bokhoven, D. C. Koningsberger, and H. van Bekkum, Zeolite Beta: The Relationship between Calcination Procedure, Aluminum Configuration, and Lewis Acidity, J. Catal. 180 (1998) 234–244.

DOI: 10.1006/jcat.1998.2273

[10] P. H. Howard, Handbook of environmental fate and exposure data, printed in the United States of America, (1990).

[11] T. Mochizuki, S.Y. Chen, M. Toba, and Y. Yoshimura, Pyrolyzer–GC/MS system-based analysis of the effects of zeolite catalysts on the fast pyrolysis of Jatropha husk, Appl. Catalyst. A-General. 456 (2013) 174– 181.

DOI: 10.1016/j.apcata.2013.02.022

[12] Y. Zheng, D. Chen, X. Zhu, Aromatic hydrocarbon production by the online catalytic cracking oflignin fast pyrolysis vapors using Mo2N/g-Al2O3, J. Anal. Appl. Pyrolysis. 104 (2013) 514–520.

DOI: 10.1016/j.jaap.2013.05.018

[13] P. S. Rezaei, H. Shafaghat, and W. M. Ashri Wan Daud, Production of green aromatics and olefins by catalytic cracking ofoxygenate compounds derived from biomass pyrolysis: A review, Appl. Catalyst. A-General. 469 (2014) 490– 511.

DOI: 10.1016/j.apcata.2013.09.036
