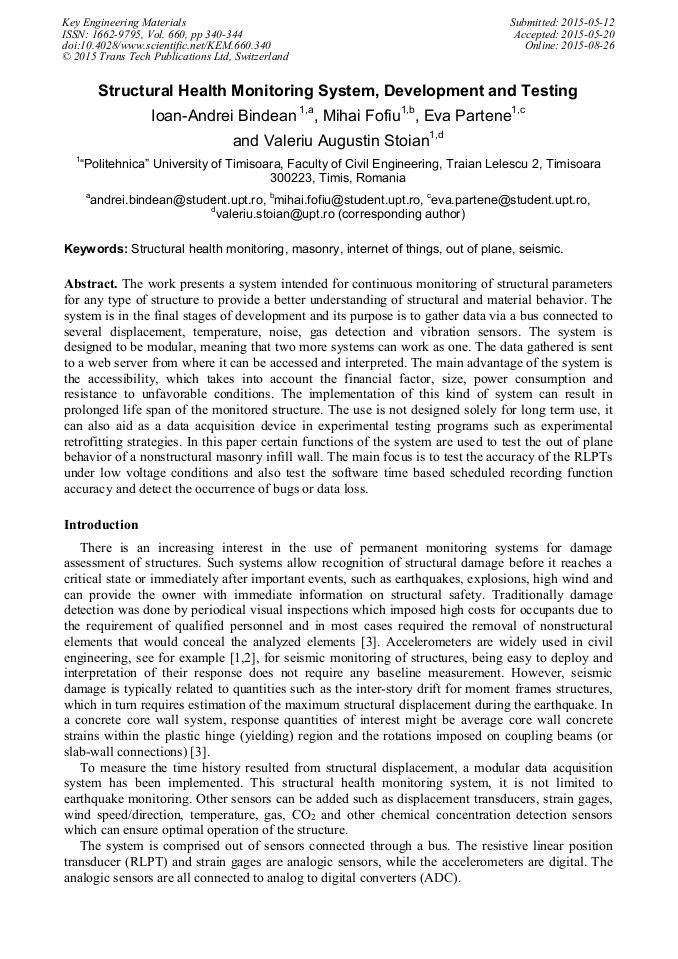

Structural Health Monitoring System, Development and Testing

Abstract:

The work presents a system intended for continuous monitoring of structural parameters for any type of structure to provide a better understanding of structural and material behavior. The system is in the final stages of development and its purpose is to gather data via a bus connected to several displacement, temperature, noise, gas detection and vibration sensors. The system is designed to be modular, meaning that two more systems can work as one. The data gathered is sent to a web server from where it can be accessed and interpreted. The main advantage of the system is the accessibility, which takes into account the financial factor, size, power consumption and resistance to unfavorable conditions. The implementation of this kind of system can result in prolonged life span of the monitored structure. The use is not designed solely for long term use, it can also aid as a data acquisition device in experimental testing programs such as experimental retrofitting strategies. In this paper certain functions of the system are used to test the out of plane behavior of a nonstructural masonry infill wall. The main focus is to test the accuracy of the RLPTs under low voltage conditions and also test the software time based scheduled recording function accuracy and detect the occurrence of bugs or data loss.

• Periodical: Key Engineering Materials (Volume 660)
• Pages: 340-344
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.660.340
• Online since: August 2015
• Authors: Ioan Andrei Bindean, Mihai Fofiu, Eva Partene, Valeriu Augustin Stoian*
• Keywords: Internet of Things, Masonry, Out of Plane, Seismic, Structural Health Monitoring

References

[1] D. Trapani, N. Biasi, M. De Cecco, D. Zonta Validation of MEMS acceleration measurements for seismic monitoring with LVDT and vision system, Environmental Energy and Structural Monitoring Systems, 2012, 104 – 109.

DOI: 10.1109/eesms.2012.6348394

[2] D. Losanno, J.M. Londono, M. Spizzuoco, Structural monitoring system for the management of emergency due to natural events, Environmental Energy and Structural Monitoring Systems, 1-6, (2013).

DOI: 10.1109/eesms.2013.6661703

[3] D.A. Skolnik, W.J. Kaiser, J.W. Wallace, Instrumentation for Structural Health Monitoring: Measuring Interstory Drift, Proceedings of the 14th World Conference on Earthquake Engineering, 2008, 1-7.

[4] G. P. Johnson, I. N. Robertson, Structural Health Monitoring Systems For Civil And Architectural Structures: Lvdt-Taut-Wire Baselines, Crack Monitoring Devices, & Strain Based Deflection Monitoring Algorithms, (2007).

[5] D. Stoian, V. Stoian, D. Dan, A Monitoring System as applied in a Passive House and a Near Zero Energy House, Buletinul AGIR, 2013, 150-153.

[6] C. Petrus, V. Stoian, M. Mosoarca, A. Anastasiadis, Reinforced Concrete Frames with Masonry Infills. Damages and Consolidation Measures, 2nd Conference for PhD students in Civil Engineering, 2014, 101-108.

[7] Information on http: /ww1. microchip. com/downloads/en/DeviceDoc/22088c. pdf.

[8] Information on http: /www. ntt. dk/ktc_brochure. pdf.
