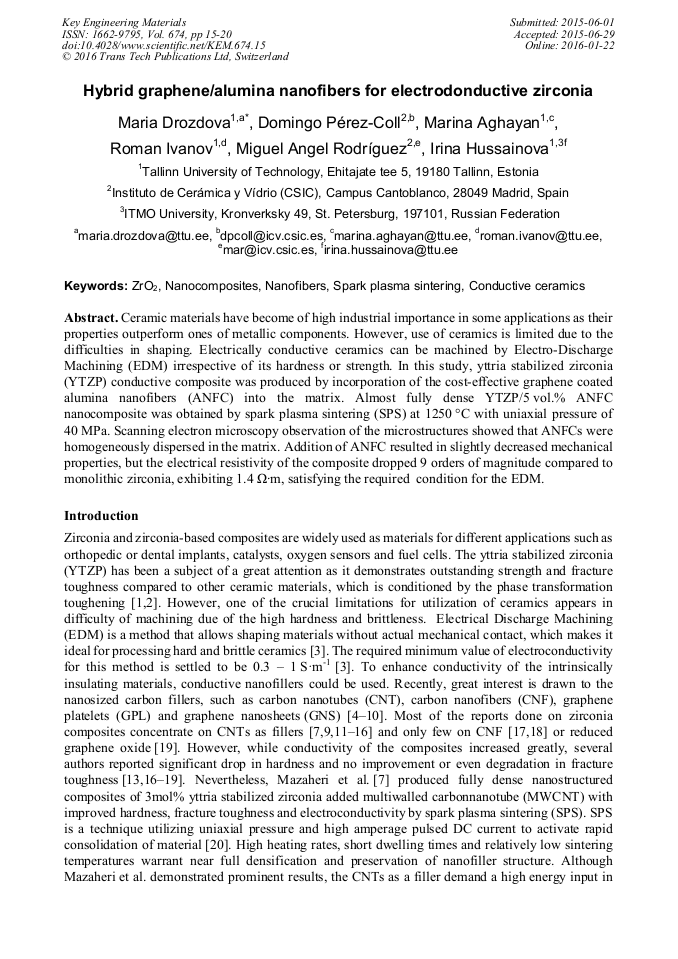

Hybrid Graphene/Alumina Nanofibers for Electrodonductive Zirconia

Abstract:

Ceramic materials have become of high industrial importance in some applications as their properties outperform ones of metallic components. However, use of ceramics is limited due to the difficulties in shaping. Electrically conductive ceramics can be machined by Electro-Discharge Machining (EDM) irrespective of its hardness or strength. In this study, yttria stabilized zirconia (YTZP) conductive composite was produced by incorporation of the cost-effective graphene coated alumina nanofibers (ANFC) into the matrix. Almost fully dense YTZP/5 vol.% ANFC nanocomposite was obtained by spark plasma sintering (SPS) at 1250 °C with uniaxial pressure of 40 MPa. Scanning electron microscopy observation of the microstructures showed that ANFCs were homogeneously dispersed in the matrix. Addition of ANFC resulted in slightly decreased mechanical properties, but the electrical resistivity of the composite dropped 9 orders of magnitude compared to monolithic zirconia, exhibiting 1.4 Ω∙m, satisfying the required condition for the EDM.

• Periodical: Key Engineering Materials (Volume 674)
• Pages: 15-20
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.674.15
• Online since: January 2016
• Authors: Maria Drozdova*, Domingo Pérez-Coll, Marina Aghayan, Roman Ivanov, Miguel A. Rodríguez, Irina Hussainova
• Keywords: Conductive Ceramics, Nanocomposites, Nanofibers, Spark Plasma Sintering, Zro₂

References

[1] P. Christel, A. Meunier, M. Heller, J.P. Torre, C.N. Peille, Mechanical properties and short-term in-vivo evaluation of yttrium-oxide-partially-stabilized zirconia, J. Biomed. Mater. Res. 23 (1989) 45–61.

DOI: 10.1002/jbm.820230105

[2] I. Hussainova, N. Voltšihhin, E. Cura, S.P. Hannula, Densification and characterization of spark plasma sintered ZrC-ZrO2 composites, Mater. Sci. Eng. A. 597 (2014) 75–81.

DOI: 10.1016/j.msea.2013.12.058

[3] O. Malek, J. González-Julián, J. Vleugels, W. Vanderauwera, B. Lauwers, M. Belmonte, Carbon nanofillers for machining insulating ceramics, Mater. Today. 14 (2011) 496–501.

DOI: 10.1016/s1369-7021(11)70214-0

[4] K. Hirota, Y. Takaura, M. Kato, Y. Miyamoto, Fabrication of carbon nanofiber(CNF)-dispersed Al2O3 composites by pulsed electric-current pressure sintering and their mechanical and electrical properties, J. Mater. Sci. 42 (2007) 4792–4800.

DOI: 10.1007/s10853-006-0830-0

[5] Y. Fan, L. Wang, J. Li, J. Li, S. Sun, F. Chen, et al., Preparation and electrical properties of graphene nanosheet/Al2O3 composites, Carbon N. Y. 48 (2010) 1743–1749.

DOI: 10.1016/j.carbon.2010.01.017

[6] F. Inam, H. Yan, D.D. Jayaseelan, T. Peijs, M.J. Reece, Electrically conductive alumina-carbon nanocomposites prepared by Spark Plasma Sintering, J. Eur. Ceram. Soc. 30 (2010) 153–157.

DOI: 10.1016/j.jeurceramsoc.2009.05.045

[7] M. Mazaheri, D. Mari, R. Schaller, G. Bonnefont, G. Fantozzi, Processing of yttria stabilized zirconia reinforced with multi-walled carbon nanotubes with attractive mechanical properties, J. Eur. Ceram. Soc. 31 (2011) 2691–2698.

DOI: 10.1016/j.jeurceramsoc.2010.11.009

[8] A. Centeno, V.G. Rocha, B. Alonso, A. Fernández, C.F. Gutierrez-Gonzalez, R. Torrecillas, et al., Graphene for tough and electroconductive alumina ceramics, J. Eur. Ceram. Soc. 33 (2013) 3201–3210.

DOI: 10.1016/j.jeurceramsoc.2013.07.007

[9] J. Yi, T. Wang, Z. Xie, W. Xue, Zirconia-based nanocomposite toughened by functionalized multi-wall carbon nanotubes, J. Alloys Compd. 581 (2013) 452–458.

DOI: 10.1016/j.jallcom.2013.06.169

[10] I. Hussainova, M. Drozdova, M. Aghayan, R. Ivanov, D. Pérez-Coll, Graphene Covered Alumina Nanofibers as Toughening Agent in Alumina Ceramics, Adv. Sci. Technol. 88 (2014) 49–53.

DOI: 10.4028/www.scientific.net/ast.88.49

[11] N. Garmendia, I. Santacruz, R. Moreno, I. Obieta, Zirconia-MWCNT nanocomposites for biomedical applications obtained by colloidal processing, J. Mater. Sci. Mater. Med. 21 (2010) 1445–1451.

DOI: 10.1007/s10856-010-4023-7

[12] M. Mazaheri, D. Mari, Z.R. Hesabi, R. Schaller, G. Fantozzi, Multi-walled carbon nanotube/nanostructured zirconia composites: Outstanding mechanical properties in a wide range of temperature, Compos. Sci. Technol. 71 (2011) 939–945.

DOI: 10.1016/j.compscitech.2011.01.017

[13] J. Sun, L. Gao, M. Iwasa, T. Nakayama, K. Niihara, Failure investigation of carbon nanotube/3Y-TZP nanocomposites, Ceram. Int. 31 (2005) 1131–1134.

DOI: 10.1016/j.ceramint.2004.11.010

[14] S.L. Shi, J. Liang, Effect of multiwall carbon nanotubes on electrical and dielectric properties of yttria-stabilized zirconia ceramic, J. Am. Ceram. Soc. 89 (2006) 3533–3535.

DOI: 10.1111/j.1551-2916.2006.01232.x

[15] N. Garmendia, S. Grandjean, J. Chevalier, L.A. Diaz, R. Torrecillas, I. Obieta, Zirconia-multiwall carbon nanotubes dense nano-composites with an unusual balance between crack and ageing resistance, J. Eur. Ceram. Soc. 31 (2011) 1009–1014.

DOI: 10.1016/j.jeurceramsoc.2010.12.029

[16] T. Ukai, T. Sekino, A.T. Hirvonen, N. Tanaka, T. Kusunose, T. Nakayama, et al., Preparation and Electrical Properties of Carbon Nanotubes Dispersed Zirconia Nanocomposites, Key Eng. Mater. 317-318 (2006) 661–664.

DOI: 10.4028/www.scientific.net/kem.317-318.661

[17] A. Duszová, J. Dusza, K. Tomášek, J. Morgiel, G. Blugan, J. Kuebler, Zirconia/carbon nanofiber composite, Scr. Mater. 58 (2008) 520–523.

DOI: 10.1016/j.scriptamat.2007.11.002

[18] J. Dusza, G. Blugan, J. Morgiel, J. Kuebler, F. Inam, T. Peijs, et al., Hot pressed and spark plasma sintered zirconia/carbon nanofiber composites, J. Eur. Ceram. Soc. 29 (2009) 3177–3184.

DOI: 10.1016/j.jeurceramsoc.2009.05.030

[19] J. Shin, S. Hong, Fabrication and properties of reduced graphene oxide reinforced yttria-stabilized zirconia composite ceramics, J. Eur. Ceram. Soc. 34 (2013) 1297–1302.

DOI: 10.1016/j.jeurceramsoc.2013.11.034

[20] M. Suárez, A. Fernández, J. Menéndez, Challenges and Opportunities for Spark Plasma Sintering: A Key Technology for a New Generation of Materials, in: B. Ertuğ (Ed. ), Sinter. Appl., InTech, 2013: p.319.

[21] M. Aghayan, I. Hussainova, M. Gasik, M. Kutuzov, M. Friman, Coupled thermal analysis of novel alumina nanofibers with ultrahigh aspect ratio, Thermochim. Acta. 574 (2013) 140–144.

DOI: 10.1016/j.tca.2013.10.010

[22] I. Hussainova, R. Ivanov, S.N. Stamatin, I. V. Anoshkin, E.M. Skou, A.G. Nasibulin, A few-layered graphene on alumina nanofibers for electrochemical energy conversion, Carbon N. Y. 88 (2015) 157–164.

DOI: 10.1016/j.carbon.2015.03.004

[23] A. Borrell, V.G. Rocha, R. Torrecillas, A. Fernández, Improvement of carbon nanofibers/ZrO 2 composites properties with a zirconia nanocoating on carbon nanofibers by sol-gel method, J. Am. Ceram. Soc. 94 (2011) 2048–(2052).

DOI: 10.1111/j.1551-2916.2010.04354.x

[24] F.J. Paneto, J.L. Pereira, J.O. Lima, E.J. Jesus, L. a. Silva, E. Sousa Lima, et al., Effect of porosity on hardness of Al2O3–Y3Al5O12 ceramic composite, Int. J. Refract. Met. Hard Mater. 48 (2015) 365–368.

DOI: 10.1016/j.ijrmhm.2014.09.010

[25] I. Hussainova, M. Drozdova, D. Pérez-Coll, M. Aghayan, R. Ivanov, M.A. Rodríguez, A novel approach to electroconductive ceramics filled by graphene covered nanofibers, RSC Adv., Submitted. (2015).

DOI: 10.1016/j.matdes.2015.10.148
