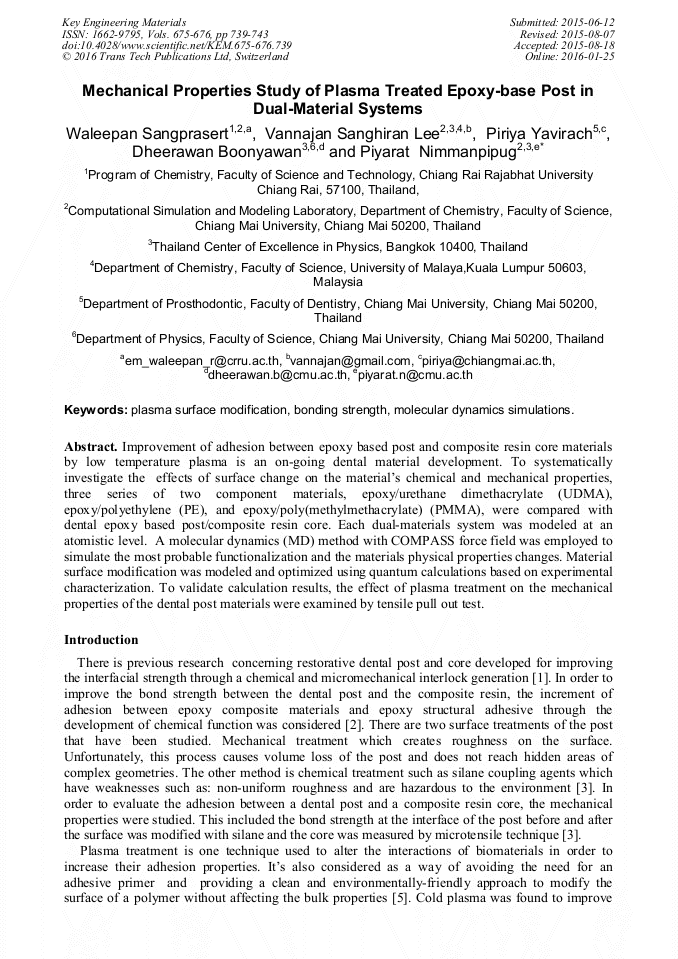

Mechanical Properties Study of Plasma Treated Epoxy-Base Post in Dual-Material Systems

Abstract:

Improvement of adhesion between epoxy based post and composite resin core materials by low temperature plasma is an on-going dental material development. To systematically investigate the effects of surface change on the material’s chemical and mechanical properties, three series of two component materials, epoxy/urethane dimethacrylate (UDMA), epoxy/polyethylene (PE), and epoxy/poly(methylmethacrylate) (PMMA), were compared with dental epoxy based post/composite resin core. Each dual-materials system was modeled at an atomistic level. A molecular dynamics (MD) method with COMPASS force field was employed to simulate the most probable functionalization and the materials physical properties changes. Material surface modification was modeled and optimized using quantum calculations based on experimental characterization. To validate calculation results, the effect of plasma treatment on the mechanical properties of the dental post materials were examined by tensile pull out test.

• Periodical: Key Engineering Materials (Volumes 675-676)
• Pages: 739-743
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.675-676.739
• Online since: January 2016
• Authors: Waleepan Sangprasert, Vannajan Sanghiran Lee, Piriya Yavirach, Dheerawan Boonyawan, Piyarat Nimmanpipug*
• Keywords: Bonding Strength, Molecular Dynamics Simulations, Plasma Surface Modification

References

[1] F. Monticelli, Dental materials and their clinical application, PhD Thesis, (2005).

[2] M.E.R. Shanahan, C. Bourgès-Monnier, Effects of plasma treatment on the adhesion of an epoxy composite, Int. J. Adh. Adh. 16 (1996) 129-135.

DOI: 10.1016/0143-7496(95)00028-3

[3] C. Goracci, O. Raffaelli, F. Monticelli, B. Balleri, E. Bertelli, M. Ferrari, The adhesion between prefabricated FRC posts and composite resin cores: microtensile bond strength with and without post-silanization, Dent. Mater. 21 (2005) 437-444.

DOI: 10.1016/j.dental.2004.07.012

[4] F. Monticelli, M. Toledano, F. R. Tay, A. H. Cury, C. Goracci, M. Ferrari, Post-surface conditioning improves interfacial adhesion in post/core restorations, Dent. Mater. 22(2006)602-609.

DOI: 10.1016/j.dental.2005.05.018

[5] Q. F. Wei, W. D. Gao, D. Y. Hou, X. Q. Wang, Surface modification of polymer nanofibres by plasma treatment, Appl. Surf. Sci. 245 (2005) 16-20.

DOI: 10.1016/j.apsusc.2004.10.013

[6] P. Yavirach, P. Chaijareenont, D. Boonyawan, K. Pattamapun, S. Tunma, H. Takahashi, M. Arksornnukit, Effects of plasma treatment on the shear bond strength between fiber-reinforced composite posts and resin composite for core build-up, Dent. Mater. J. 28 (2009).

DOI: 10.4012/dmj.28.686

[7] A. R. Browning, Utilization of molecular simulations in aerospace materials: simulation of thermoset resin/graphite interactions, the 2009 AIChE Annual Meeting, (2009).

[8] X. Ma, W. Zhu, J. Xiao, H. Xiao, Molecular dynamics study of the structure and performance of simple and double bases propellants, J. Hazard. Mater. 156 (2008) 201-207.

DOI: 10.1016/j.jhazmat.2007.12.068

[9] W. Sangprasert, P. Nimmanpipug, P. Yavirach, V.S. Lee, D. Boonyawan, Epoxy resin surface fucntionalization using atmospheric pressure plasma jet treatment, JJAP. 51 (2012) 01AJ04.

DOI: 10.1143/jjap.51.01aj04

[10] Materials Studio Release 5. 5, (2007).

[11] N. D. Theodorou, W. U. Suter, Atomistic modeling of mechanical properties of polymeric glasses, Macromol. 19 (1986) 139-154.

DOI: 10.1021/ma00155a022

[12] A. J. Wagner, D. H. Fairbrother, F. Reniers, A comparison of PE surfaces modified by plasma generated neutral nitrogen species and nitrogen ions, Plasmas Polym. 8 (2003)119-134.

[13] S. Alvarez-Blanco, S. Manolache, F. Denes, A novel plasma-enhanced way for surface functionalization of polymeric substrates, Polym. Bull. 47 (2001) 329-336.

DOI: 10.1007/s289-001-8189-4

[14] http: /www. matbase. com/material/polymers/commodity/hdpe/properties (August 4, 2011).

[15] Performance Pipe: A Division of Chevron Phillips Chemical Company LP, (2003).

[16] http: /www. ualberta. ca/~rj/phd-thesis/properties. html (August 4, 2011).

[17] T. Ioppolo, M. Kozhevnikov, V. Stepaniuk, M.V. Otugen, V. Sheverev, A micro-optical force sensor concept based on whispering gallery mode resonators, Appl. Opt. 47(2008) 3009-3014.

DOI: 10.1364/ao.47.003009

[18] I. Sideridou, V. Tserki, G. Papanastasiou, Effect of chemical structure on degree of conversion in light-cured dimethacrylate-based dental resins, Biomaterials 24 (2003) 655-665.

DOI: 10.1016/s0142-9612(01)00308-8

[19] G. Yang, S.Y. Fu, J.P. Yang, Cryogenic mechanical behaviors of epoxy resin modified by flexible diamine, Polymer (2007) 302-310.

[20] M.C. Dubourg, A. Chateauminois, B. Villechaise, In situ analysis and modeling of crack initiation within model fretting contacts using polymer materials, Tribol. Int. 36 (2003) 109-119.

DOI: 10.1016/s0301-679x(02)00137-8
