Resistance of Refractory Cement Composite to Cyclic Temperature Loading

Abstract:

The aim of this study was to describe mechanical properties decline and macroscopic changes after cyclic thermal load of refractory slabs. Investigated elements were made from refractory cement composite containing natural basalt aggregate, fine ceramic powder, aluminous cement with high volume of Al₂O₃, different dosage of basalt fibres, water and plasticizer. Slabs with dimension 300 x 200 x 38 mm were exposed to elevated temperature 600 °C for three hours (temperature gradient 10 °C/min) and cooled to laboratory condition. This loading cycle was repeated six times. Tensile characteristics were investigated by bending test with clear span of supports 200 mm. Maximum force and displacement increased with increasing amount of basalt fibres. Maximum flexural strength of slabs corresponded to material characteristics measured on specimens 40 x 40 x 160 mm. Slabs with 1% of basalt fibres achieved flexural strength 4.8 MPa (after six loading cycles). The highest weight decline took place after the first loading cycle. Successful design of original fibre-cement composite has been approved by cyclic loading of larger dimension specimens.

You might also be interested in these eBooks

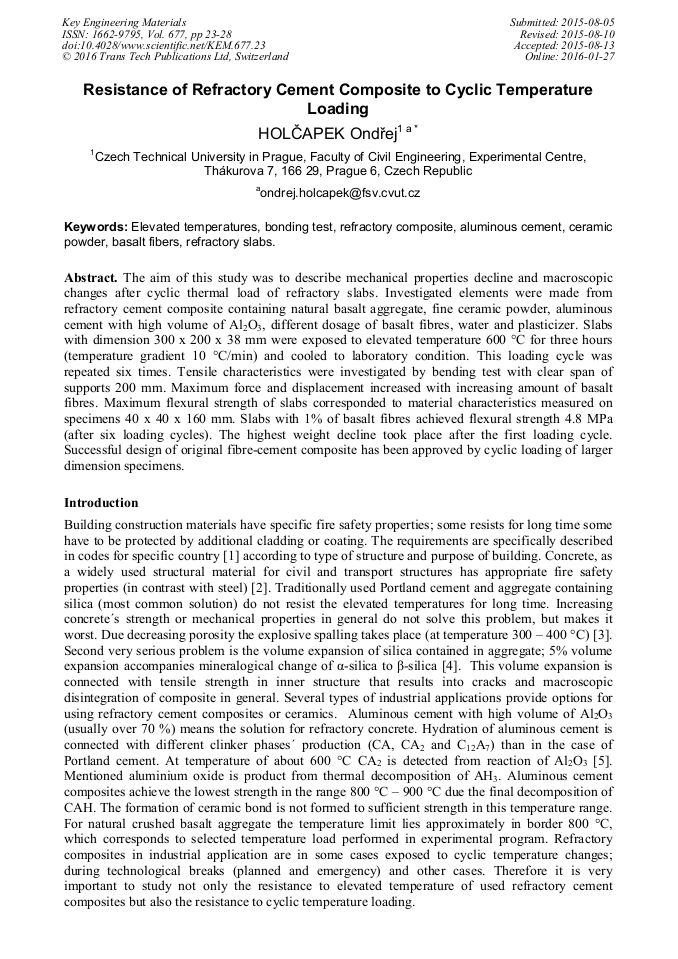

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 677)

Pages:

23-28

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.677.23

Citation:

Cite this paper

Online since:

January 2016

Authors:

Ondřej Holčapek*

Keywords:

Aluminous Cement, Basalt Fibers, Bonding Test, Ceramic Powder, Elevated Temperatures, Refractory Composite, Refractory Slabs

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] ČSN EN 13501-1 Fire classification of construction products and building elements – Part 1: Classification using test data from reaction to fire tests.

DOI: 10.3403/02521840

Google Scholar

[2] V. Kodur, Properties of Concrete at Elevated Temperatures, Hindawi Publishing Corporation, ISRN Civil Engineering 2014, 15 pages, doi: 10. 1155/2014/468510.

DOI: 10.1155/2014/468510

Google Scholar

[3] G. Peng, W. W. Yang, J. Zhao, Y. F. Liu, S. H. Bian, L. Zhao, Explosive spalling and residual mechanical properties of fiber-toughened high-performance concrete subjected to high temperature, Cement and Concrete Research 36 (2006) 723-727.

DOI: 10.1016/j.cemconres.2005.12.014

Google Scholar

[4] C. R. Cruz, M. Gillen, Thermal expansion of Portland cement paste, mortar and concrete at high temperatures, Fire and Materials (2004), pp.66-70.

DOI: 10.1002/fam.810040203

Google Scholar

[5] C. M. George, Structure and Performance of Cements, Appl. Science Publ., London (1983).

Google Scholar

[6] T. Pavlů, L. Boehme, P. Hájek, Influence of recycled aggregate quality on the mechanical properties of concrete, Komunikacie 16(4) (2014) 35-40.

Google Scholar

[7] J. Koťátková, P. Reiterman, Effects of different types of steel fibers on the mechanical properties of high strength concrete, Advance Materials Research 1054 (2014) pp.80-84.

DOI: 10.4028/www.scientific.net/amr.1054.80

Google Scholar

[8] E. Vejmelková, M. Čáchová, D. Koňáková, P. Reiterman, R. Černý, Lime plasters containing waste ceramic powder as partial replacement of siliceous aggregates, Advanced Materials Research 1035 (2014) 77-82.

DOI: 10.4028/www.scientific.net/amr.1035.77

Google Scholar

[9] P. Reiterman, O. Holčapek, K. Polozhiy, P. Konvalinka, Fracture properties of cement pastes modified by fine ground ceramic powder, Advanced Materials Research 1054 (2014) 182-187.

DOI: 10.4028/www.scientific.net/amr.1054.182

Google Scholar

[10] O. Holčapek, P. Reiterman, P. Konvalinka, High Temperature Composite of Aluminous Cement with Addition of Metakaolin and Ground Bricks Dust, Applied Mechanics and Materials 486 (2014) 406-411.

DOI: 10.4028/www.scientific.net/amm.486.406

Google Scholar

[11] O. Holčapek, P. Reiterman, P. Konvalinka, Fracture characteristics of refractory composites containing metakaolin and ceramic fibers, Advances in Mechanical Engineering 7(3) (2015), doi: 10. 1177/1687814015573619.

DOI: 10.1177/1687814015573619

Google Scholar

[12] S. W. Artementko, Polymer composite materials made from carbon, basalt and glass fibers, Structure and properties, Fiber chemistry 35 (2003) 226-229.

Google Scholar

[13] M. Jogl, P. Reiterman, O. Holčapek, J. Koťátková, Influence of high-temperature on polycarboxylate superplasticizer in aluminous cement based fibre composites, Advanced Materials Research 982 (2014) 125-129.

DOI: 10.4028/www.scientific.net/amr.982.125

Google Scholar
